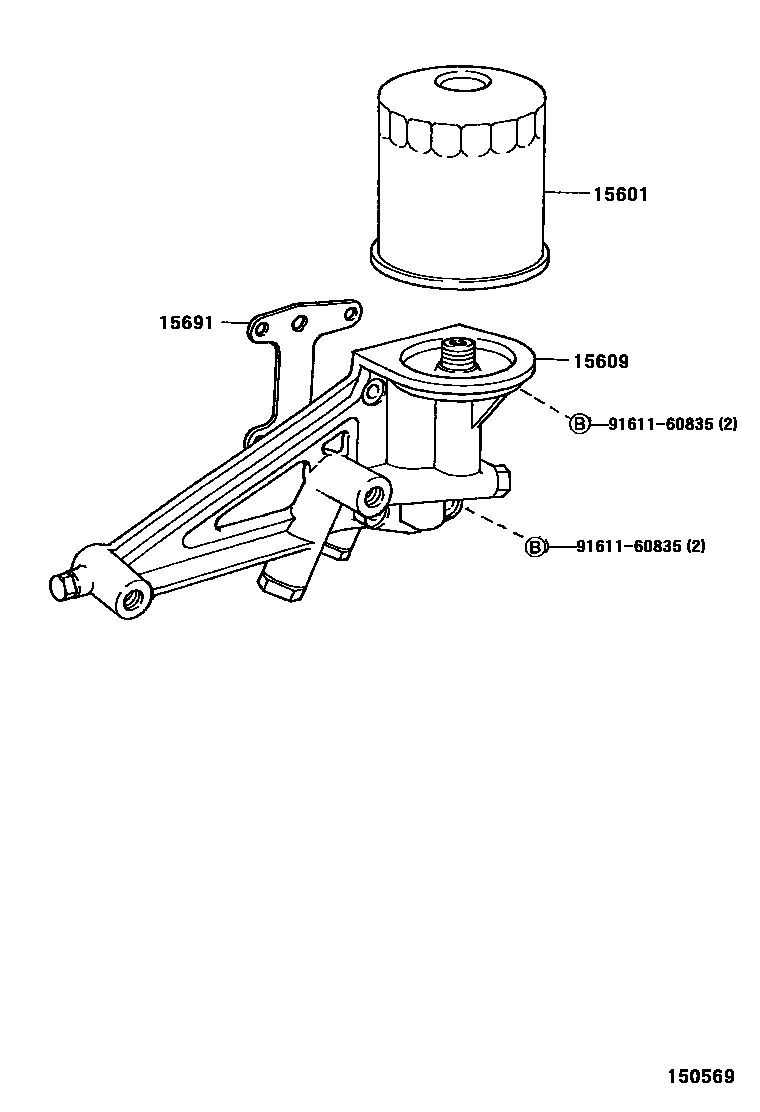

OIL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1

15601FILTER SUB-ASSY, OIL

main15600-41010i3F..FJ75199006-199208

sub90915-40002

main90915-03006i1HZ..HZJ7#199001-199106

sub90915-30002

main90915-30002i1PZ..PZJ7#199106-200408

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54120i2LTE..LJ7#199004-199305

main15609-61012i3F..FJ75199006-199208

15691GASKET, OIL FILTER

main15691-61010i3F..FJ75199006-199208

main15692-54030i2LTE..LJ7#199004-199305

sub15692-54050

main15725-17010i1HZ..HZJ7#199001-200408

9161160835

main91611-60835

4 parts on this diagram · 5 diagrams in section
