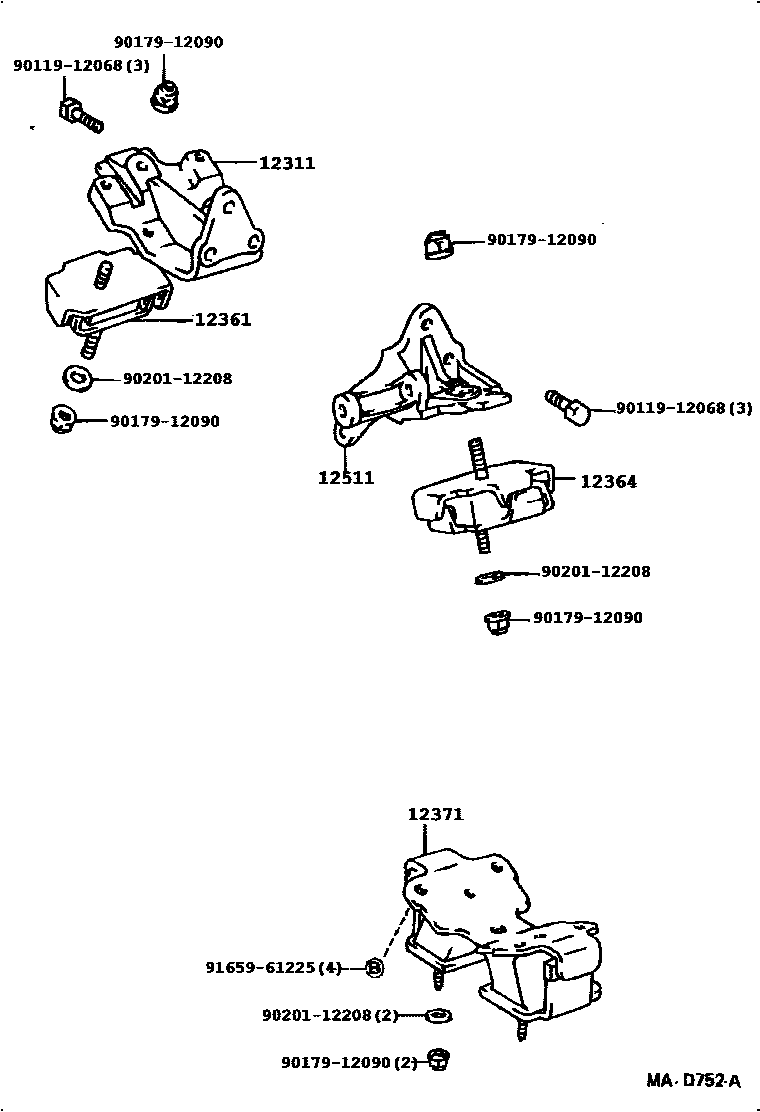

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-17020i1PZ..PZJ7#199001-200104

sub12311-17021

main12311-17021i1HZ..HZJ7#200104-200408

main12311-61090i3F..FJ75199006-199208

main12311-67020i1KZTE..KZJ7#199305-199604

sub12311-67021

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-17020i1HZ..HZJ7#199001-200408

main12361-54121i2LTE..LJ7#199004-199305

main12361-61050i3F..FJ75199006-199208

main12361-67020i1KZTE..KZJ7#199305-199604

12364INSULATOR, ENGINE MOUNTING, FRONT LH

main12362-61010i3F..FJ75199006-199208

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-17010i1HZ..HZJ7#..MTM199001-199908

main12371-17020i1HZ..HZJ73,77..ATM199001-199908

main12371-17030i1PZ..PZJ7#199001-199401

main12371-17080i1HZ..HZJ7#..MTM199908-200408

main12371-17110i1HZ..HZJ74,76..ATM199908-200408

main12371-54100i2LTE..LJ7#..MTM199004-199305

main12371-54110i2LTE..LJ7#..ATM199004-199305

sub12371-67030

main12371-61031i3F..FJ75199006-199208

main12371-67030i1KZTE..KZJ7#..ATM199305-199604

main12371-67041i1KZTE..KZJ7#..MTM199305-199604

12511BRACKET, ALTERNATOR, NO.1

main12511-17010i1PZ..PZJ7#199001-199410

sub12511-17011

main12511-17011i1HZ..HZJ7#199410-199510

sub12511-17012

main12511-17012i1HZ..HZJ7#199510-199801

sub12511-17013

main12511-17013i1HZ..HZJ7#199801-200408

main12511-61080i3F..FJ75199006-199208

main12511-67020i1KZTE..KZJ7#199305-199604

9011912068

main90119-12068

9017912090

main90179-12090

9020112208

main90201-12208

9165961225

main91659-61225

9 parts on this diagram · 6 diagrams in section
