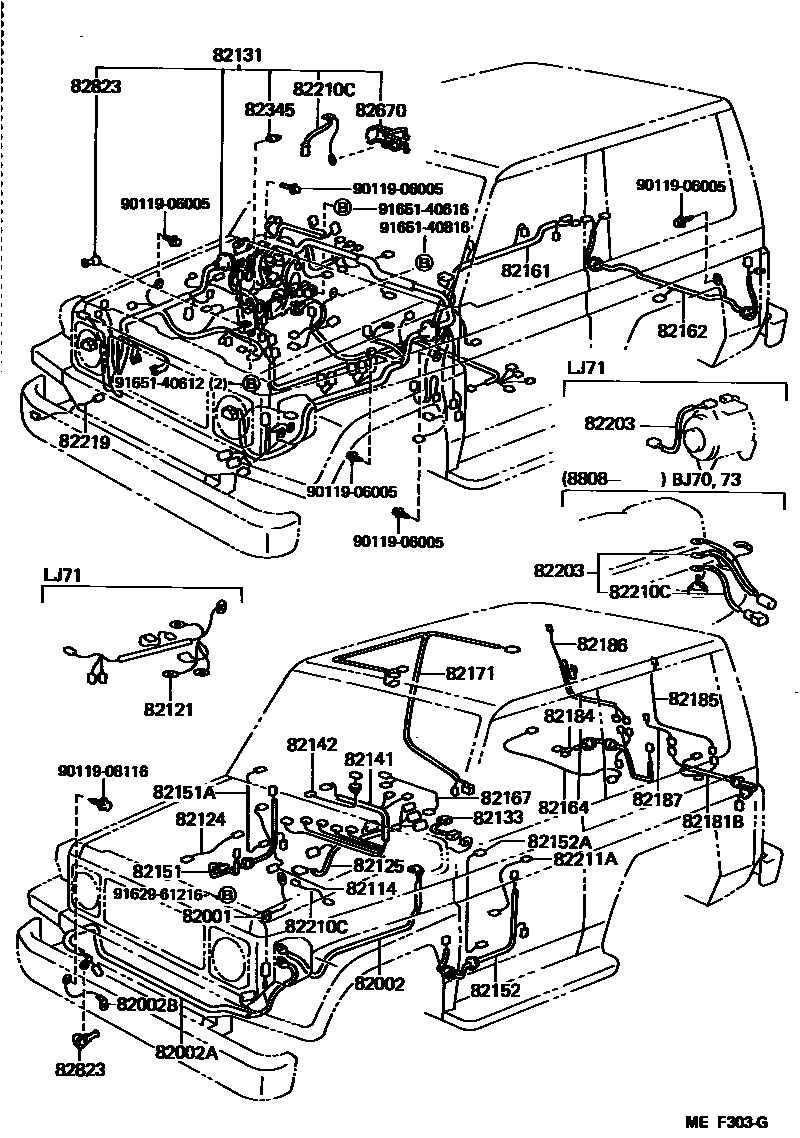

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1

82001CABLE, BOND, NO.1

main82123-90K05iLJ71198510-199001

main82123-90K07iBJ7#198411-199001

82002CABLE, BATTERY TO MAGNET SWITCH

main82275-90K02iBJ7#,LJ71198411-199001

82002ACABLE, MAGNET SWITCH TO WINCH

main82276-90K00iBJ7#,LJ71198411-199001

82002BCABLE, WINCH TO GROUND

main90980-07175iBJ7#,LJ71198411-199001

82114WIRE, ENGINE ROOM, NO.4

main82114-90K06iBJ7#..LX198608-199001

82121WIRE, ENGINE

main82121-90K01iLJ71198510-198607

main82121-90K03iLJ71198607-198708

main82121-90K04iLJ71198708-199001

82124WIRE, ENGINE, NO.4

main82124-90K01iLJ71198510-199001

82125WIRE, TRANSMISSION

main82125-90K00iLJ71198510-199001

main82125-90K04iBJ7#198411-198608

main82125-90K09iBJ71,74..MTM198510-199001

main82125-90K10iBJ74..ATM198510-199001

82131WIRE, COWL

main82131-90070iBJ70,73..STD198808-199001

main82131-90071iBJ70,73198808-199001

W/CLINOMETER OR THERMOMETER

main82131-90320iBJ70,73..STD198708-198808

main82131-90321iBJ70,73198708-198808

W/CLINOMETER OR THERMOMETER

main82131-90324iBJ71,74198708-199001

main82131-90325iBJ71,74198708-199001

COLD SPEC

main82131-90K07iBJ7#198411-198510

W/*FTY,*RW,*PW OR *SNR

main82131-90K31iBJ7#..HT198411-198510

main82131-90K48iLJ71198510-198608

main82131-90K88iBJ70,73..STD198510-198608

main82131-90K89iBJ70,73198510-198608

W/CLINOMETER OR THERMOMETER

main82131-90K92iBJ71,74198510-198608

main82131-90K93iBJ71,74198510-198608

COLD SPEC

main82131-90L15iLJ71198608-198708

main82131-90L52iBJ70,73..STD198608-198611

main82131-90L53iBJ70,73198608-198611

W/CLINOMETER OR THERMOMETER

main82131-90L56iBJ71,74198608-198708

main82131-90L57iBJ71,74198608-198708

COLD SPEC

main82131-90L59iBJ70,73..STD198611-198708

main82131-90L60iBJ70,73198611-198708

W/CLINOMETER OR THERMOMETER

main82131-90L82iLJ71198708-199001

82133WIRE, COWL, NO.3

main82133-90K00iBJ7#,LJ71198411-198708

82141WIRE, INSTRUMENT PANEL

main82141-90K07iBJ7#,LJ71198411-198708

W/*RWD,*RW OR CLOCK

main82141-90K08iBJ70,73..STD198411-198608

main82141-90K18iBJ70,73..STD198708-199001

W/CLOCK

main82141-90K19iBJ70,73..HT..STD198708-199001

W/*RWD OR W/*RWD & W/CLOCK

82142WIRE, INSTRUMENT PANEL, NO.2

main82142-90K00iBJ7#198411-198510

main82142-90K01iBJ7#,LJ71198510-198608

W/CLINOMETER

main82142-90K02iBJ7#,LJ71198510-198708

W/THERMOMETER

main82142-90K05iBJ7#,LJ71198708-199001

W/THERMOMETER

82151WIRE, FRONT DOOR, RH

main82152-90K00iBJ7#..LX198411-198510

main82152-90K01iBJ7#,LJ71..LX,LX5198510-198608

W/*PW & *FM

main82152-90K02iBJ7#,LJ71..LX,LX5198510-198708

W/*RCM OR *EL(W/O *PW)

main82152-90K03iBJ7#,LJ71..LX,LX5,SX5198510-198608

W/*RCM & *PW

main82152-90K04iBJ7#,LJ71..LX,LX5198708-199001

W/O *PW

main82152-90K05iBJ7#,LJ71..LX,SX5198708-199001

W/*PW

82151AWIRE, FRONT DOOR, NO.2, RH

main82151-90K04×2iBJ7#,LJ71..LX,LX5,SX5198608-199001

82152WIRE, FRONT DOOR, LH

main82151-90K00iBJ7#..LX198411-198510

main82151-90K01iBJ7#,LJ71..LX,LX5198510-198608

W/*PW & *FM

main82151-90K02iBJ7#,LJ71..LX,LX5198510-198708

W/*RCM OR *EL(W/O *PW)

main82151-90K03iBJ7#,LJ71..LX,SX5198608-198708

W/*RCM & *PW

main82151-90K08iBJ7#,LJ71..LX,LX5198708-199001

W/*RCM OR *EL(W/O *PW)

main82151-90K09iBJ7#,LJ71..LX,SX5198708-199001

W/*PW

82152AWIRE, FRONT DOOR, NO.2, LH

main82151-90K04iBJ7#,LJ71..LX,LX5,SX5198510-198608

82161WIRE, FLOOR

main82161-90K05iBJ73198411-198510

W/*RWD OR *RW

main82161-90K06iBJ73..STD198411-198510

main82161-90K14iBJ70198411-198510

main82161-90K20iBJ70,71,LJ71198510-198608

main82161-90K21iBJ70,71,LJ71198510-198708

W/SUN ROOF OR RR HEATER

main82161-90K26iBJ73,74198510-198608

main82161-90K27iBJ73,74198510-198708

W/RR HEATER

main82161-90K45iBJ70,71,LJ71198708-199001

W/SUN ROOF OR RR HEATER

main82161-90K46iBJ70,71,LJ71..LX,LX5,STD198708-199001

W/SUN ROOF

main82161-90K49iBJ73,74198708-199001

W/RR HEATER

82162WIRE, FLOOR, NO.2

main82162-90K04iBJ7#198411-198510

main82162-90K11iBJ7#..HT198411-198510

W/*RWD

main82162-90K18iBJ70,73..STD198510-198608

main82162-90K19iLJ71198510-198708

main82162-90K20iBJ7#198510-198608

W/*RWD

main82162-90K35iBJ70,73..STD198608-198708

main82162-90K41iBJ70,73..STD198708-199001

main82162-90K42iLJ71198708-199001

main82162-90K44iBJ7#..HT198708-199001

82164WIRE, FRAME

main82164-90K04iBJ7#..LX198608-199001

82167WIRE, SEAT, NO.1

main82167-90K00iLJ71..SX5198510-199001

82171WIRE, ROOF, NO.1

main82171-90K04iBJ70,71,LJ71..HT,WG198411-199001

main82171-90K05iBJ73,74198608-199001

main82172-90K01iBJ70..HT198411-198501

W/SUN ROOF

82181BWIRE, LUGGAGE ROOM, NO.3

main82183-90K00iBJ7#..HT198411-198510

W/*RWD

main82183-90K01iBJ7#198411-198510

main82183-90K04iBJ7#,LJ71..LX,LX5,STD198510-199001

main82183-90K05iBJ7#..LX198608-199001

W/*EL

main82183-90K06iLJ71..SX5198510-199001

main82183-90K07iBJ7#..HT198510-198510

W/*RWD

main82183-90K08iBJ7#198510-198510

82184WIRE, BACK DOOR, NO.1

main82184-90K00iBJ7#..HT198411-198510

W/*RW

main82184-90K01iBJ7#..HT198411-198510

W/*RWD

main82184-90K03iBJ70,73..HT..STD198608-199001

W/*RWD(W/O *RW)

main82184-90K04iBJ70,73..HT..STD198510-198608

W/*RWD(W/O *RW)

main82184-90K05iLJ71..SX5198510-199001

main82184-90K06iBJ7#..HT198510-198510

W/*RW

main82184-90K07iBJ7#..HT198510-198510

W/*RWD

82185WIRE, BACK DOOR, NO.2

main82185-90K00iBJ7#,LJ71..HT,WG198411-199001

82186WIRE, REAR WINDOW, NO.1

main82186-90K00iBJ7#,LJ71..HT,WG198411-199001

82187WIRE, REAR WINDOW, NO.2

main82187-90K00iBJ7#,LJ71198411-198608

82203WIRE SUB-ASSY, ALTERNATOR

main82114-90K00iLJ71198510-199001

main82114-90K07iBJ70,73198808-199001

82210CFUSIBLE LINK

main90982-08115iBJ71,74198510-199001

main90982-08206iBJ70,73198808-199001

main90982-08232iBJ7#,LJ71198510-198808

main90982-08233iBJ7#198411-198510

main90982-08236iBJ70,73198808-199001

BATTERY

82211AWIRE, REAR HEATER

main87484-90K00iBJ7#,LJ71198411-198701

82219WIRE, THERMO SENSOR

main82219-90K00iBJ7#198510-199001

W/WINCH

main82219-90K01iLJ71198510-199001

main82219-90K02iBJ7#198510-199001

W/WINCH

82345DIODE

main82345-12050×2iBJ7#,LJ71198411-199001

82670BLOCK ASSY, JUNCTION, NO.1

main82670-90K00iBJ7#,LJ71198411-198808

main82670-90K01iBJ70,73198808-199001

82823CAP, TERMINAL, NO.1

main82823-12020iBJ7#,LJ71198411-198808

ALTERNATOR

main82823-22060iBJ70,73198808-199001

ALTERNATOR

main82823-90300iBJ7#,LJ71198411-199001

MAGNET SW.(WINCH)

9011906005

main90119-06005

9011908116

main90119-08116

9162961216

main91629-61216

9165140612

main91651-40612

9165140616

main91651-40616

9165140816

main91651-40816

39 parts on this diagram · 4 diagrams in section
