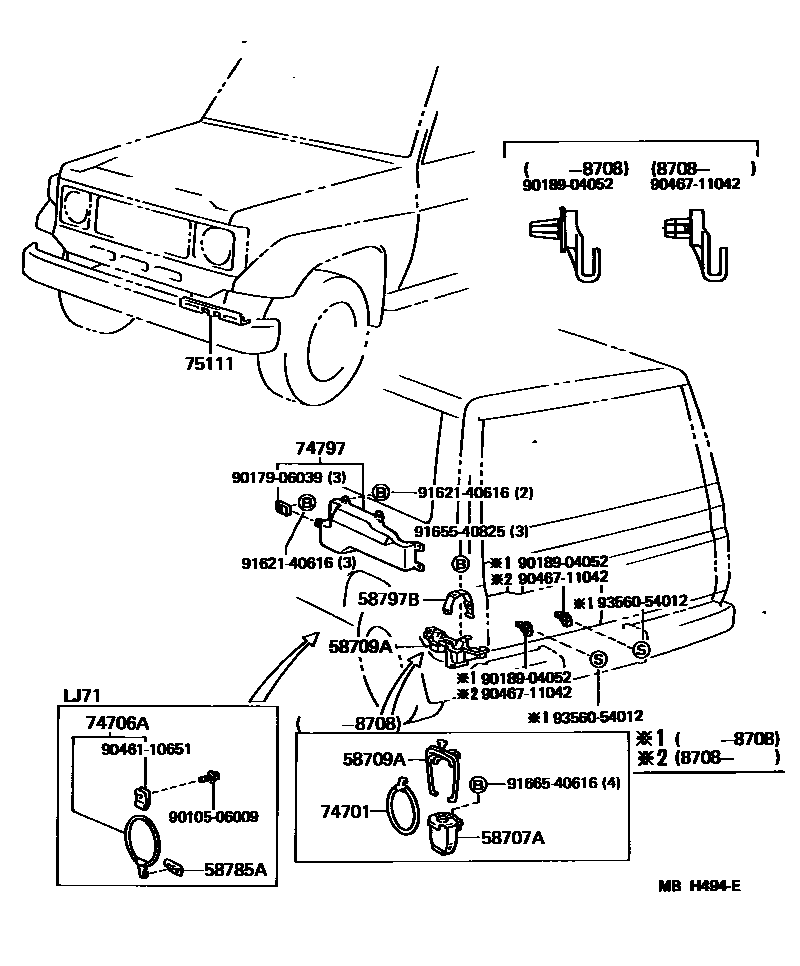

TOOL BOX & LICENSE PLATE BRACKET

58707AHOLDER SUB-ASSY, JACK

main58707-90K00iBJ7#,LJ71198411-198708

58709ACARRIER SUB-ASSY, JACK

main58708-90K00iBJ7#,LJ71198411-198708

main58709-90K01iBJ7#,LJ71198708-199001

sub58709-60010

58785ABRACKET, TOOL BAG BAND

main58785-90K00iLJ71198510-199001

58797BBAND, JACK CLAMP

main58797-90K01iBJ7#,LJ71198708-199001

sub58797-60010

74701CLAMP SUB-ASSY, TOOL BAG

main58705-90K00iBJ7#,LJ71198411-198708

74706ABAND SUB ASSY, WARNING REFLECTOR

main74706-90K00iLJ71198510-199001

74797BOX, WARNING REFLECTOR

main74797-90K00iBJ73,74198411-199001

75111BRACKET, FRONT LICENSE PLATE

main75111-60030iBJ7#,LJ71198411-198910

main75111-60050iBJ7#,LJ71198910-199001

9010506009

main90105-06009

9017906039

main90179-06039

9018904052

main90189-04052

9046110651

main90461-10651

9046711042

main90467-11042

9162140616

main91621-40616

9165540825

main91655-40825

9166540616

main91665-40616

9356054012

main93560-54012

17 parts on this diagram · 1 diagram in section
