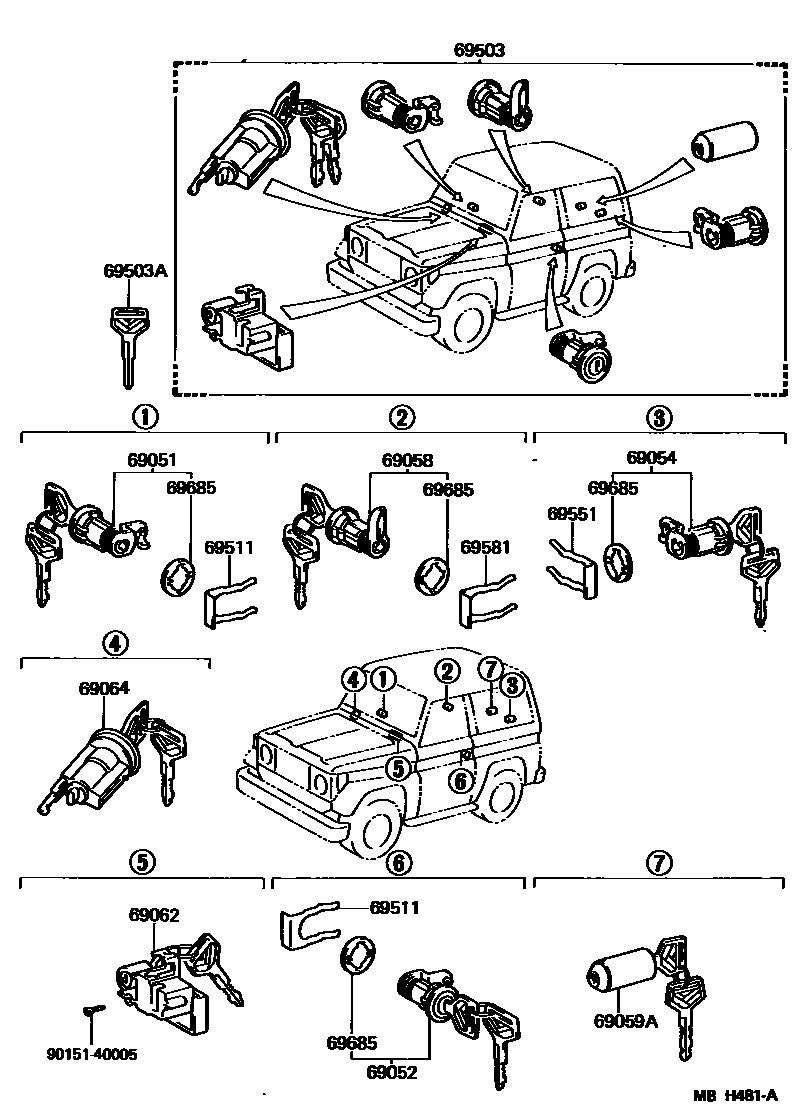

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-10080iBJ7#,LJ71¥3,540198411-198708

sub69051-10081¥3,580

main69051-90K07iBJ7#,LJ71¥3,540198708-199001

sub69051-10160¥3,680

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-10080iBJ7#,LJ71¥3,540198411-198708

sub69052-10081¥3,580

main69052-90K07iBJ7#,LJ71¥3,540198708-199001

sub69052-10160¥3,580

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69052-10080iBJ7#,LJ71¥3,540198411-199001

sub69052-10081¥3,580

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-16050iBJ7#,LJ71¥3,990198411-199001

sub69058-60040¥3,990

69059ACYLINDER & KEY SET, SPARE WHEEL LOCK

main69059-90K00iBJ7#,LJ71¥3,990198411-199001

sub69059-60050¥3,990

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-90K03-01iBJ70..SOT198411-199001

BLACK,BLACK

sub69056-60041¥6,700

sub69056-90K03¥5,100

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-90K03iBJ7#,LJ71..HT,WG¥7,100198411-198608

sub69057-90K02¥6,500

main69057-90K04iBJ70..SOT¥7,000198411-198608

main69057-90K09iBJ7#,LJ71..HT,WG¥7,100198608-199001

sub69057-60060¥7,100

main69057-90K10iBJ70..SOT¥7,100198608-199001

sub69057-60070¥7,100

69503CYLINDER SET, LOCK

main69005-90K01-01iBJ70..SOT198411-198608

BLACK,BLACK

sub69005-90K03¥22,900

main69005-90K04iBJ7#..HT¥19,800198411-198608

sub69005-90K06¥20,100

main69005-90K64-01iBJ70..SOT198411-198608

W/SPARE CARRIER KEY,BLACK,BLACK

sub69005-90K63¥26,600

main69005-90K70iBJ7#,LJ71..HT,WG¥23,000198411-198608

W/SPARE CARRIER KEY

sub69005-90K69¥22,900

main69005-90L58iBJ70,73..HT..STD¥18,200198608-199001

sub69005-60770¥18,700

main69005-90L59-01iBJ70..SOT198608-199001

BLACK,BLACK

sub69005-60710¥23,800

sub69005-90L59¥23,700

main69005-90L60iBJ7#,LJ71..HT,WG¥20,600198608-199001

W/SPARE CARRIER KEY

sub69005-60760¥21,200

main69005-90L64-01iBJ70..SOT198608-199001

W/SPARE CARRIER KEY,BLACK,BLACK

sub69005-60700¥26,500

sub69005-90L64¥26,400

69503AKEY, BLANK

main90999-00085iBJ7#,LJ71¥1,550198411-199001

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iBJ7#,LJ71¥160198411-199001

69551RETAINER, BACK DOOR LOCK CYLINDER

main69511-32010iBJ7#,LJ71¥160198411-199001

69581RETAINER, FUEL FILLER LID CYLINDER

main69512-87001iBJ7#,LJ71¥140198411-199001

69685PAD, LOCK CYLINDER

main69513-32010iBJ7#,LJ71¥120198411-199001

9015140005

main90151-40005¥90

14 parts on this diagram · 1 diagram in section
