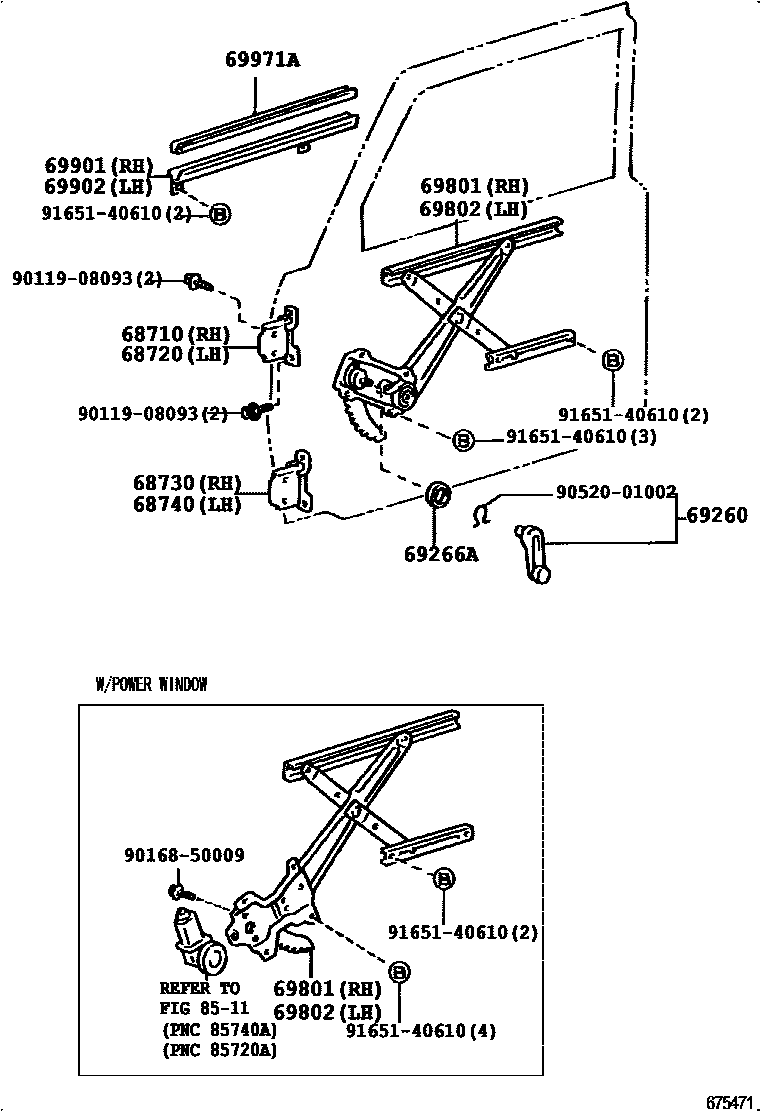

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14030iBJ7#,LJ71198411-199001

sub68710-60040

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14030iBJ7#,LJ71198411-199001

sub68720-60040

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-24010iBJ7#,LJ71198411-199001

sub68730-60020

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-24010iBJ7#,LJ71198411-199001

sub68740-60020

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-10iBJ7#,LJ71..LX,LX5,STD198411-199001

BROWN,SEPIA BROWN

sub69260-10040

sub69260-16010

main69260-10040-33iBJ7#198411-199001

GRAY,SHADOW GRAY

sub69260-10040

sub69260-16010

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69266-22010iBJ7#198411-199001

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-90K00iBJ7#,LJ71..LX,SX5198411-199001

W/*PW

sub69801-60020

main69810-90K00iBJ7#198411-199001

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-90K00iBJ7#,LJ71..LX,SX5198411-199001

W/*PW

sub69802-60020

main69820-90K00iBJ7#,LJ71..LX,LX5,STD198411-199001

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-90K00iBJ7#,LJ71198411-199001

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-90K01iBJ7#,LJ71198411-199001

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-90K00iBJ7#,LJ71198411-199001

8511

9011908093

main90119-08093

9016850009

main90168-50009

9052001002

main90520-01002

9165140610

main91651-40610

16 parts on this diagram · 1 diagram in section
