INSIDE TRIM BOARD

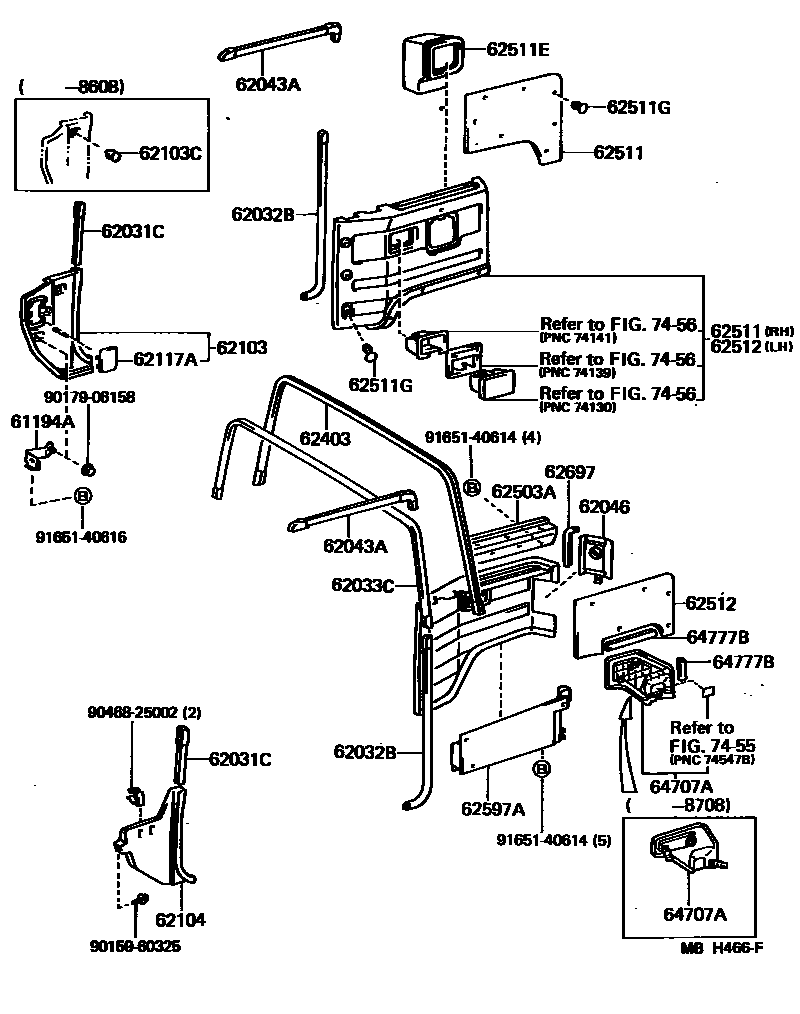

Parts diagram
61194ABRACKET, COWL SIDE TRIM, RH
main61194-90K00i198608-199001
62031CTRIM SUB-ASSY, FRONT DOOR OPENING, NO.1
main62031-90K00-03i198411-199001
GRAY,SHADOW GRAY
sub62031-90K00
main62031-90K00-06i198411-199001
BROWN,SEPIA BROWN
sub62031-90K00
62032BTRIM SUB-ASSY, FRONT DOOR OPENING, NO.2
main62032-90K00-03i198411-199001
GRAY,SHADOW GRAY
sub62032-90K00
main62032-90K00-06i198411-199001
BROWN,SEPIA BROWN
sub62032-90K00
62033CTRIM SUB-ASSY, FRONT DOOR OPENING, NO.3
main62033-90K01-08i198411-199001
IVORY,IVORY
main63331-90K00-08i198411-199001
IVORY,IVORY
sub63391-60050
62043ATRIM SUB-ASSY, FRONT DOOR OPENING, NO.4
main62043-90K00-08i198411-199001
RH,IVORY,IVORY
main62044-90K00-08i198411-199001
LH,IVORY,IVORY
62046COVER SUB-ASSY, QUARTER TRIM LID
main62046-90K00-03i198411-199001
GRAY,GRAY
sub62046-90K00
main62046-90K00-05i198411-199001
BEIGE,BEIGE
sub62046-90K00
main62046-90K01-03i198411-199001
GRAY,GRAY
sub62046-90K01
main62046-90K01-05i198411-199001
BEIGE,BEIGE
sub62046-90K01
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62101-90K01-03i198411-198608
GRAY,SHADOW GRAY
sub62101-90K07
sub61194-90K00
sub90179-06158
main62101-90K01-06i198411-198608
BROWN,SEPIA BROWN
sub62101-90K07
sub61194-90K00
sub90179-06158
main62101-90K06-03i198608-199001
W/*DL,GRAY,SHADOW GRAY
main62101-90K06-06i198608-199001
W/*DL,BROWN,SEPIA BROWN
main62101-90K07-03i198608-199001
GRAY,SHADOW GRAY
sub62101-90K07
main62101-90K07-06i198608-199001
BROWN,SEPIA BROWN
sub62101-90K07
62103CCLIP, COWL SIDE TRIM BOARD SET
main90467-09012-23i198411-198608
SHADOW GRAY
main90467-09012-36i198411-198608
SEPIA BROWN
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62102-90K02-03i198411-199001
GRAY,SHADOW GRAY
sub62102-90K02
main62102-90K02-06i198411-199001
BROWN,SEPIA BROWN
sub62102-90K02
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main62117-90K00-03i198411-199001
GRAY,SHADOW GRAY
sub62117-90K00
main62117-90K00-06i198411-199001
BROWN,SEPIA BROWN
sub62117-90K00
62403TRIM SUB-ASSY, ROLL OVER PANEL
main62403-90K00-08i198411-199001
IVORY,IVORY
62503ABRACKET SUB-ASSY, SIDE TRIM
main62503-90K00i198411-199001
62511BOARD, QUARTER INSIDE TRIM, RH
main62510-90K03-03i198411-199001
FR,GRAY,GRAY
sub62510-90K03
main62510-90K03-05i198411-199001
FR,BEIGE,BEIGE
sub62510-90K03
main62510-90K04-03i198411-199001
GRAY,GRAY
main62510-90K04-05i198411-199001
BEIGE,BEIGE
main62510-90K09-03i198411-199001
W/RR WIPER,GRAY,GRAY
main62510-90K09-05i198411-199001
W/RR WIPER,BEIGE,BEIGE
main62510-90K12-03i198411-199001
FR,GRAY,GRAY
sub62510-90K12
main62510-90K12-05i198411-199001
FR,BEIGE,BEIGE
sub62510-90K12
main62510-90K27-03i198510-199001
GRAY,GRAY
main62510-90K27-05i198510-199001
BEIGE,BEIGE
main62510-90K28-03i198510-199001
GRAY,GRAY
main62510-90K28-05i198510-199001
BEIGE,BEIGE
main62510-90K31-03i198609-198612
THE 40TH,GRAY,GRAY
main62510-90K31-05i198612-199001
THE 40TH,BEIGE,BEIGE
main62630-90K02-03i198411-199001
RR,W/RR WIPER,GRAY,GRAY
main62630-90K02-05i198411-199001
RR,W/RR WIPER,BEIGE,BEIGE
main62630-90K03-03i198411-199001
RR,GRAY,GRAY
main62630-90K03-05i198411-199001
RR,BEIGE,BEIGE
main62631-90K02-03i198411-199001
RR,GRAY,GRAY
main62631-90K02-05i198411-199001
RR,BEIGE,BEIGE
62511EPOCKET, QUARTER TRIM
main62607-90K00-03i198411-199001
GRAY,SHADOW GRAY
sub62607-90K00
main62607-90K00-06i198411-199001
BROWN,SEPIA BROWN
sub62607-90K00
62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)
main90467-10016-15i198411-199001
FR BEIGE,BEIGE
sub90467-10016
main90467-10016-33i198411-199001
FR GRAY,GRAY
sub90467-10016
main90467-12031-03i198411-199001
RR,GRAY,GRAY
sub90467-12031
main90467-12031-05i198411-199001
RR,BEIGE,BEIGE
sub90467-12031
62512BOARD, QUARTER INSIDE TRIM, LH
main62520-90K03-03i198411-199001
FR,GRAY,GRAY
sub62520-90K03
main62520-90K03-05i198411-199001
FR,BEIGE,BEIGE
sub62520-90K03
main62520-90K04-03i198411-198708
GRAY,GRAY
main62520-90K04-05i198411-198708
BEIGE,BEIGE
main62520-90K05-03i198411-199001
FR,GRAY,GRAY
sub62520-90K05
main62520-90K05-05i198411-199001
FR,BEIGE,BEIGE
sub62520-90K05
main62520-90K16-03i198510-198708
GRAY,GRAY
main62520-90K16-05i198510-198708
BEIGE,BEIGE
main62520-90K17-03i198510-198708
GRAY,GRAY
main62520-90K17-05i198510-198708
BEIGE,BEIGE
main62520-90K20-03i198609-198612
THE 40TH,GRAY,GRAY
main62520-90K20-05i198612-198708
THE 40TH,BEIGE,BEIGE
main62520-90K27-03i198708-199001
GRAY,GRAY
main62520-90K27-05i198708-199001
BEIGE,BEIGE
main62520-90K29-03i198708-199001
GRAY,GRAY
main62520-90K29-05i198708-199001
BEIGE,BEIGE
main62520-90K30-03i198708-199001
GRAY,GRAY
main62520-90K30-05i198708-199001
BEIGE,BEIGE
main62632-90K02-03i198411-198708
RR,GRAY,GRAY
main62632-90K02-05i198411-198708
RR,BEIGE,BEIGE
main62632-90K05-03i198708-199001
RR,GRAY,GRAY
sub62640-90K06
main62632-90K05-05i198708-199001
RR,BEIGE,BEIGE
sub62640-90K06
main62640-90K02-03i198411-198708
RR,GRAY,GRAY
main62640-90K02-05i198411-198708
RR,BEIGE,BEIGE
main62640-90K04-03i198708-199001
RR,GRAY,GRAY
main62640-90K04-05i198708-199001
RR,BEIGE,BEIGE
62597ABOX, SIDE TRIM
main62580-90K00i198411-199001
62697MOULDING, QUARTER TRIM LID
main62697-90K00-03i198411-199001
GRAY,SHADOW GRAY
sub62697-90K00
main62697-90K00-06i198411-199001
BROWN,SEPIA BROWN
sub62697-90K00
main62697-90K01-03i198411-199001
GRAY,SHADOW GRAY
sub62697-90K01
main62697-90K01-06i198411-199001
BROWN,SEPIA BROWN
sub62697-90K01
64707ACOVER SUB-ASSY, QUARTER TRIM TOOL
main64707-90K00-03i198411-198708
GRAY,GRAY
sub64707-90K00
main64707-90K00-05i198411-198708
BEIGE,BEIGE
sub64707-90K00
main64707-90K02-03i198708-199001
GRAY,GRAY
sub64707-60030
main64707-90K02-05i198708-199001
BEIGE,BEIGE
sub64707-60030
64777BPROTECTOR, QUARTER, INNER
main64777-90K00i198411-199001
L=318
main64778-90K00i198411-199001
L=150
sub64778-90K01
7455
7456
9015960325
main90159-60325
9017906158
main90179-06158
9046825002
main90468-25002
9165140614
main91651-40614
9165140616
main91651-40616

27 parts on this diagram · 4 diagrams in section
