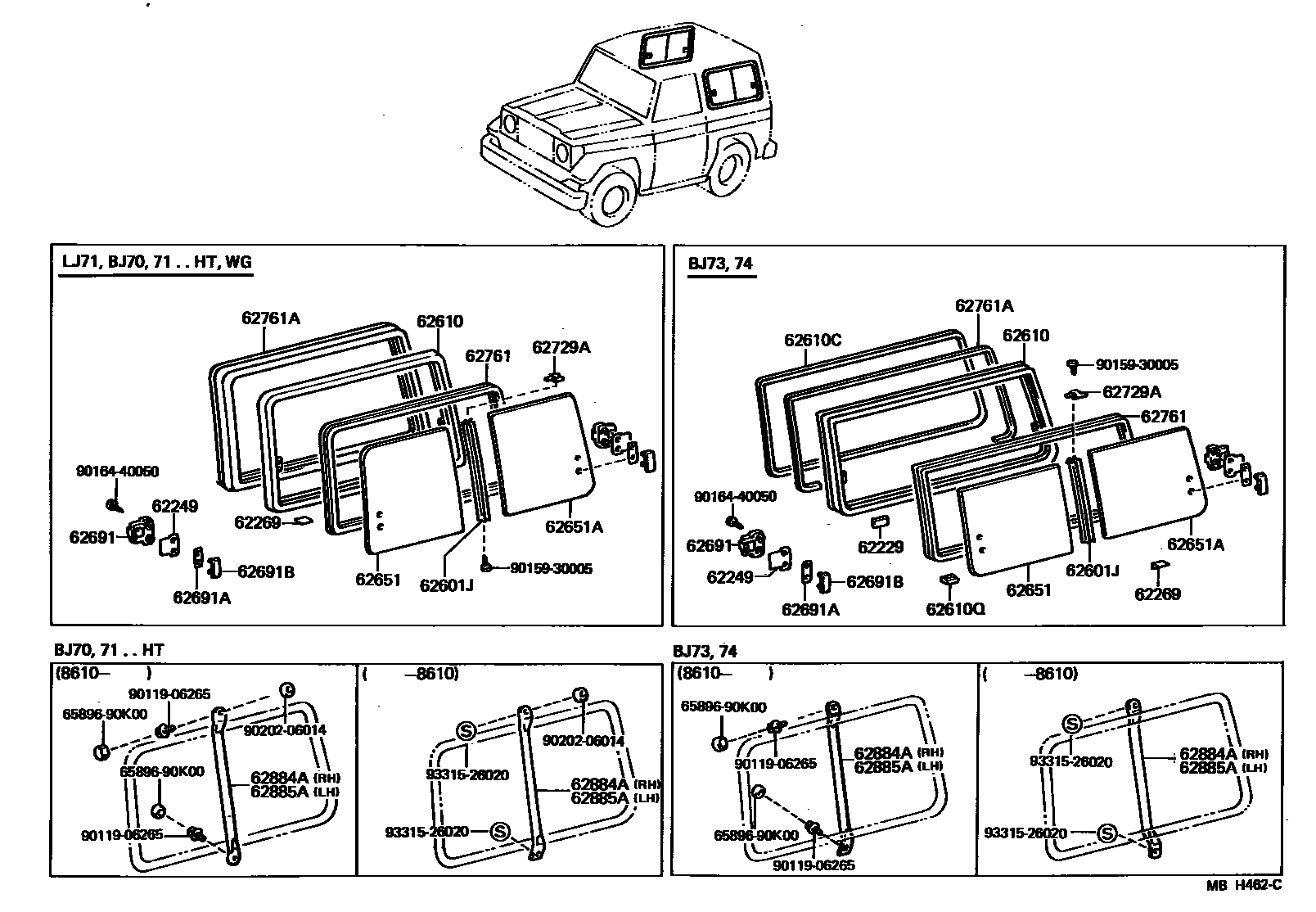

SIDE WINDOW

62229PACKING, SIDE WINDOW

main62229-95J00iBJ73,74198411-199001

62249PLATE, SIDE WINDOW, RH

main62249-95700iBJ7#,LJ71..HT,WG198411-199001

62269FILM, SIDE WINDOW FRAME, RH

main62269-90K01iBJ73198411-199001

62601JWEATHERSTRIP, SIDE WINDOW CENTER, NO.1

main67045-90K00iBJ70,71,LJ71..HT,WG198411-199001

RH

main67045-90K01iBJ73,74198411-199001

RH

main67046-90K00iBJ70,71,LJ71..HT,WG198411-199001

LH

main67046-90K01iBJ73,74198411-199001

LH

62610SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE)

main62705-90K00iBJ70,71,LJ71..HT,WG198411-199001

RH

sub62705-60031

main62705-90K01iBJ73,74198411-199001

RH

sub62705-60060

main62706-90K00iBJ70,71,LJ71..HT,WG198411-199001

LH

sub62706-60021

main62706-90K01iBJ73,74198411-199001

LH

sub62706-60060

62610CCLIP, SIDE WINDOW OUTER SASH, NO.1 (FOR SLIDE TYPE)

main62375-90K01iBJ73,74198411-199001

RH

main62376-90K00iBJ73,74198411-199001

LH

62610QSPACER, SIDE WINDOW FRAME

main62279-90K00iBJ73,74198411-199001

62651GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)

main62711-90K02iBJ70..HT198411-199001

sub62711-60380

main62711-90K03iBJ70,71,LJ71..LX,LX5198411-199001

sub62711-60380

main62711-90K05iBJ73,74198411-199001

sub62711-60400

main62711-90K08iLJ71..SX5198510-199001

main62712-90K02iBJ70..HT..STD198411-199001

sub62712-60310

main62712-90K03iBJ70..HT198411-199001

sub62712-60310

main62712-90K05iBJ73,74198411-199001

sub62712-60330

main62712-90K15iLJ71..SX5198510-199001

62651AGLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)

main62713-90K00iBJ70..HT..STD198411-199001

sub62713-60130

main62713-90K01iBJ70,71,LJ71..LX,LX5198411-199001

sub62713-60130

main62713-90K03iBJ73,74198411-199001

sub62713-60150

main62713-90K04iLJ71..SX5198510-199001

main62714-90K00iBJ70..HT198411-199001

sub62714-60120

main62714-90K01iBJ70..HT198411-199001

sub62714-60120

main62714-90K03iBJ73,74198411-199001

sub62714-60140

main62714-90K10iLJ71..SX5198510-199001

62691LOCK, SIDE WINDOW, NO.1 GLASS (FOR SLIDE TYPE)

main62910-95703iBJ7#,LJ71..HT,WG198411-199001

62691APACKING, SIDE WINDOW LOCK, NO.1

main62792-95A00iBJ7#,LJ71..HT,WG198411-199001

62691BRETAINER, SIDE WINDOW LOCK, NO.1

main62793-95704iBJ7#,LJ71..HT,WG198512-199001

main62793-95J00iBJ7#,LJ71..HT,WG198411-198512

62729APAD, WINDOW CENTER SASH

main62729-90K00iBJ70,71,LJ71..HT,WG198411-199001

main62729-90K01iBJ73,74198411-199001

62761RUN, SIDE WINDOW, NO.1(FOR SLIDE TYPE)

main62755-90K00iBJ70,71,LJ71..HT,WG198411-199001

RH

sub62755-60050

main62755-90K01iBJ73,74198411-199001

RH

sub62755-60040

main62756-90K00iBJ70,71,LJ71..HT,WG198411-199001

LH

sub62756-60050

main62756-90K01iBJ73,74198411-199001

LH

sub62756-60040

62761AWEATHERSTRIP, SIDE WINDOW, NO.1(FOR SLIDE TYPE)

main62741-90K01iBJ70,71,LJ71..HT,WG198411-199001

RH

sub62741-60100

main62742-90K01iBJ70,71,LJ71..HT,WG198411-199001

LH

sub62742-60090

main62793-90K00iBJ73,74198411-199001

RH

main62794-90K00iBJ73,74198411-199001

LH

62884AGUARD, QUARTER WINDOW, RH

main62884-90K00iBJ73,74198411-199001

main62884-90K01iBJ70,71..HT198411-199001

62885AGUARD, QUARTER WINDOW, LH

main62884-90K00iBJ73,74198411-199001

main62884-90K01iBJ70,71..HT198411-199001

6589690K00CAP, SET BOLT

main65896-90K00

9011906265

main90119-06265

9015930005

main90159-30005

9016440050

main90164-40050

9020206014

main90202-06014

9331526020

main93315-26020

23 parts on this diagram · 1 diagram in section
