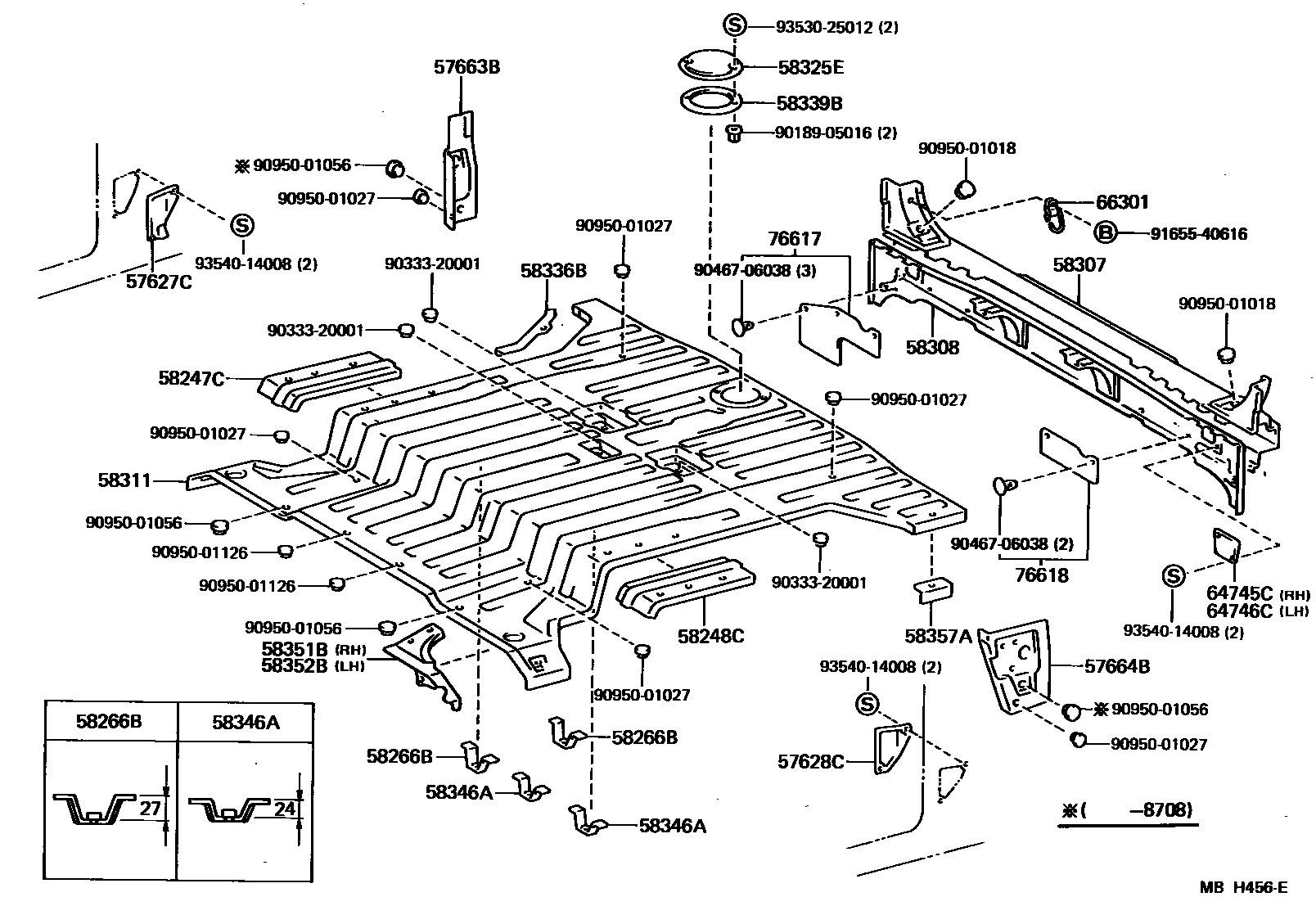

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

57627CCOVER, REAR FLOOR SIDE MEMBER, RH

main57627-90K00iBJ70,71,LJ71198411-199001

sub57627-60020

main57627-90K01iBJ73,74198411-199001

sub57627-60030

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-90K00iBJ70,71,LJ71198411-199001

main57628-90K01iBJ73,74198411-199001

57663BPANEL, REAR FLOOR SIDE, REAR RH

main57663-90K00iBJ7#,LJ71198411-199001

sub57663-60050

57664BPANEL, REAR FLOOR SIDE, REAR LH

main57664-90K00iBJ7#,LJ71198411-198708

main57664-90K02iBJ7#,LJ71198708-199001

58247CREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-90K00iBJ70,71,LJ71198411-199001

58248CREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58248-90K02iBJ70,71,LJ71198411-199001

58266BBRACKET, FUEL TUBE CLAMP

main58266-90K00iBJ7#,LJ71198411-199001

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-90K01iBJ7#198411-198608

main58307-90K11iBJ7#,LJ71..LX,LX5,SX5198510-198608

sub58307-90K17

main58307-90K17iBJ7#,LJ71198608-199001

sub58307-60090

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-90K00iBJ7#,LJ71198411-199001

58311PAN, REAR FLOOR

main58311-90K01iBJ70,71198411-199001

main58311-90K02iLJ71198510-199001

sub58311-60160

main58311-90K03iBJ73,74198411-199001

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-90K00iBJ7#,LJ71198411-199001

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-90K00iBJ7#,LJ71198411-199001

58339BPACKING, REAR FLOOR SERVICE HOLE

main58339-90K00iBJ7#,LJ71198411-199001

58346ABRACKET, REAR FLOOR HEAT INSULATOR, NO.2

main58346-90K00iBJ7#,LJ71198411-199001

58351BREINFORCEMENT, REAR FLOOR PANEL, RH

main58351-90K00iBJ70,71,LJ71198411-199001

58352BREINFORCEMENT, REAR FLOOR PANEL, LH

main58352-90K00iBJ70,71,LJ71198411-199001

58357AREINFORCEMENT, JACK CARRIER

main58357-90K00iBJ7#,LJ71198411-198708

main58357-90K01iBJ7#,LJ71198708-199001

64745CCOVER, LOWER BACK SERVICE HOLE, RH

main64745-90K00iBJ7#,LJ71198411-199001

64746CCOVER, LOWER BACK SERVICE HOLE, LH

main64746-90K00iBJ7#,LJ71198411-199001

66301HOOK SUB-ASSY, ROPE

main66301-90K00iBJ7#,LJ71..LX,LX5,SX5198510-198608

sub66301-90K02

main66301-90K02iBJ7#,LJ71198608-199001

76617MUDGUARD, LOWER BACK PANEL, FRONT RH

main76617-90K00iBJ7#,LJ71198411-198606

sub76617-90K01

main76617-90K01iBJ7#,LJ71198606-199001

76618MUDGUARD, LOWER BACK PANEL, FRONT LH

main76618-90K00iBJ7#,LJ71198411-198606

sub76618-90K01

main76618-90K01iBJ7#,LJ71198606-199001

9018905016

main90189-05016

9033320001

main90333-20001

9046706038

main90467-06038

9095001018

main90950-01018

9095001027

main90950-01027

9095001056

main90950-01056

9095001126

main90950-01126

9165540616

main91655-40616

9353025012

main93530-25012

9354014008

main93540-14008

32 parts on this diagram · 2 diagrams in section
