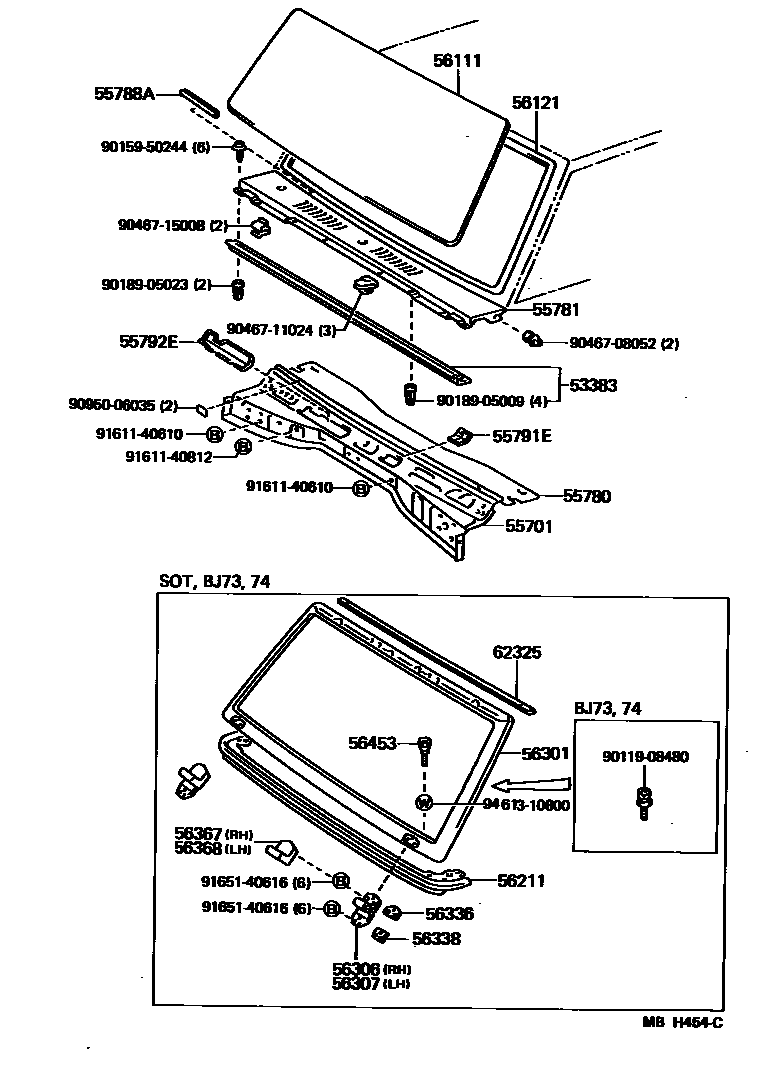

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-90K00iBJ7#,LJ71198411-199001

sub53383-60040

55701PANEL SUB-ASSY, COWL

main55700-90K34iBJ70,71,LJ71..HT,WG198411-199001

main55700-90K48iBJ70..SOT198411-199001

55780INSULATOR ASSY, COWL TOP

main55780-90K00iBJ7#,LJ71198411-199001

55781LOUVER, COWL VENTILATOR

main55781-90K00iBJ70,71,LJ71..HT,WG198411-199001

sub55781-60040

main55781-90K01iBJ70..SOT198411-199001

sub55781-60050

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-90K00×2iBJ70..HT198411-198506

main55788-90K01×2iBJ73;BJ70..SOT198411-198506

55791ECOVER, HEATER DUCT HOLE

main55791-90K00iBJ7#,LJ71198411-199001

55792ECOVER, HEATER AIR DUCT HOLE, NO.2

main55792-90K00iBJ7#,LJ71198411-199001

56111GLASS, WINDSHIELD

main56111-90K00iBJ70..HT198411-198510

main56111-90K01iBJ70..HT198411-198510

main56111-90K02iBJ70..HT..STD198608-199001

sub56111-60220

main56111-90K03iBJ70,71,LJ71..LX,LX5198510-199001

sub56111-60220

main56111-90K05iBJ70..SOT198411-198510

main56111-90K06iBJ73198411-198510

main56111-90K07iBJ73198510-198608

sub56111-60230

main56111-90K08iBJ73,74..LX198510-199001

sub56111-60230

main56111-90K14iLJ71..SX5198510-199001

56121WEATHERSTRIP, WINDSHIELD

main56121-90K00iBJ70..HT..STD198510-199001

sub56121-60120

main56121-90K01iBJ70..SOT198411-199001

main56121-90K02iBJ70,71,LJ71..LX,LX5,SX5198510-199001

sub56121-60130

main56121-90K03iBJ70..SOT198411-198510

W/MOULDING

56211SPACER, WINDSHIELD

main56211-90K00iBJ70..SOT198411-199001

56301FRAME SUB-ASSY, WINDSHIELD

main56301-90K00iBJ70..SOT198411-198510

main56301-90K02iBJ73198411-198510

main56301-90K06iBJ70..SOT198510-198708

main56301-90K08iBJ73,74198510-198708

main56301-90K12iBJ70..SOT198708-199001

main56301-90K14iBJ73,74198708-199001

sub56301-60140

sub90333-15002

56306HINGE SUB-ASSY, WINDSHIELD SUPPORT, RH

main56306-90K00iBJ70..SOT198411-199001

56307HINGE SUB-ASSY, WINDSHIELD SUPPORT, LH

main56307-90K00iBJ70..SOT198411-199001

56336PACKING, WINDSHIELD SUPPORT HINGE, UPPER

main56336-90K00×2iBJ70..SOT198411-198909

main56336-90K01×2iBJ70..SOT198909-199001

56338PACKING, WINDSHIELD SUPPORT HINGE, LOWER

main56338-90K00×2iBJ70..SOT198411-198909

main56338-90K01×2iBJ70..SOT198909-199001

56367COVER, WINDSHIELD SUPPORT HINGE, RH

main56367-90K00iBJ70..SOT198411-199001

sub56367-60010

56368COVER, WINDSHIELD SUPPORT HINGE, LH

main56368-90K00iBJ70..SOT198411-199001

sub56368-60010

56453HANDLE, WINDSHIELD CATCH

main56453-90K00×2iBJ70..SOT198411-199001

62325TRIM, WINDSHIELD FRAME

main63304-90K00-08iBJ70..SOT198411-199001

IVORY,IVORY

9011908480

main90119-08480

9015950244

main90159-50244

9018905009

main90189-05009

9018905023

main90189-05023

9046708052

main90467-08052

9046711024

main90467-11024

9046715008

main90467-15008

9095006035

main90950-06035

9161140610

main91611-40610

9161140812

main91611-40812

9165140616

main91651-40616

9461310800

main94613-10800

31 parts on this diagram · 1 diagram in section
