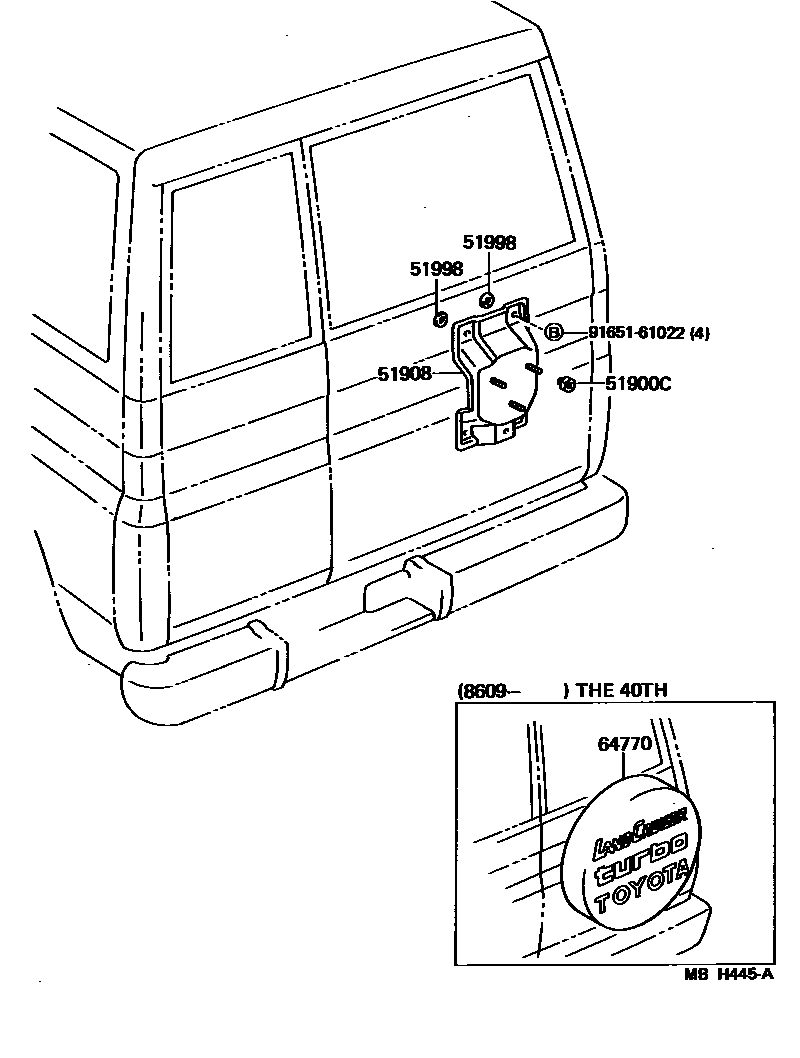

SPARE WHEEL CARRIER

51900CNUT, SPARE WHEEL, HUB

main90942-01007×3iBJ7#,LJ71198411-199001

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-90K01iBJ7#,LJ71198411-198511

main51908-90K05iBJ7#,LJ71198511-199001

sub51908-60070

51998PAD, SPARE WHEEL BRACKET

main51998-90K00×4iBJ7#,LJ71198411-198909

main51998-90K01×4iBJ7#,LJ71198909-199001

64770COVER ASSY, SPARE WHEEL

main64771-60090iLJ71..SX5198609-199001

THE 40TH

9165161022

main91651-61022

5 parts on this diagram · 1 diagram in section
