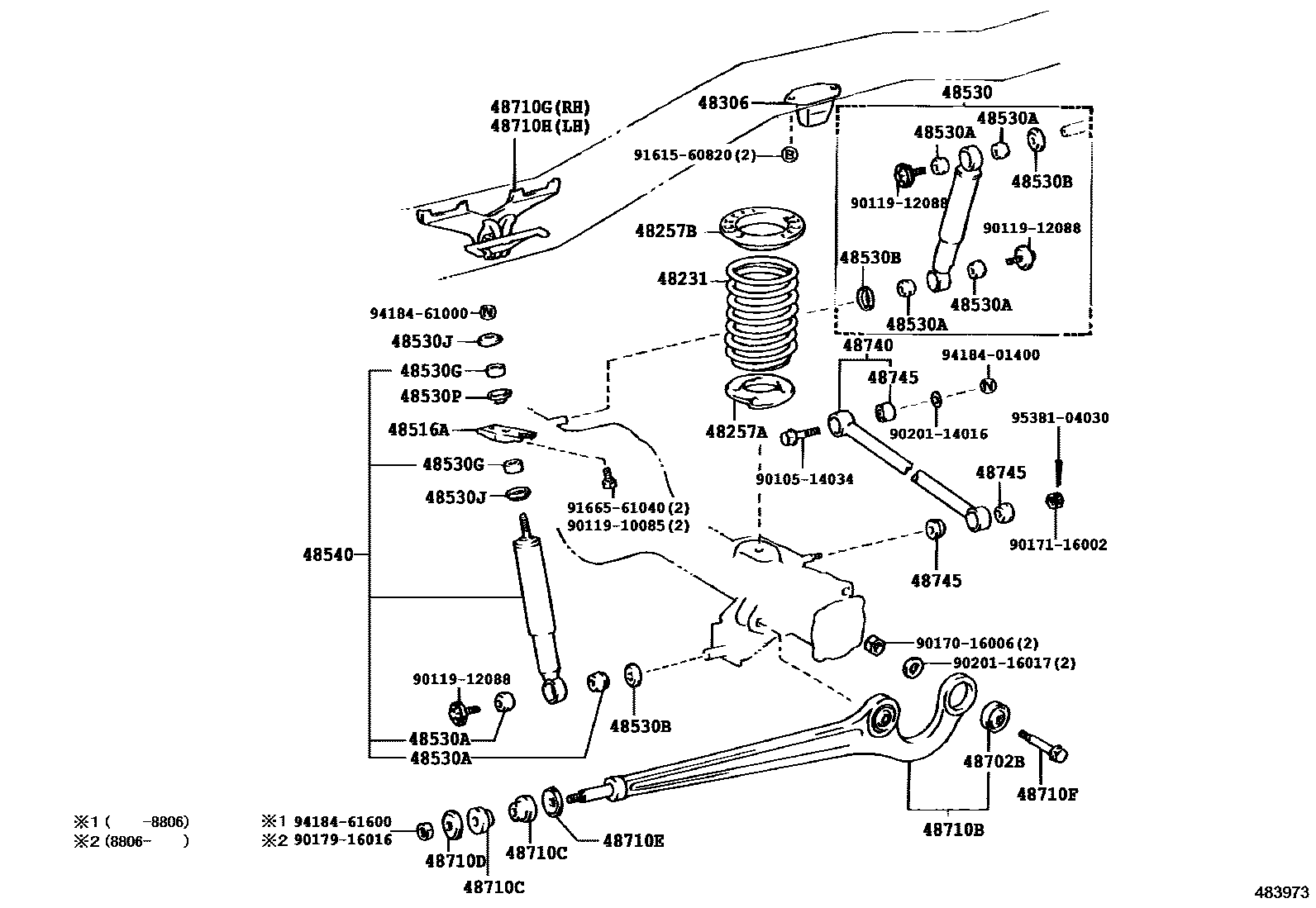

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48231SPRING, COIL, REAR

main48231-60040iLJ71198510-198708

RH

main48231-60041iLJ71198708-199001

RH

main48231-60050iLJ71198510-198708

LH

main48231-60051iLJ71198708-199001

LH

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-60010×2iLJ71198510-199001

48257BINSULATOR, REAR COIL SPRING, UPPER

main48257-60010×2iLJ71198510-199001

48306BUMPER SUB-ASSY, REAR SPRING

main48306-60050×2iBJ7#198411-199001

main48306-60060×2iLJ71198510-198708

main48306-60061×2iLJ71198708-199001

48516ABRACKET, REAR SHOCK ABSORBER, UPPER

main48516-60021iLJ71198510-199001

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-60120iLJ71198510-198708

sub48531-69145

main48531-60140×2iBJ7#198411-198708

sub48531-69165

main48531-69136×2iBJ7#198708-199001

sub48531-69138

main48531-69146iLJ71198708-199001

sub48531-69148

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-19003×8iBJ7#,LJ71198708-199001

main90385-19057×8iBJ7#198411-198708

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03011×4iBJ7#,LJ71198411-199001

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01031×2iLJ71198510-199001

48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)

main90948-02002×2iLJ71198510-198708

main90948-02114×2iLJ71198708-199001

48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)

main90948-02017iLJ71198510-199001

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-60140iBJ7#198411-198708

sub48531-69165

main48531-69136iBJ7#198708-199001

sub48531-69138

main48541-60010iLJ71198510-198708

sub48541-69055

main48541-69056iLJ71198708-199001

sub48541-69058

48702BBUSH SUB-ASSY, TRAILING ARM, NO.1

main48702-60020×4iLJ71198510-199001

48710BARM ASSY, TRAILING, REAR

main48710-60010×2iLJ71198510-198708

main48710-60011×2iLJ71198708-199001

48710CCUSHION(FOR REAR TRAILING ARM)

main48674-60020×4iLJ71198510-199001

48710DRETAINER, CUSHION, NO.1(FOR REAR TRAILING ARM)

main90948-02074×2iLJ71198510-199001

48710ERETAINER, CUSHION, NO.2(FOR REAR TRAILING ARM)

main90948-02083×2iLJ71198510-199001

48710FBOLT(FOR REAR TRAILING ARM)

main90105-16024×4iLJ71198510-199001

48710GBRACKET, TRAILING ARM, RH

main51528-60010iLJ71198510-199001

48710HBRACKET, TRAILING ARM, LH

main51529-60010iLJ71198510-199001

48740ROD ASSY, REAR LATERAL CONTROL

main48740-60010iLJ71198510-198708

main48740-60011iLJ71198708-199001

48745BUSH, LATERAL CONTROL ROD

main48706-60010iLJ71198510-198708

FRAME SIDE

main48706-60011iLJ71198708-199001

FRAME SIDE

main90385-20002iLJ71198510-198708

AXLE HOUSING SIDE,FR

main90385-20003iLJ71198510-198708

AXLE HOUSING SIDE,RR

main90389-20001×2iLJ71198708-199001

9010514034

main90105-14034

9011910085

main90119-10085

9011912088

main90119-12088

9017016006

main90170-16006

9017116002

main90171-16002

9017916016

main90179-16016

9020114016

main90201-14016

9020116017

main90201-16017

9161560820

main91615-60820

9166561040

main91665-61040

9418401400

main94184-01400

9418461000

main94184-61000

9418461600

main94184-61600

9538104030

main95381-04030

36 parts on this diagram · 3 diagrams in section
