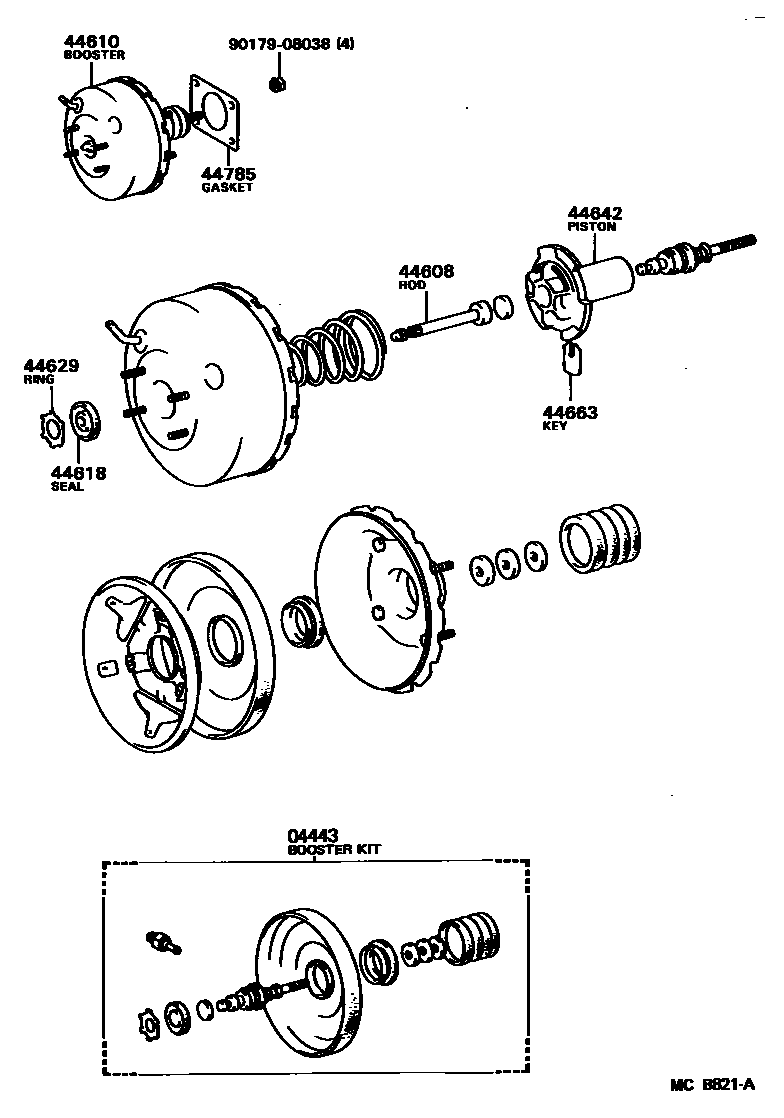

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-60180iBJ70,73198411-199001

main04443-60300iBJ71,74,LJ71198510-199001

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iBJ7#,LJ71198411-199001

44610BOOSTER ASSY, BRAKE

main44610-60280iBJ70,73198411-199001

main44610-60460iBJ71,74,LJ71198510-199001

44618SEAL, BOOSTER BODY

main44621-28120iBJ7#,LJ71198411-199001

44629RING, CIRCULAR INTERNAL

main44628-28120iBJ7#,LJ71198411-199001

44642PISTON, BRAKE BOOSTER

main44642-60280iBJ70,73198411-199001

main44642-60450iBJ71,74,LJ71198510-199001

44663KEY, VALVE STOPPER

main44635-28120iBJ7#,LJ71198411-199001

44785GASKET, BRAKE BOOSTER

main44785-35020iBJ7#,LJ71198411-199001

9017908038

main90179-08038

9 parts on this diagram · 3 diagrams in section
