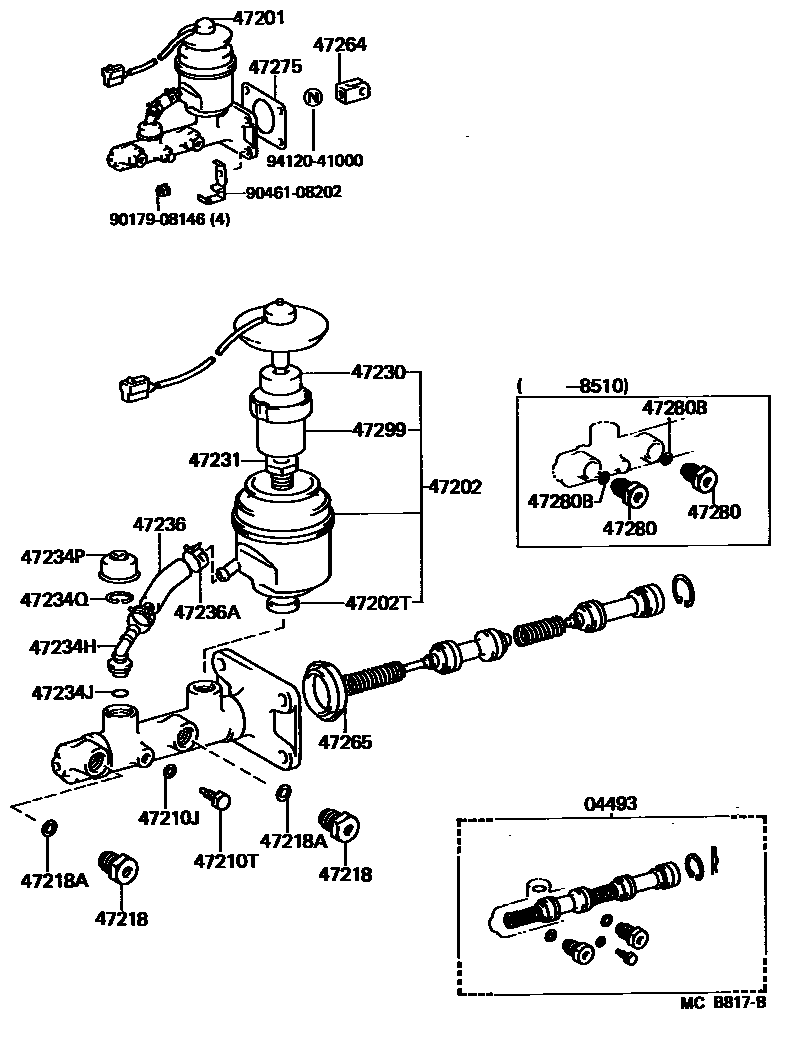

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-60160iBJ7#,LJ71198411-199001

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-60290iBJ70,73198411-199001

main47201-60350iBJ71,74,LJ71198510-199001

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-60070iBJ7#,LJ71198411-199001

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90562-18151iBJ7#,LJ71198411-199001

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iBJ7#,LJ71198411-199001

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iBJ7#,LJ71198411-199001

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-12040iBJ7#,LJ71198510-199001

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iBJ7#,LJ71198510-199001

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-20051iBJ7#,LJ71198411-199001

sub84460-12011

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iBJ7#,LJ71198411-199001

47234HELBOW(FOR RESERVOIR TUBE)

main90407-10004iBJ7#198411-199001

47234JRING, O(FOR RESERVOIR TUBE)

main90301-14001iBJ7#198411-199001

47234PBOOT(FOR RESERVOIR TUBE)

main47265-20060iBJ7#198411-199001

47234QRING, SNAP(FOR RESERVOIR TUBE)

main96151-02000iBJ7#198411-199001

47236TUBE, RESERVOIR BRAKE

main47234-14010iBJ7#,LJ71198411-199001

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iBJ7#,LJ71198411-199001

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iBJ7#,LJ71198411-199001

47265BOOT, MASTER CYLINDER

main47265-20050iBJ7#,LJ71198411-199001

47275GASKET, BRAKE MASTER CYLINDER

main47275-22010iBJ7#,LJ71198411-199001

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-14010iBJ7#198411-198510

47280BGASKET(FOR BRAKE MASTER CYLINDER OUTLET VALVE)

main90430-09253iBJ7#198411-198510

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-14010iBJ7#,LJ71198411-199001

9017908146

main90179-08146

9046108202

main90461-08202

9412041000

main94120-41000

25 parts on this diagram · 2 diagrams in section
