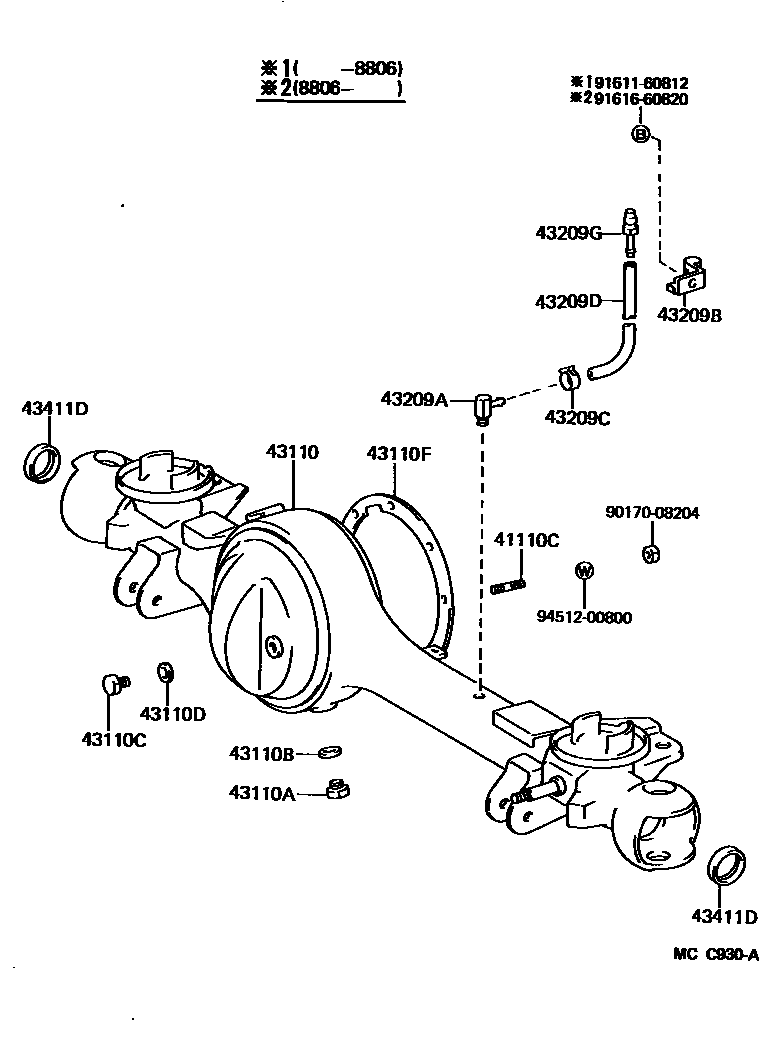

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

41110CBOLT, STUD (FOR FRONT DIFFERENTIAL CARRIER)

main90116-08226×2iLJ71198510-198601

main90116-08233×2iLJ71198601-199001

main90116-08238×8iLJ71198510-198904

main90116-08329×8iLJ71198904-199001

main90116-10074×8iBJ7#198411-199001

main90116-10075×2iBJ7#198411-199001

main90116-10122×2iBJ7#..LX198608-199001

43110HOUSING ASSY, FRONT AXLE

main43110-60160iBJ7#198411-198605

main43110-60161iBJ7#198608-199001

main43110-60190iLJ71198510-198708

sub90201-16021

main43110-60191iLJ71198708-199001

main43110-60230iBJ7#..LX198608-199001

W/DIFFERENTIAL LOCK

main43110-60240iBJ7#198605-198608

43110APLUG SUB-ASSY, DRAIN

main90341-18057iBJ7#,LJ71198411-199001

43110BGASKET, DRAIN

main12157-10010iBJ7#,LJ71198411-199001

43110CPLUG (FOR FRONT AXLE HOUSING)

main90341-18006iBJ7#,LJ71198411-199001

43110DGASKET (FOR FRONT AXLE HOUSING PLUG)

main12157-10010iBJ7#,LJ71198411-199001

43110FGASKET, FRONT DIFFERENTIAL CARRIER

main42181-36010iBJ7#198411-199001

sub42181-60060

main42181-60020iLJ71198510-199001

main42181-60030iBJ7#..LX198608-199001

W/DIFFERENTIAL LOCK

sub42181-60060

43209AUNION (FOR FRONT AXLE BREATHER HOSE)

main90404-10019iBJ7#,LJ71198411-199001

43209BCLAMP (FOR FRONT AXLE BREATHER HOSE)

main90461-10387iBJ7#198411-198510

main90949-01323iBJ7#198510-199001

43209CCLIP, HOSE (FOR FRONT AXLE BREATHER HOSE)

main96132-30600iBJ7#,LJ71198411-199001

sub96132-51100

43209DHOSE, NO.1 (FOR FRONT AXLE BREATHER)

main95332-06040iBJ7#,LJ71198510-198702

main95332-06060iBJ7#198411-198510

sub95333-06060

main95333-06040iBJ7#,LJ71198702-199001

43209GPLUG, BREATHER (FOR FRONT AXLE)

main90930-03097iBJ7#,LJ71198411-199001

43411DSEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT)

main90311-33085×2iBJ7#,LJ71198411-199001

9017008204

main90170-08204

9161160812

main91611-60812

9161660820

main91616-60820

9451200800

main94512-00800

17 parts on this diagram · 6 diagrams in section
