DISC WHEEL & WHEEL CAP

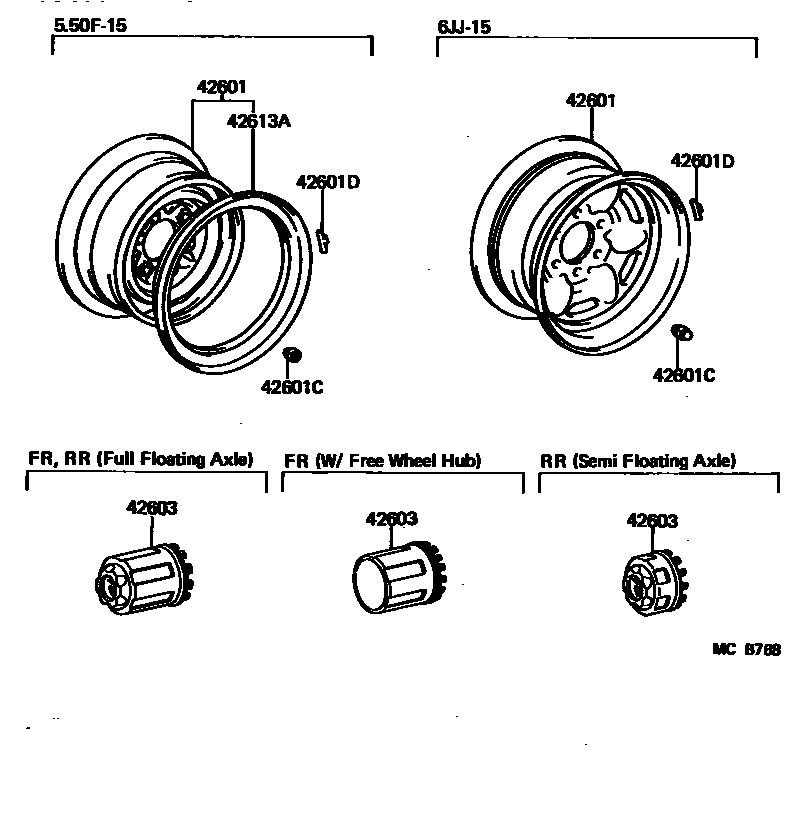

Parts diagram

42601WHEEL, DISC

main42601-35260-05i198411-198412

main42601-60130-05i198412-199001

main42601-60150i198412-199001

main42601-60220i198411-198412

main42601-60320i198609-198610

main42601-60320-01i198609-199001

6JJ-15,SILVER,THE 40TH,SILVER

main42601-60330-06i198612-199001

BEIGE M,BEIGE M

main42601-60330-06i198701-198704

main42610-60012i198411-199001

42601CNUT, HUB (FOR AXLE)

main90942-01047i198411-199001

6JJ-15

main90942-01051i198411-199001

5.50F-15

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03045i198411-199001

main90942-03047i198411-199001

main90942-03049i198411-199001

main90942-03050i198411-199001

main90942-03051i198411-199001

main90942-03052i198411-199001

main90942-03053i198411-199001

main90942-03064i198411-199001

main90942-03079i198411-199001

main90942-03080i198411-199001

main90942-03081i198411-199001

main90942-03082i198411-199001

main90942-03083i198411-199001

main90942-03084i198411-199001

main90942-03085i198411-199001

main90942-03086i198411-199001

main90942-03106i198411-199001

main90942-03107i198411-199001

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-35080i198411-199001

main42603-60012i198411-199001

RR,FULL FLOATING AXLE

main42603-60012i198411-199001

FR

main42603-60052i198411-199001

RR,SEMI FLOATING AXLE

42613ARING, DISC WHEEL SIDE

main42613-35010i198411-199001

5 parts on this diagram · 1 diagram in section
