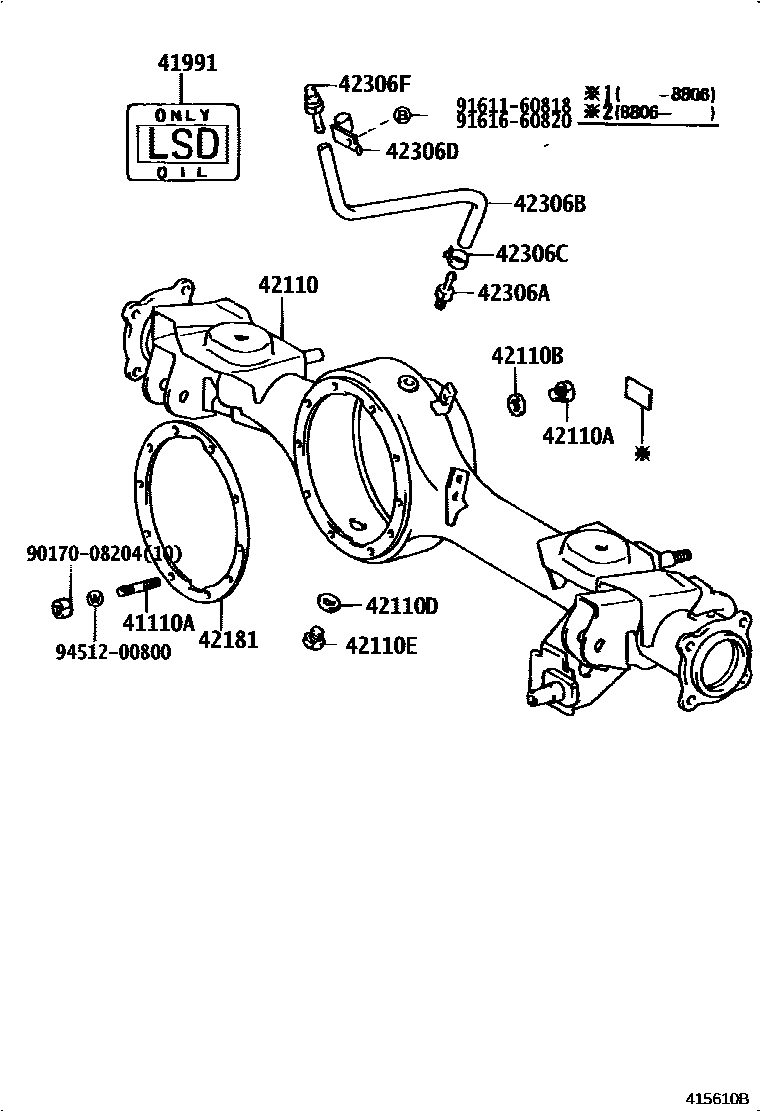

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1�������������� 0012 1��������������

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-60110iBJ7#198411-198911

sub41110-60111

sub90949-01692

main41110-60111iBJ7#198911-199001

sub41110-60112

main41110-60130iBJ7#198411-199001

sub41110-60430

main41110-60170iLJ71198510-198905

sub41110-60171

sub90116-08329

sub90116-08334

main41110-60171iLJ71198905-199001

sub41110-60380

main41110-60190iLJ71198510-198905

sub41110-60191

sub90116-08329

main41110-60191iLJ71198905-199001

sub41110-60390

main41110-60230iBJ7#..LX198608-198906

sub41110-60231

sub90116-10075

main41110-60231iBJ7#..LX198906-199001

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08226iLJ71198510-198601

main90116-08233iLJ71198601-199001

main90116-08238iLJ71198510-199001

sub90116-08329

main90116-10074iBJ7#198411-199001

main90116-10075iBJ7#198411-199001

main90116-10076iBJ7#198411-199001

main90116-10124iBJ7#..LX198608-199001

41991CAUTION PLATE, REAR DIFFERENTIAL

main41991-60010iBJ7#,LJ71198411-199001

W/LSD

sub41991-22010

42110HOUSING ASSY, REAR AXLE

main42110-60250iBJ7#198411-198608

main42110-60251iBJ7#198608-199001

main42110-60260iBJ7#198411-198608

W/LSD

main42110-60261iBJ7#198608-199001

W/LSD

main42110-60271iLJ71198510-198708

sub42110-60272

sub90201-16021

main42110-60272iLJ71198708-199001

main42110-60310iBJ7#..LX198608-199001

W/DIFFERENTIAL LOCK

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iBJ7#,LJ71198411-199001

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iBJ7#,LJ71198411-199001

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iBJ7#,LJ71198411-199001

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iBJ7#,LJ71198411-199001

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-36010iBJ7#198411-199001

sub42181-60060

main42181-60020iLJ71198510-199001

main42181-60030iBJ7#..LX198608-199001

W/DIFFERENTIAL LOCK

sub42181-60060

42306AUNION (FOR REAR AXLE BREATHER HOUSE)

main90404-10018iBJ7#198411-199001

main90404-51052iLJ71198510-199001

42306BHOSE (FOR REAR AXLE BREATHER)

main95332-06040iLJ71198510-198702

L=400

sub95333-06040

main95332-06060iBJ7#198411-198702

*H,L=480

sub95333-06060

main95333-06040iLJ71198702-199001

L=400

main95333-06060iBJ7#198702-199001

*H,L=480

42306CCLIP, HOSE (FOR REAR AXLE BREATHER HOSE)

main96132-30600iBJ7#,LJ71198411-199001

sub96132-51100

42306DCLAMP (FOR REAR AXLE BRATHER HOSE)

main90461-10387iBJ7#,LJ71198411-199001

42306FPLUG, BREATHER (FOR REAR AXLE)

main90930-03097iBJ7#,LJ71198411-199001

9017008204

main90170-08204

9161160818

main91611-60818

9161660820

main91616-60820

9451200800

main94512-00800

18 parts on this diagram · 12 diagrams in section
