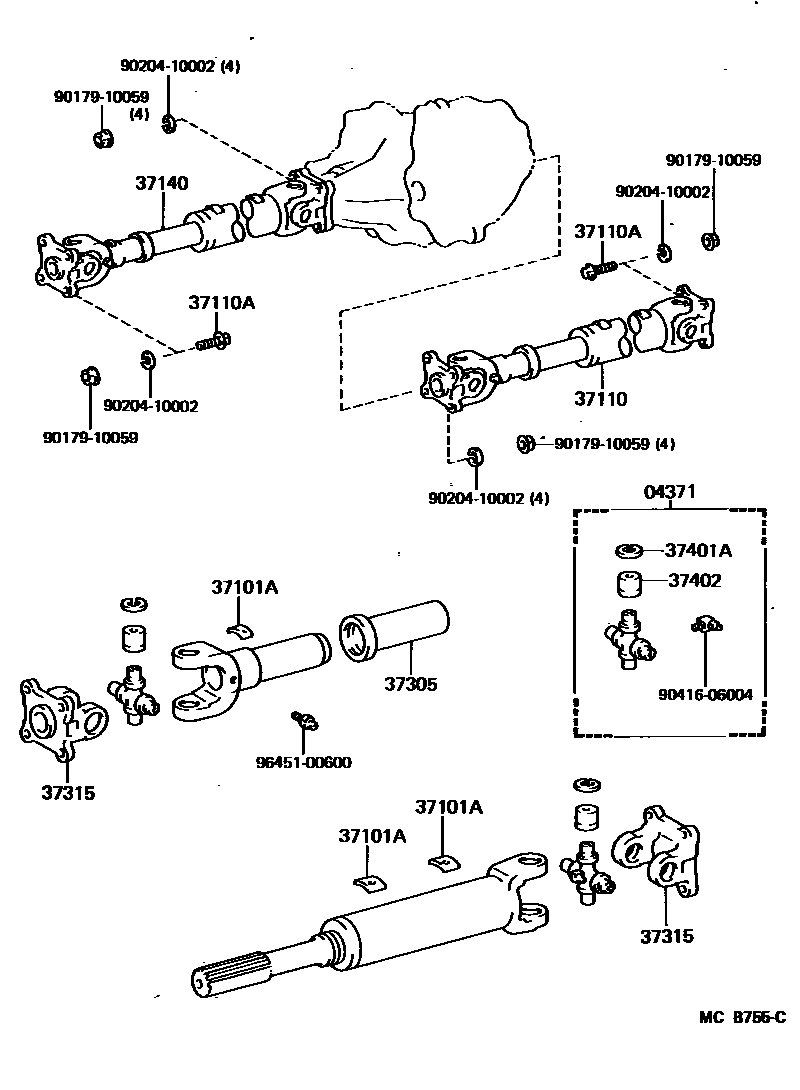

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-35030×4iLJ71198510-198802

main04371-35031×4iLJ71198802-199001

sub04371-35050

main04371-36030×4iBJ7#198411-199001

sub04371-60210

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iBJ7#,LJ71198411-199001

main90937-01136iBJ7#,LJ71198411-198608

main90937-01140iBJ7#,LJ71198411-198608

main90937-01147iBJ7#,LJ71198411-199001

main90937-01148iBJ7#,LJ71198411-199001

main90937-01149iBJ7#,LJ71198411-199001

main90937-01150iBJ7#,LJ71198411-199001

main90937-01151iBJ7#,LJ71198411-199001

main90937-01152iBJ7#,LJ71198411-199001

main90937-01153iBJ7#,LJ71198411-198608

main90937-01154iBJ7#,LJ71198411-198608

main90937-01155iBJ7#,LJ71198411-198608

main90937-01156iBJ7#,LJ71198411-198608

main90937-01157iBJ7#,LJ71198411-198608

main90937-01158iBJ7#,LJ71198411-198608

main90937-01184iBJ7#,LJ71198411-199001

main90937-01191iBJ7#,LJ71198411-199001

main90937-01192iBJ7#,LJ71198411-199001

main90937-01193iBJ7#,LJ71198411-199001

main90937-01194iBJ7#,LJ71198411-199001

main90937-01198iBJ7#,LJ71198411-198608

main90937-01199iBJ7#,LJ71198411-198608

main90937-01200iBJ7#,LJ71198411-198608

main90937-01268iBJ7#,LJ71198703-199001

main90937-01269iBJ7#,LJ71198703-199001

37110SHAFT ASSY, PROPELLER

main37110-60340iBJ70,71198411-199001

main37110-60360iBJ73,74..MTM198411-199001

main37110-60390iLJ71198510-199001

main37110-60430iBJ74..ATM198510-199001

37110ABOLT (FOR PROPELLER SHAFT)

main90105-10085×8iLJ71198510-199001

main90105-11013×8iBJ7#198411-199001

37140SHAFT ASSY, PROPELLER, FRONT

main37140-60170iBJ7#..MTM198411-199001

main37140-60210iLJ71198510-199001

main37140-60230iBJ74..ATM198510-199001

37305COVER SUB-ASSY, SLIDING SHAFT DUST

main37305-35020×2iLJ71198510-199001

main37305-36010iBJ7#198411-198510

RR

main37305-36020iBJ7#198510-199001

RR

main37305-60010iBJ7#198411-199001

FR

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-35040×4iLJ71198510-199001

main37315-36020×4iBJ7#198411-199001

sub37315-60090

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-26038×16iLJ71198802-199001

main90520-26040×16iLJ71198802-199001

main90520-26041×16iLJ71198802-199001

main90520-26042×16iLJ71198802-199001

main90520-26043×16iLJ71198802-199001

main90520-26044×16iLJ71198802-199001

main90520-26045×16iLJ71198802-199001

main90520-26046×16iLJ71198802-199001

main90520-26233×16iLJ71198510-198802

main90520-26234×16iLJ71198510-198802

main90520-26235×16iLJ71198510-198802

main90520-29024×16iBJ7#198411-199001

main90520-29025×16iBJ7#198411-199001

main90520-29026×16iBJ7#198411-199001

main90520-29027×16iBJ7#198411-199001

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-30010×16iLJ71198510-198712

main37402-30011×16iLJ71198712-199001

sub04371-60070

sub04371-60100

main37402-30020×16iLJ71198510-198712

RED PAINTED

main37402-30021×16iLJ71198712-199001

RED PAINTED

sub04371-60070

sub04371-60100

main37402-36080×16iBJ7#198411-199001

9017910059

main90179-10059

9020410002

main90204-10002

9041606004

main90416-06004

9645100600

main96451-00600

13 parts on this diagram · 2 diagrams in section
