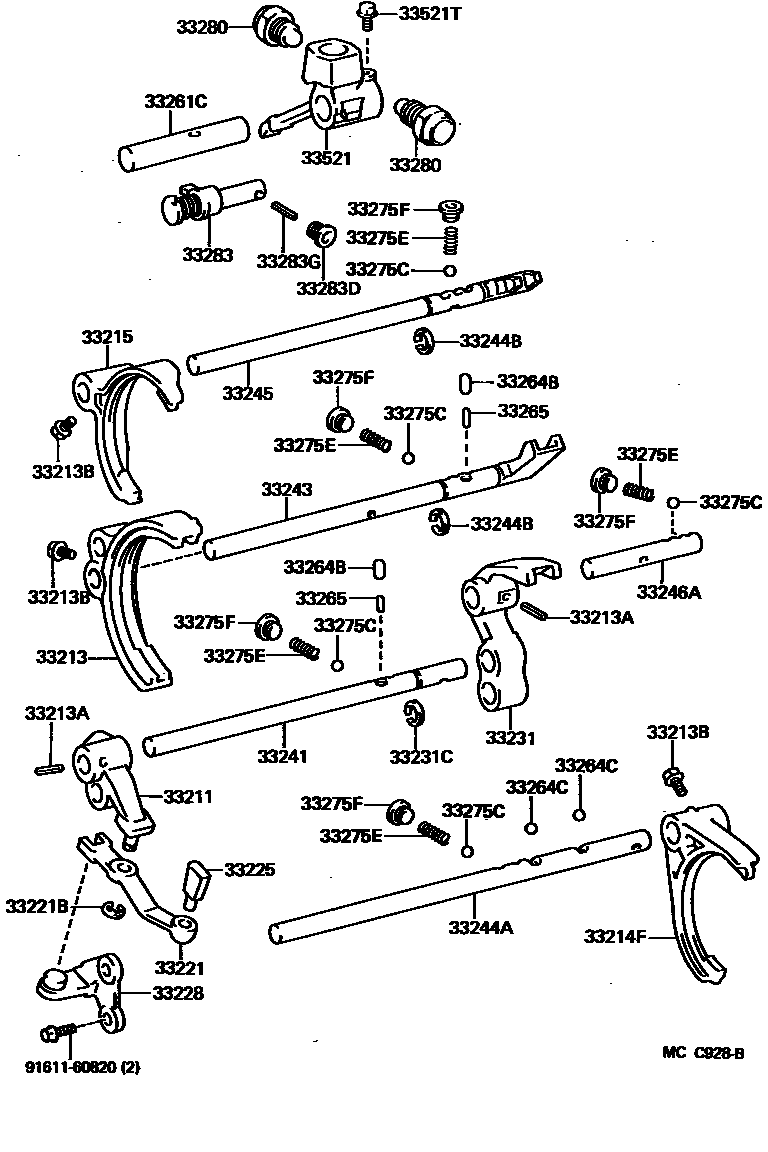

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33221BRING, E(FOR REVERSE SHIFT ARM)
33228BRACKET, REVERSE SHIFT ARM
33231HEAD, REVERSE SHIFT
33231CRING(FOR REVERSE SHIFT HEAD)
33243SHAFT, 1ST & 2ND SHIFT FORK
33244ASHAFT, 5TH SHIFT FORK
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33245SHAFT, 3RD & 4TH SHIFT FORK
33246ASHAFT, REVERSE & 5TH SHIFT HEAD
33261CSHAFT, SHIFT & SELECT LEVER
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
33264CBALL (FOR SHIFT INTERLOCK)
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
L=22.1
L=34.5
L=33.6
33275FPLUG (FOR SHIFT DETENT BALL)
33280PIN ASSY, REVERSE RESTRICT
33283PIN, REVERSE RESTRICT, NO.1
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33521HOUSING, SHIFT LEVER
33521TBOLT (FOR SHIFT LEVER HOUSING)
9161160820
main91611-60820
32 parts on this diagram · 2 diagrams in section
