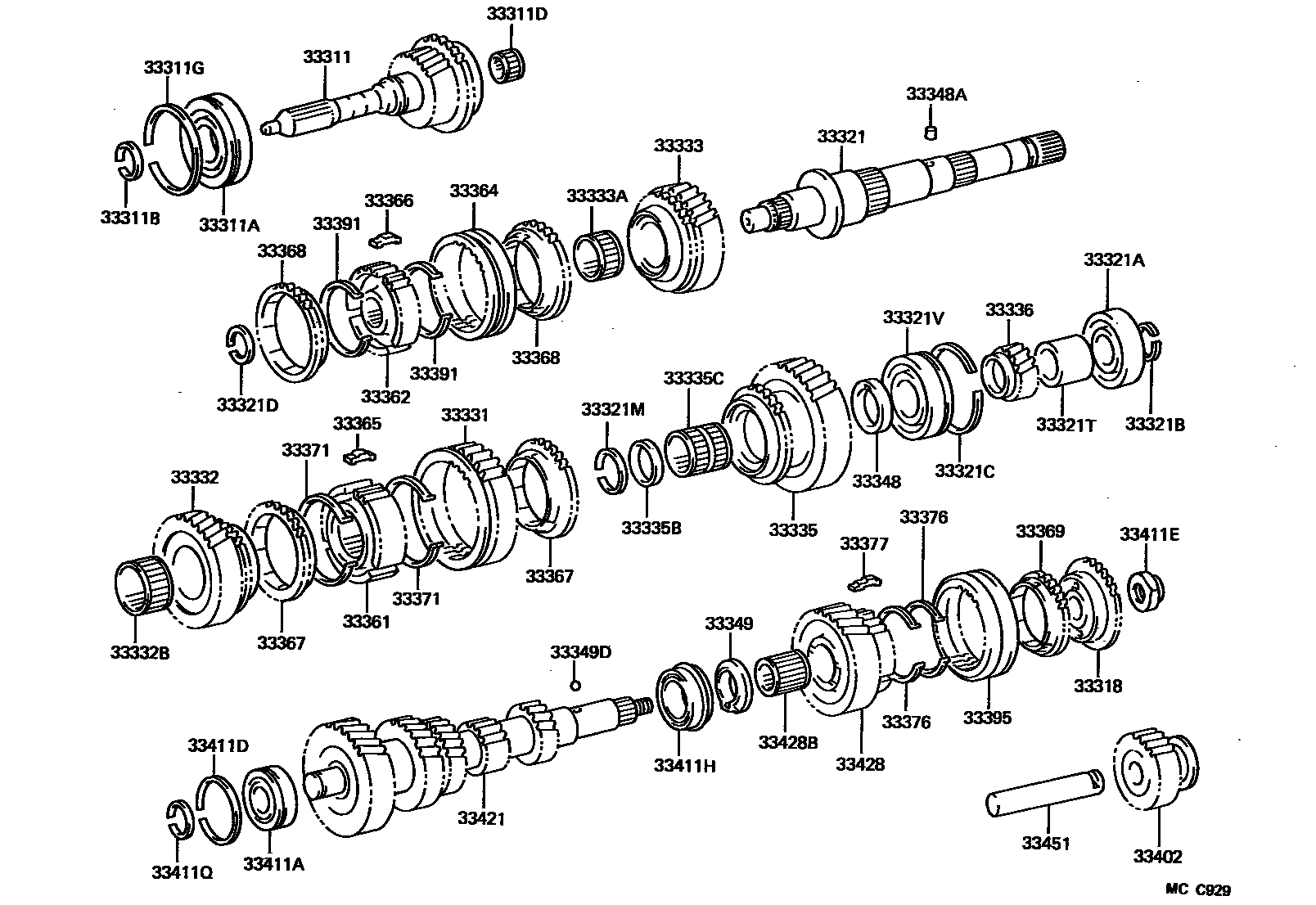

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33318PIECE, GEAR SPLINE, NO.5
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
33321MRING, SHAFT SNAP (FOR BEARING)
33321TSPACER (FOR OUTPUT SHAFT)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33331GEAR, REVERSE
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335BSPACER(FOR 1ST GEAR BEARING)
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33349DBALL (FOR 5TH GEAR THRUST WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
sub33361-60020
33362HUB, TRANSMISSION CLUTCH, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
33411ENUT(FOR COUNTER GEAR SHAFT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
33421GEAR, COUNTER
sub33421-60160
sub90520-20066
sub90520-20067
sub90520-20068
sub90520-20069
sub90520-20070
sub90520-20071
sub90520-20072
sub90520-20073
33428GEAR, COUNTERSHAFT 5TH
33428BBEARING (FOR COUNTER 5TH GEAR)
33451SHAFT, REVERSE IDLER GEAR
50 parts on this diagram · 2 diagrams in section
