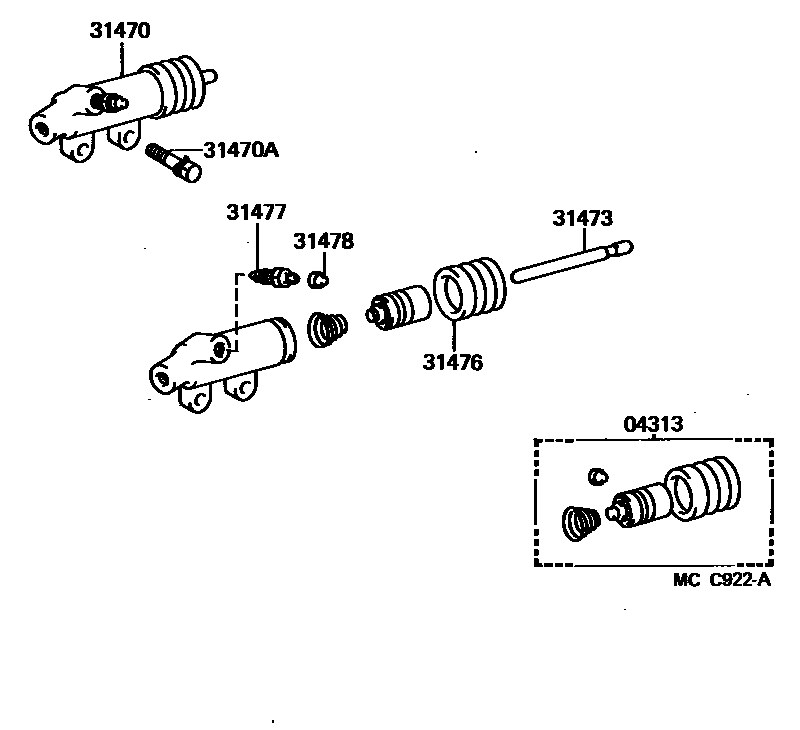

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22020iLJ71198510-199001

sub04313-12030

main04313-60060iBJ70,73198411-199001

main04313-60070iBJ71,74..MTM198510-199001

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-25031iLJ71198510-199001

sub31470-35110

main31470-60120iBJ7#198411-198510

main31470-60130iBJ70,73198510-199001

main31470-60140iBJ71,74..MTM198510-199001

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820iLJ71198510-199001

sub91611-G0820

main91611-60828iBJ7#..MTM198411-199001

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iLJ71198510-199001

main31473-60100iBJ7#198411-198510

main31473-60110iBJ70,73198510-199001

main31473-60120iBJ71,74..MTM198510-199001

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLJ71198510-199001

main31476-60050iBJ7#..MTM198411-199001

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBJ7#,LJ71..MTM198411-199001

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBJ7#,LJ71..MTM198411-199001

7 parts on this diagram · 2 diagrams in section
