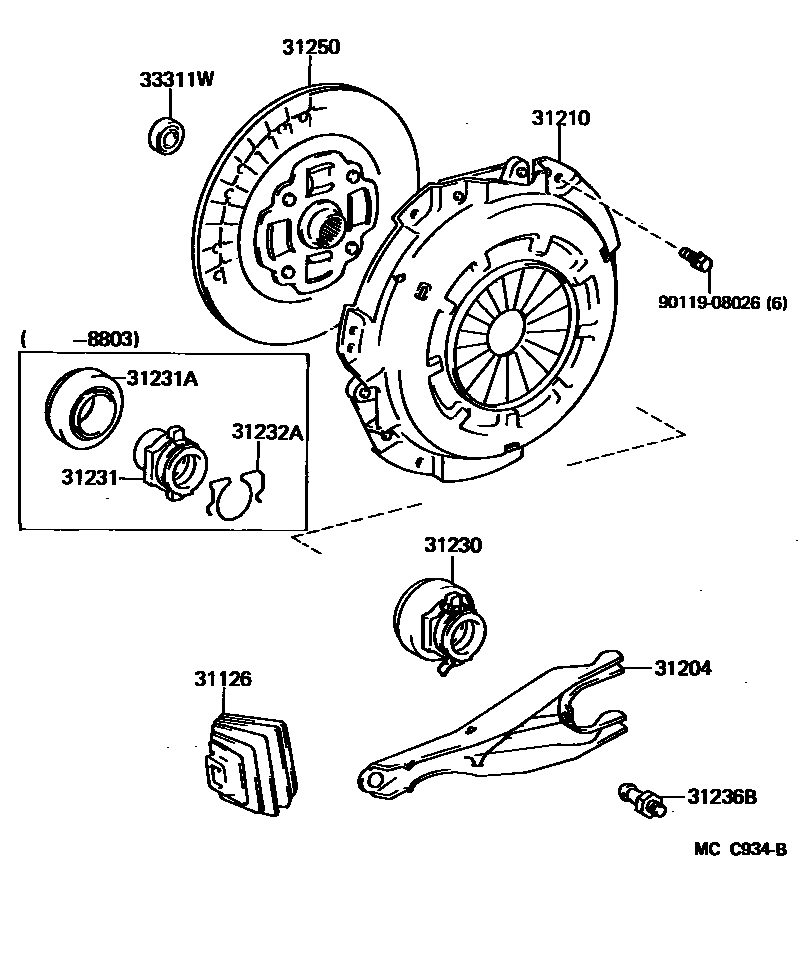

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iLJ71198510-199001

main31126-60030iBJ7#..MTM198411-199001

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35030iLJ71198510-199001

sub31204-35031

main31204-60080iBJ7#..MTM198411-199001

31210COVER ASSY, CLUTCH

main31210-24020iLJ71198510-198808

sub31210-35130

main31210-35110iLJ71198808-199001

sub31210-53040

main31210-36100iBJ70,73198411-198910

main31210-36140iBJ71,74..MTM198809-198910

main31210-36160iBJ71,74..MTM198910-199001

sub31210-36161

main31210-60070iBJ71,74..MTM198510-198712

main31210-60071iBJ71,74..MTM198712-198809

main31210-60130iBJ70,73198910-199001

sub31210-60190

31230BEARING ASSY, CLUTCH RELEASE

main31230-22090iLJ71198803-199001

sub31230-22091

31231HUB, CLUTCH RELEASE BEARING

main31231-60080iBJ70,73198411-198808

main31231-60090iLJ71198510-198803

main31231-60100iBJ71,74..MTM198510-198808

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iLJ71198510-198803

main90363-45002iBJ70,73198411-199001

main90363-45009iBJ71,74..MTM198510-198709

main90363-45013iBJ71,74..MTM198709-199001

31232ACLIP, RELEASE BEARING HUB

main31232-35010iLJ71198510-198803

main31232-60020×2iBJ7#..MTM198411-199001

31236BSUPPORT, RELEASE FORK

main31236-35030iLJ71198510-199001

main31236-60030iBJ7#..MTM198411-199001

31250DISC ASSY, CLUTCH

main31250-14150iLJ71198510-198804

main31250-28030iLJ71198804-199001

sub31250-28031

main31250-36280iBJ70,73198512-198705

sub31250-36281

main31250-36301iBJ70,73198705-198708

main31250-60090iBJ70,73198411-198512

main31250-60120iBJ71,74..MTM198510-198610

main31250-60121iBJ71,74..MTM198610-198708

sub31250-36401

main31250-60180iBJ70,73198708-199001

main31250-60190iBJ71,74..MTM198708-199001

sub31250-60220

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iBJ7#,LJ71..MTM198411-199001

sub90363-12024

9011908026

main90119-08026

11 parts on this diagram · 2 diagrams in section
