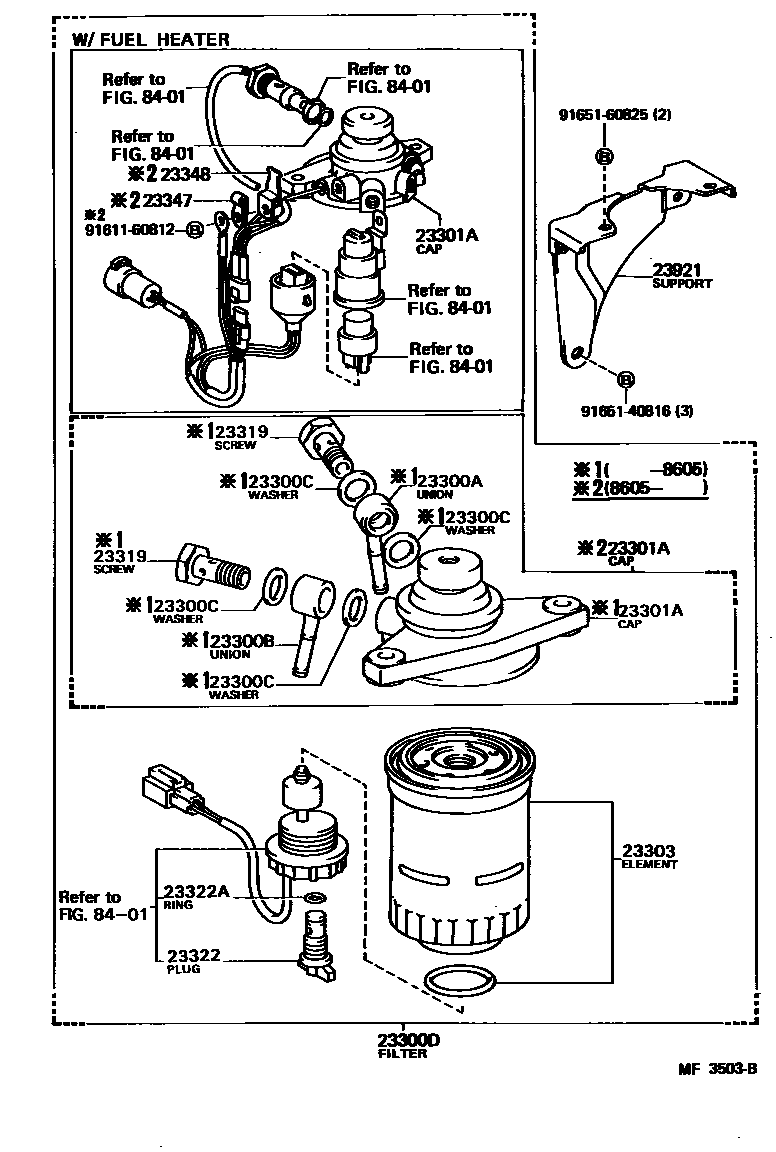

FUEL FILTER

0001 1 0002 1 0003 1 0004 1

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main23323-64010i3B..BJ70,73198411-198605

main90099-18010i13BT..BJ71,74198512-199001

main90401-14060i13BT..BJ71,74198510-198512

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main23323-64010i3B..BJ70,73198411-198605

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030i3B..BJ70,73198411-198605

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-56080i13BT..BJ71,74198510-199001

main23300-64080i3B..BJ7#198411-198510

W/O FUEL HEATER

sub23300-64081

main23300-64090i3B..BJ70,73198510-198605

W/O FUEL HEATER

main23300-64091i3B..BJ70,73198605-199001

W/O FUEL HEATER

23301BODY SUB-ASSY, FUEL FILTER

main23311-56070i13BT..BJ71,74198510-199001

23301ACAP ASSY, FUEL FILTER

main23301-54140i2LT..LJ71198510-199001

main23301-54150i2LT..LJ71198510-199001

COLD SPEC

main23301-58010i3B..BJ70,73198411-198605

W/FUEL HEATER

main23301-58040i3B..BJ70,73198605-199001

W/FUEL HEATER

main23301-64020i3B..BJ70,73198411-198605

main23301-64090i3B..BJ70,73198605-199001

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-54071i13BT..BJ71,74198510-199001

sub23303-54072

main23303-64010i2LT..LJ71198411-199001

23319SCREW, FUEL PIPE FOLLOW

main23319-48010i13BT..BJ71,74198510-199001

main90099-18011i3B..BJ70,73198411-198605

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i3B..BJ70,73198411-199001

W/FUEL HEATER

main23322-64010i2LT..LJ71198510-199001

main23322-64020i3B..BJ70,73198411-199001

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i3B..BJ70,73198411-199001

23347CLIP, CORD

main23347-58010i3B..BJ70,73198605-199001

23348STAY

main23348-58010i3B..BJ70,73198605-199001

23921SUPPORT, FUEL FILTER

main23921-54160i2LT..LJ71198510-199001

main23921-58010i3B..BJ70,73198411-199001

8401

9161160812

main91611-60812

9165140816

main91651-40816

9165160825

main91651-60825

17 parts on this diagram · 4 diagrams in section
