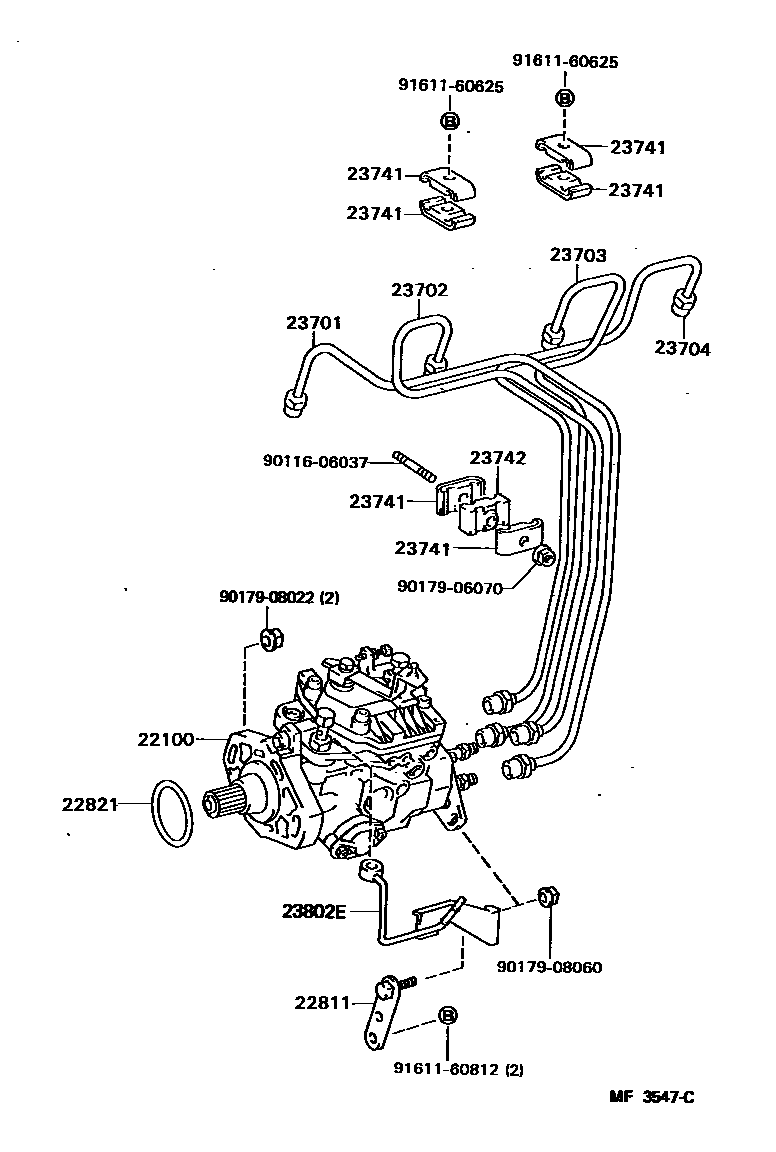

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54262i2LT..LJ71198510-198607

main22100-54263i2LT..LJ71198607-198708

main22100-54700i2LT..LJ71198708-199001

main22100-58200i3B..BJ70,73198411-198611

main22100-58201i3B..BJ70,73198611-198808

sub22100-58211

main22100-58202i3B..BJ70,73198808-199001

sub22100-58840

main22100-58360i13BT..BJ71,74..MTM198510-199001

COLD SPEC

main22100-58370i13BT..BJ74..ATM198510-199001

COLD SPEC

main22100-58400i13BT..BJ71,74..MTM198510-199001

main22100-58410i13BT..BJ74..ATM198510-199001

22811STAY, INJECTION PUMP, NO.1

main22811-54040i2LT..LJ71198510-198808

sub22811-54041

main22811-54041i2LT..LJ71198808-199001

sub22811-54042

main22811-56040i13BT..BJ71,74198510-199001

main22811-56050i3B..BJ70,73198808-199001

main22811-58010i3B..BJ70,73198411-198808

22821GASKET, INJECTION PUMP

main90301-49003i3B..BJ70,73198411-199001

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54072i2LT..LJ71198903-199001

main23701-54082i2LT..LJ71198510-198903

sub23701-54072

main23701-56040i3B..BJ70,73198411-198808

main23701-56060i13BT..BJ71,74198510-199001

main23701-58010i3B..BJ70,73198808-199001

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54071i2LT..LJ71198903-199001

main23702-54081i2LT..LJ71198510-198903

sub23702-54071

main23702-56040i3B..BJ70,73198411-198808

main23702-56060i13BT..BJ71,74198510-199001

main23702-58010i3B..BJ70,73198808-199001

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54072i2LT..LJ71198903-199001

main23703-54082i2LT..LJ71198510-198903

sub23703-54072

main23703-56040i3B..BJ70,73198411-198808

main23703-56060i13BT..BJ71,74198510-199001

main23703-58010i3B..BJ70,73198808-199001

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54072i2LT..LJ71198903-199001

main23704-54082i2LT..LJ71198510-198903

sub23704-54072

main23704-56040i3B..BJ70,73198411-198808

main23704-56060i13BT..BJ71,74198510-199001

main23704-58010i3B..BJ70,73198808-199001

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010i2LT..LJ71198411-199001

23742CLAMP, INJECTION PIPE, NO.2

main23741-56020i3B..BJ70,73198411-199001

sub23741-56021

23802EPIPE SUB-ASSY, FUEL

main23801-56070i3B..BJ70,73198411-198808

main23801-58020i3B..BJ70,73198808-199001

9011606037

main90116-06037

9017906070

main90179-06070

9017908022

main90179-08022

9017908060

main90179-08060

9161160625

main91611-60625

9161160812

main91611-60812

16 parts on this diagram · 4 diagrams in section
