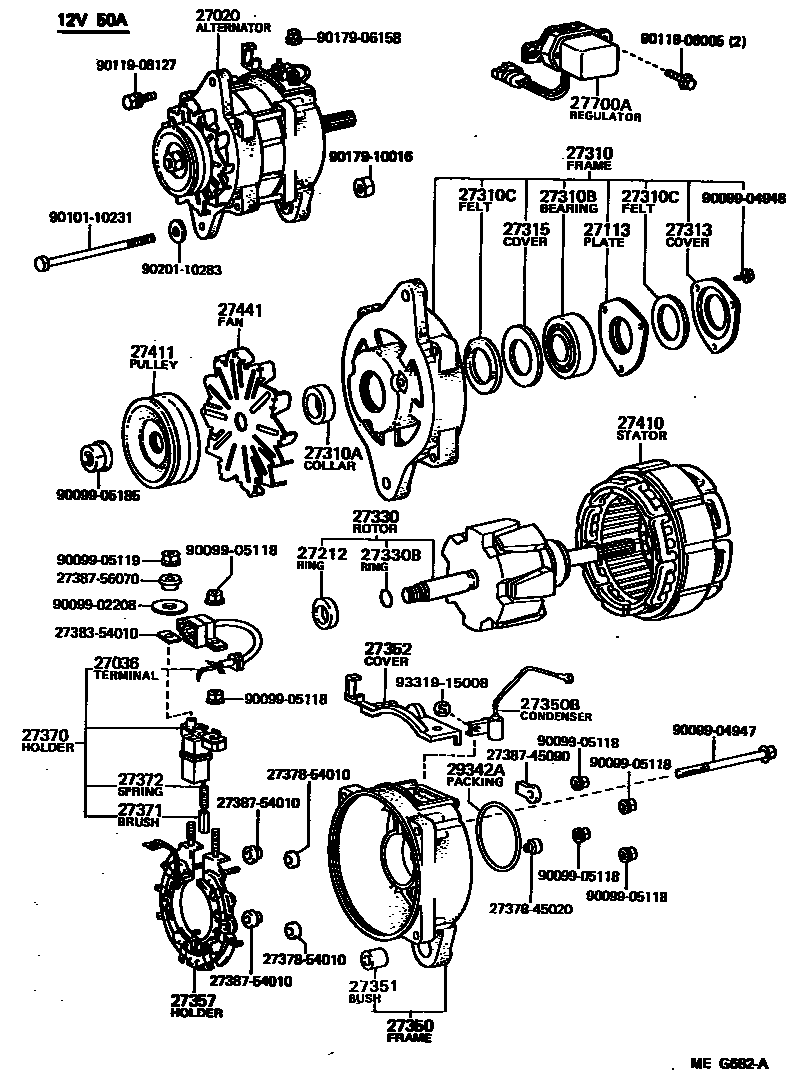

ALTERNATOR

0001 1 0002 1 0004 1 0005 1

27020ALTERNATOR ASSY

main27020-54210i2LT..LJ71198510-199001

sub27020-54160

main27020-56110i3B..BJ70,73..STD198411-198808

sub27020-56230

main27020-56180i3B..BJ70,73..LX198411-198808

main27020-56310i3B..BJ70,73..STD198411-198808

main27020-56320i13BT..BJ71,74198808-199001

main27020-56400i13BT..BJ71,74198510-199001

main27060-58090i3B..BJ70,73198808-199001

sub27060-58020

27036TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR

main27036-54010i2LT..LJ71198510-198709

12V 50A

main27036-56390i13BT..BJ71,74198510-199001

24V 30A,COLD SPEC

main27036-57080i13BT,3B..BJ7#198411-198804

24V 25A,30A

sub27036-57060

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-57060i13BT,2LT..BJ71,74,LJ71198808-199001

12V 50A,24V 30A

main27312-70200i3B..BJ70,73198808-199001

24V 30A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27333-57060i13BT,3B,2LT..BJ7#,LJ71198411-199001

12V 50A,24V 25A,30A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-54130i2LT..LJ71198510-199001

12V 50A

sub27310-54131

main27310-56110i3B..BJ70,73..STD198411-198808

24V 25A,30A

main27310-56180i13BT,3B..BJ7#198411-198808

24V 25A,30A,W/PS

main27310-58040i3B..BJ70,73198808-199001

24V 30A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-57060i13BT,3B,2LT..BJ7#,LJ71198411-198808

12V 50A,24V 25A,30A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10137i13BT,3B,2LT..BJ7#,LJ71198411-198808

12V 50A,24V 25A,30A

main90099-10178i3B..BJ70,73198808-199001

24V 30A

27310CFELT(FOR ALTERNATOR DRIVE END FRAME)

main90099-02209×2i13BT,3B,2LT..BJ7#,LJ71198411-198808

12V 50A,24V 25A,30A

27313COVER, ALTERNATOR FELT, INNER NO.2

main27313-57060i13BT,3B,2LT..BJ7#,LJ71198411-198808

12V 50A,24V 25A,30A

27315COVER, ALTERNATOR FELT, INNER NO.1

main27315-57060i13BT,3B,2LT..BJ7#,LJ71198411-198808

12V 50A,24V 25A,30A

27330ROTOR ASSY, ALTERNATOR

main27330-56110i13BT,3B..BJ7#198411-198808

24V 25A,30A

main27330-56390i13BT..BJ71,74198510-199001

24V 30A,COLD SPEC

main27330-58040i3B..BJ70,73198808-199001

24V 30A

main27330-64010i2LT..LJ71198510-199001

12V 50A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07103i13BT,3B,2LT..BJ7#,LJ71198411-198808

12V 50A,24V 25A,30A

27350FRAME ASSY, RECTIFIER END

main27350-54130i2LT..LJ71198510-199001

12V 50A

main27350-56110i13BT,3B..BJ7#198411-198808

24V 25A,30A

27350BCONDENSER, ALTERNATOR

main90099-52066i13BT,3B..BJ7#198411-198804

24V 25A,30A

sub90099-52035

main90099-52082i2LT..LJ71198510-198709

12V 50A

main90099-52099i3B..BJ70,73198808-199001

24V 30A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-56013i13BT,3B,2LT..BJ7#,LJ71198411-198808

12V 50A,24V 25A,30A

27352COVER, FRAME BRUSH

main27388-56100i13BT,3B..BJ7#198804-198808

24V 25A,30A

main27388-57060i13BT,3B..BJ7#198411-198804

24V 25A,30A

main27388-57070i13BT..BJ71,74198510-199001

24V 30A,COLD SPEC

sub27388-54070

main27388-64010i2LT..LJ71198510-199001

12V 50A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-54190i3B..BJ70,73198411-198808

24V 25A

main27357-56310i13BT,3B..BJ7#198411-198808

24V 30A

sub27357-64060

main27357-63020i3B..BJ70,73198808-199001

24V 30A

main27357-64070i2LT..LJ71198510-199001

12V 50A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-54010i2LT..LJ71198510-198709

12V 50A

main27370-54250i2LT..LJ71198709-199001

12V 50A

main27370-57080i13BT..BJ71,74198808-199001

24V 30A

sub27370-56210

main27370-63021i3B..BJ70,73198808-199001

24V 30A

sub27370-70300

main27373-57120i13BT..BJ71,74198510-199001

24V 30A,COLD SPEC

sub27373-57121

27371BRUSH, ALTERNATOR

main27371-56070×2i13BT,3B,2LT..BJ7#,LJ71198411-198808

12V 50A,24V 25A,30A

sub27371-54412

main27371-63020i3B..BJ70,73198808-199001

24V 30A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-56070×2i13BT,3B,2LT..BJ7#,LJ71198411-198808

12V 50A,24V 25A,30A

main27372-72100×2i3B..BJ70,73198808-199001

24V 30A

sub27372-63020

27410STATOR ASSY, ALTERNATOR

main27410-41080i2LT..LJ71198510-199001

12V 50A

main27410-56110i3B..BJ70,73198411-198808

24V 25A

main27410-56310i13BT..BJ71,74198808-199001

24V 30A

main27410-56390i13BT..BJ71,74198510-199001

24V 30A,COLD SPEC

27411PULLEY, ALTERNATOR

main27411-54170i2LT..LJ71198510-199001

12V 50A

sub27411-54171

main27411-57060i13BT,3B..BJ7#198411-198808

24V 25A,30A

main27411-58040i3B..BJ70,73198808-199001

24V 30A

27441FAN, ALTERNATOR

main27441-56090i13BT,3B,2LT..BJ7#,LJ71198411-198808

12V 50A,24V 25A,30A

27700AREGULATOR ASSY, GENERATOR

main27700-15030i2LT..LJ71198510-199001

12V 50A

sub27700-15040

main27700-57050i13BT..BJ71,74198510-198709

24V 30A,COLD SPEC

sub90099-05118

main27700-57051i13BT..BJ71,74198709-199001

24V 30A,COLD SPEC

main27700-57080i13BT,3B..BJ7#198411-198808

24V 25A,30A

main27700-58020i3B..BJ70,73198808-199001

24V 30A

29342APACKING, VACUUM PUMP

main90099-14055i13BT,3B,2LT..BJ7#,LJ71198411-198808

12V 50A,24V 25A,30A

2737845020INSULATOR, ALTERNATOR, NO.1

main27378-45020

2737854010INSULATOR, ALTERNATOR, NO.1

main27378-54010

2738354010WASHER, ALTERNATER TERMINAL INSULATOR, NO.1

main27383-54010

2738745090INSULATOR, TERMINAL

main27387-45090

2738754010INSULATOR, TERMINAL

main27387-54010

2738756070INSULATOR, TERMINAL

main27387-56070

9009902208

main90099-02208

9009904947

main90099-04947

9009904948

main90099-04948

9009905118

main90099-05118

9009905119

main90099-05119

9009905185

main90099-05185

9010110231

main90101-10231

9011906005

main90119-06005

9011908127

main90119-08127

9017906158

main90179-06158

9017910016

main90179-10016

9020110283

main90201-10283

9331915008

main93319-15008

44 parts on this diagram · 4 diagrams in section
