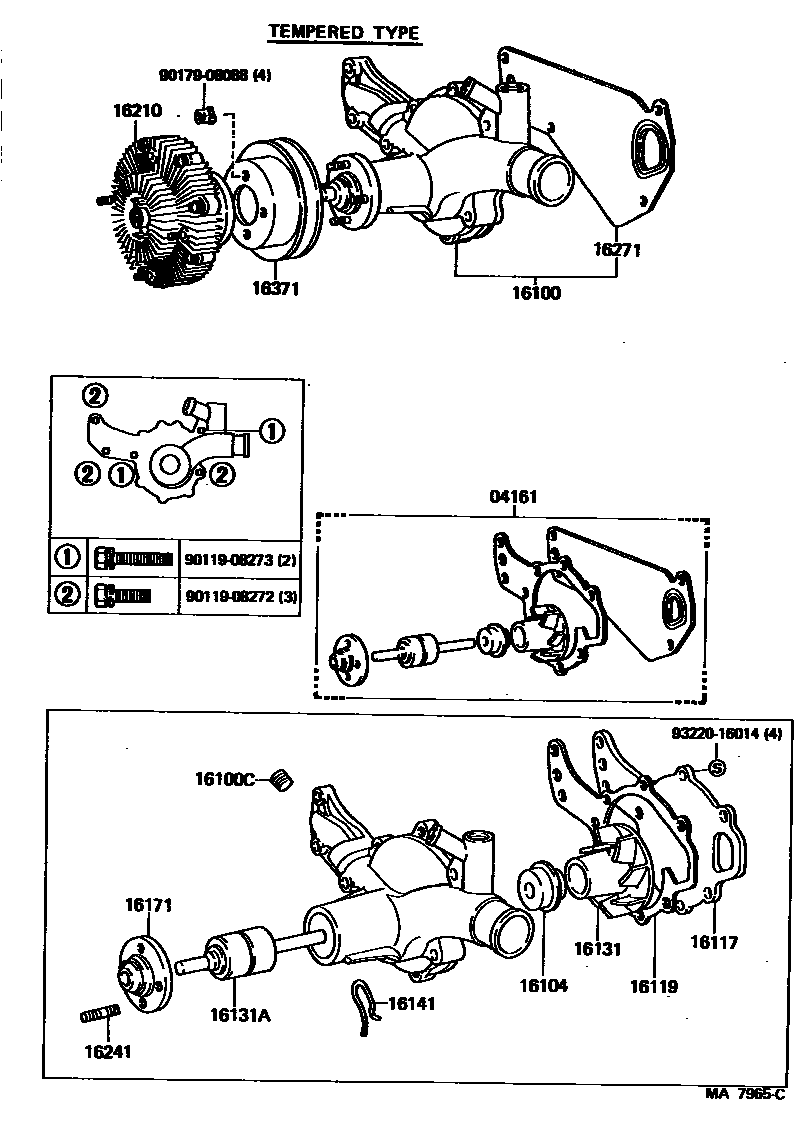

WATER PUMP

0001 1 0003 1 0004 1

04161PUMP KIT, WATER

main04161-56080i13BT,3B..BJ7#198411-199001

sub04161-56081

16100PUMP ASSY, ENGINE WATER

main16100-59105i13BT..BJ71,74198411-199001

main16100-59137i2LT..LJ71198510-199001

sub16100-59138

main16100-59185i3B..BJ70,73198808-199001

sub16100-59186

16100CPLUG, W/HEAD TAPER SCREW

main15184-15010i13BT,3B..BJ7#198411-199001

16104SEAL SET, WATER PUMP

main16104-52011i3B..BJ7#198411-198507

sub16104-52012

main16104-52013i13BT,3B..BJ7#198507-199001

16117PLATE, WATER PUMP

main16117-56040i13BT,3B..BJ7#198411-199001

main16117-58010i3B..BJ70,73198808-199001

16119GASKET, WATER PUMP BODY

main16119-56040i13BT,3B..BJ7#198411-199001

sub16119-56041

16131ROTOR, WATER PUMP

main16131-56040i13BT,3B..BJ7#198411-199001

16131ABEARING, WATER PUMP

main90369-38001i13BT..BJ71,74198411-199001

16141WIRE, WATER PUMP BEARING RETAINING

main16141-76010i13BT,3B..BJ7#198411-199001

16171SEAT, WATER PUMP PULLEY

main16171-54011i2LT..LJ71198510-199001

main16171-61071i13BT..BJ71,74198411-199001

16210COUPLING ASSY, FLUID

main16210-54070i2LT..LJ71198510-199001

main16210-56040i13BT,3B..BJ7#..MTM198411-199001

main16210-58012i13BT..BJ74..ATM198510-199001

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-13020i2LT..LJ71198510-199001

main16198-41170i13BT..BJ71,74198411-199001

16271GASKET, WATER PUMP

main16271-54012i2LT..LJ71198510-198912

sub16271-54013

main16271-54014i2LT..LJ71198912-199001

main16271-56020i13BT,3B..BJ7#198411-198808

sub16271-56030

main16271-56030i13BT,3B..BJ7#198808-199001

sub16271-56031

16371PULLEY, FAN

main16371-54020i2LT..LJ71198510-199001

main16371-56040i13BT,3B..BJ7#198411-199001

main16371-58030i3B..BJ70,73198808-199001

9011908272

main90119-08272

9011908273

main90119-08273

9017908088

main90179-08088

9322016014

main93220-16014

18 parts on this diagram · 3 diagrams in section
