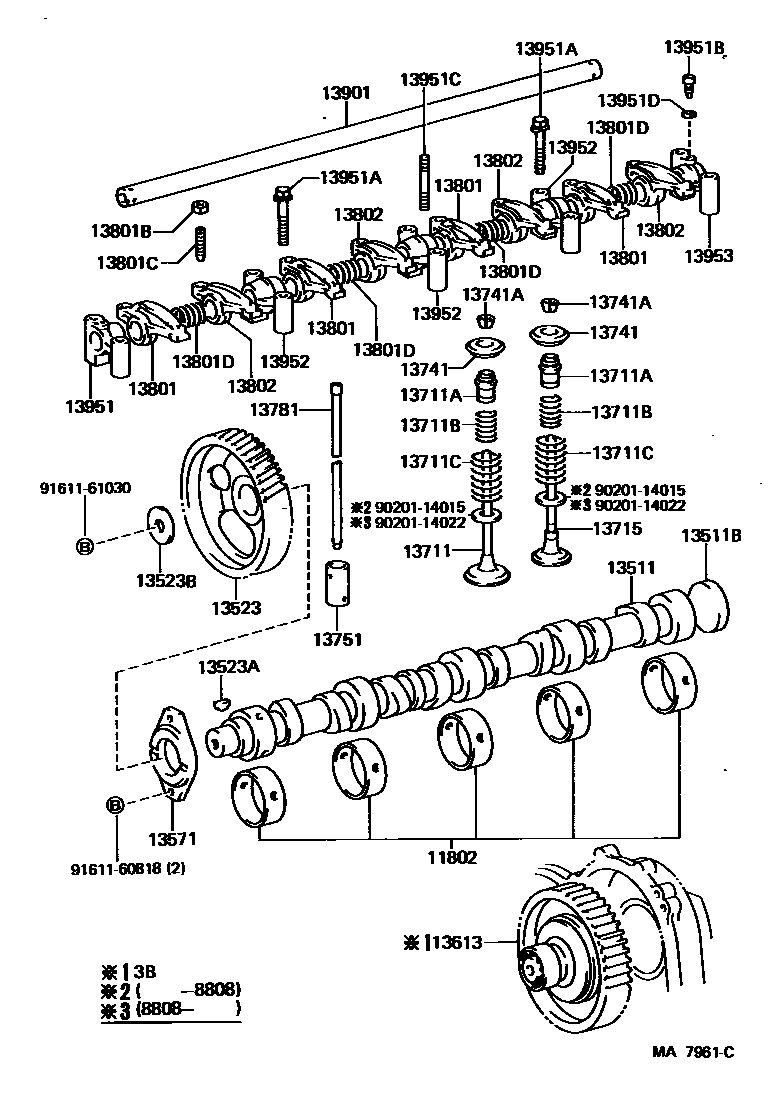

CAMSHAFT & VALVE
11802BEARING SET, CAMSHAFT
13511BPLUG, EXPANSION(FOR CAMSHAFT)
OD=56
13523GEAR OR SPROCKET, CAMSHAFT TIMING
sub13523-58010
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523BWASHER, PLATE(FOR TIMING GEAR)
13711BSPRING, COMPRESSION(FOR INNER)
13711CSPRING, COMPRESSION(FOR OUTER)
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13781ROD, VALVE PUSH
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
WD=1.6,CW=7.5
13951ABOLT(FOR ROCKER SUPPORT SET)
*8-1.25PX53-30
*8-1.25PX63-30
*8-1.25PX55-30
*8-1.25PX55-30
*8-1.25PX65-30
13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
13951CBOLT, STUD(FOR ROCKER SUPPORT)
13951DWASHER, SEAL(FOR HEAD COVER SET)
9020114015
main90201-14015
9020114022
main90201-14022
9161160818
main91611-60818
9161161030
main91611-61030
34 parts on this diagram · 3 diagrams in section
