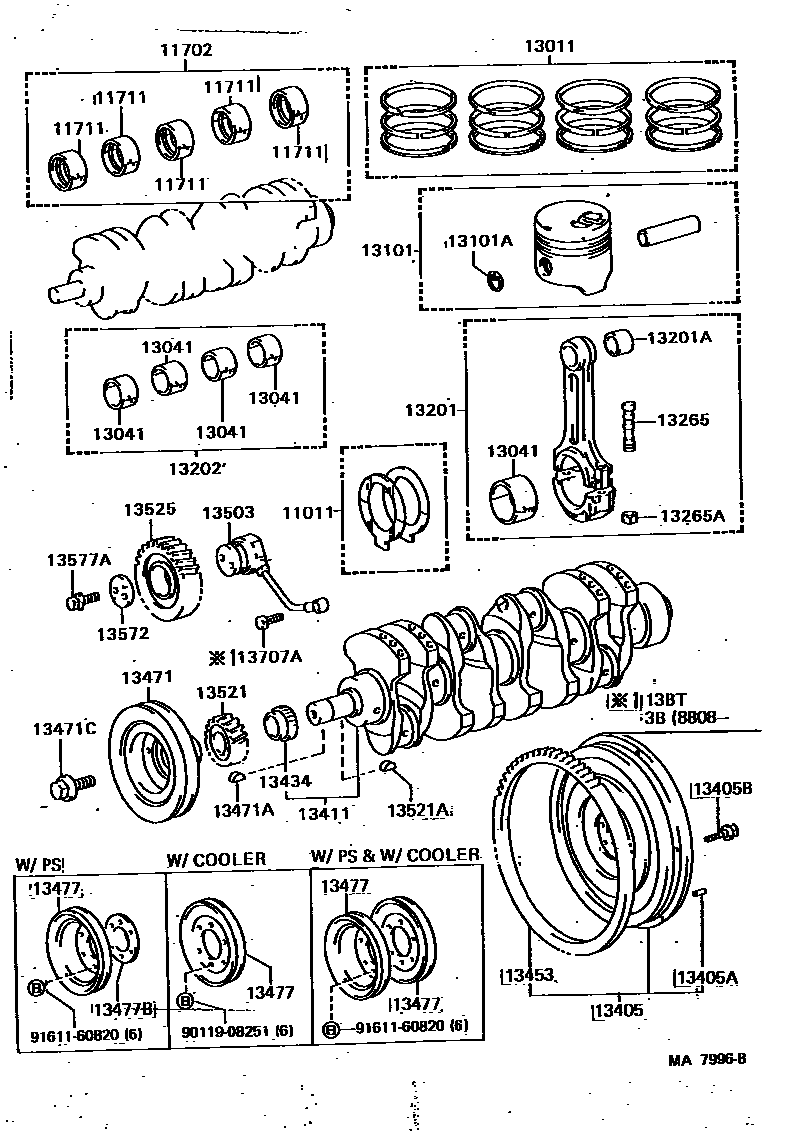

CRANKSHAFT & PISTON

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-54010i198510-198808
main11011-54020i198808-199001
main11011-56010i198411-198506
main11011-56020i198506-199001
sub11011-58020
main11012-54010i198510-198808
main11012-54020i198808-199001
main11012-56010i198411-198506
main11012-56020i198506-199001
sub11012-58020
main11013-54010i198510-198808
main11013-54020i198808-199001
main11013-56010i198411-198506
main11013-56020i198506-199001
sub11013-58020
11702BEARING SET, CRANKSHAFT
main11704-54060i198510-198803
main11704-54061i198803-199001
sub11704-54080
main11704-56020i198411-198808
main11704-56030i198808-199001
sub11704-56031
main11705-54060i198510-198803
main11705-54061i198803-199001
sub11705-54080
main11705-56020i198411-198808
main11705-56030i198808-199001
sub11705-56031
main11707-56020i198411-198808
main11707-56030i198808-199001
sub11707-56031
11711BEARING, CRANKSHAFT
main11701-54060-01×5i198510-198803
MARK"1",MARK 1
main11701-54060-02×5i198510-198803
MARK"2",MARK 2
main11701-54060-03×5i198510-198803
MARK"3",MARK 3
main11701-54061-01×5i198803-199001
MARK"1",MARK 1
sub11701-54080
main11701-54061-02×5i198803-199001
MARK"2",MARK 2
sub11701-54080
main11701-54061-03×5i198803-199001
MARK"3",MARK 3
sub11701-54080
main11701-56010-01×5i198411-198808
MARK"1",MARK 1
main11701-56010-02×5i198411-198808
MARK"2",MARK 2
main11701-56020-01×5i198808-199001
MARK"1",MARK1
sub11701-56021
main11701-56020-02×5i198808-199001
MARK"2",MARK2
sub11701-56021
13011RING SET, PISTON
main13011-54061i198510-198710
main13011-54062i198710-199001
main13011-58011i198411-198808
main13011-58040i198510-199001
main13011-58050i198808-199001
sub13011-58051
main13013-54061i198510-198710
main13013-54062i198710-199001
main13013-58050i198808-199001
sub13013-58051
main13014-58050i198808-199001
sub13014-58051
main13015-58050i198808-199001
sub13015-58051
13041BEARING, CONNECTING ROD
main13041-54040-01×4i198510-198803
MARK"1",MARK 1
main13041-54040-02×4i198510-198803
MARK"2",MARK 2
main13041-54040-03×4i198510-198803
MARK"3",MARK 3
main13041-54041-01×4i198803-199001
MARK"1",MARK 1
sub13041-54042
main13041-54041-02×4i198803-199001
MARK"2",MARK 2
sub13041-54042
main13041-54041-03×4i198803-199001
MARK"3",MARK 3
sub13041-54042
main13041-56040-01×4i198804-199001
MARK"1",MARK1
sub13041-58020
main13041-56040-02×4i198804-199001
MARK"2",MARK2
sub13041-58020
main13041-58010-01×4i198411-198804
MARK"1",MARK 1
main13041-58010-02×4i198411-198804
MARK"2",MARK 2
13101PISTON SUB-ASSY, W/PIN
main13101-54030×4i198510-198801
main13101-54030-01×4i198801-199001
main13101-54030-02×4i198801-199001
main13101-54030-03×4i198801-199001
main13101-58012×4i198411-198605
main13101-58013×4i198605-198802
main13101-58013-01×4i198802-198808
main13101-58013-02×4i198802-198808
main13101-58013-03×4i198802-198808
main13101-58030×4i198510-198802
main13101-58030-01×4i198802-199001
main13101-58030-02×4i198802-199001
main13101-58030-03×4i198802-199001
main13101-58050-01×4i198808-199001
main13101-58050-02×4i198808-199001
main13101-58050-03×4i198808-199001
main13103-54030×4i198510-199001
main13103-58050×4i198808-199001
main13104-58050×4i198808-199001
main13105-58050×4i198808-199001
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90521-31001×8i198510-199001
main90521-34002×8i198411-199001
main90521-37007×8i198510-199001
13201ROD SUB-ASSY, CONNECTING
main13201-59026×4i198510-198807
main13201-59027×4i198807-199001
main13201-59035×4i198411-198808
main13201-59065×4i198510-198808
sub13201-59066
main13201-59145×4i198808-199001
sub13201-59265
main13201-59155×4i198808-198906
main13201-59165×4i198906
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73088×4i198411-198808
main90999-73094×4i198510-198807
main90999-73100×4i198510-198903
main90999-73116×4i198808-198903
main90999-73118×4i198807-199001
main90999-73123×4i198903
sub90999-73134
main90999-73124×4i198903
13202BEARING SET, CONNECTING ROD
main13204-54040i198510-198803
main13204-54041i198803-199001
sub13204-54042
main13204-56040i198804-199001
main13204-58011i198411-198804
main13205-54040i198510-198803
main13205-54041i198803-199001
sub13205-54042
main13205-56040i198804-199001
main13205-58011i198411-198804
main13207-56040i198804-199001
main13207-58011i198411-198804
13265BOLT, CONNECTING ROD
main13265-54011×8i198510-198807
main13265-54020×8i198807-199001
sub13265-54021
main13265-58010×8i198411-198808
main13265-58020×8i198808-199001
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main13266-58010×8i198808-199001
main90170-10005×8i198510-198807
main90179-10123×8i198807-199001
main90179-12044×8i198411-198808
13405FLYWHEEL SUB-ASSY
main13405-56031i198411-198705
main13405-56032i198705-198808
main13405-58010i198510-198705
main13405-58011i198705-198808
main13405-58012i198808
main13405-58020i198808-199001
main13450-54010i198510-198805
sub13450-54030
main13450-54011i198805-198808
main13450-54020i198808-199001
sub13450-54040
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-10192×3i198411-199001
13405BBOLT, FLYWHEEL SETTING
main90105-12094×8i198510-198808
main90105-12172×8i198808-199001
main90105-13004×6i198411-198705
*13-1.5PX30-20
main90913-01015×8i198808-199001
13411CRANKSHAFT
main13401-54021i198510-198805
main13401-54023i198905-199001
main13401-56040i198808-199001
sub13401-58061
sub13041-58032
main13401-58020i198411-198808
sub13401-58021
sub90561-50001
13434SPLINE, OIL PUMP DRIVE
main13519-56010i198411-199001
13453GEAR, FLYWHEEL RING
main13453-56020i198411-199001
N=110
sub13453-56021
13471PULLEY, CRANKSHAFT
main13408-54020i198510-199001
main13470-56150i198510-198910
main13470-56151i198910-199001
main13470-56170i198411-198808
sub13470-56171
main13470-56180i198808-198910
main13470-56181i198910-199001
sub13470-58060
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-10416i198411-199001
main95161-20622i198510-199001
sub95161-30622
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-16003i198411-198910
main90105-16037i198910-199001
sub90901-19032
main90119-14005i198510-198910
*14-1.5PX40-31
main90119-14031i198910
sub90901-19028
13477PULLEY, CRANKSHAFT, NO.2
main13477-60030i198411-199001
W/POWER STEERING
main44319-35010i198510-199001
W/POWER STEERING
main88451-25020i198411-199001
W/COOLER
13477BPLATE, CRANKSHAFT PULLEY, NO.2
main13478-60010i198411-199001
W/POWER STEERING
13503SHAFT SUB-ASSY, IDLE GEAR
main13504-56030i198510-198808
main13581-56060i198411-198808
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-56030i198411-199001
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main95161-10519i198411-199001
main95161-20622i198510-199001
sub95161-30622
13525GEAR, IDLE, NO.1
main13508-56010i198411-199001
13572PLATE, IDLE GEAR THRUST
main13572-56020i198411-199001
13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
main90105-10194×2i198606-199001
main90119-10208×2i198411-198606
13707AUNION(FOR OIL PIPE, NO.1)
main90044-01010i198510-198808
main90401-10026i198808-199001
9011908251
main90119-08251
9161160820
main91611-60820
