SEAT BELT

73130BELT ASSY, FRONT SEAT LAP TYPE, RH

main73130-90807iBJ42..06S;BJ46..08S198210-198410

73140BELT ASSY, FRONT SEAT LAP TYPE, LH

main73140-90811iBJ42..06S;BJ46..08S198210-198410

73210BELT ASSY, FRONT SEAT OUTER, RH

main71801-90328iBJ41..(02S,04S)..40K198008-198210

main71801-90335iBJ4#..06S,08S198008-198210

main71801-90344iBJ4#..V198008-198110

LUXURY SPEC

main73210-90811iBJ4#..25K,35K198110-198210

LUXURY SPEC

main73210-90821iBJ4#..VKC..4F198210-198410

main73210-90823iBJ4#..5F198210-198410

LUXURY SPEC

main73210-90828iBJ4#..RB198210-198410

73220BELT ASSY, FRONT SEAT OUTER, LH

main71801-90328iBJ41..(02S,04S)..40K198008-198210

main71801-90335iBJ4#..06S,08S198008-198210

main71801-90344iBJ4#..V198008-198110

LUXURY SPEC

main73210-90811iBJ4#..VKC..(40K,50K)198110-198210

LUXURY SPEC

main73210-90821iBJ4#..VKC..4F198210-198410

main73210-90823iBJ4#..VKC..4F198210-198410

LUXURY SPEC

main73210-90828iBJ4#..RB198210-198410

73230BELT ASSY, FRONT SEAT INNER, RH

main71802-90327iBJ4#..40K,50K198008-198210

main71802-90339iBJ4#..V198008-198110

LUXURY SPEC

main73230-90805-03iBJ4#..RB198210-198410

DARK GRAY,GRAY

sub73230-90805

main73230-90805-06iBJ4#..VKC..(40K,50K)198110-198410

LUXURY SPEC,DARK BROWN,BROWN

sub73230-90805

main73230-90805-06iBJ4#..VKC..(40K,50K)198110-198410

DARK BROWN,BROWN

sub73230-90805

73240BELT ASSY, FRONT SEAT INNER, LH

main71802-90334iBJ4#..40K,50K198008-198210

main71805-90300iBJ4#..V198008-198110

LUXURY SPEC

main73240-90806-03iBJ4#..VKC..4F198210-198410

DARK GRAY,GRAY

sub73240-90806

main73240-90806-06iBJ4#..25K,35K198110-198410

DARK BROWN,BROWN

sub73240-90806

main73240-90806-06iBJ4#..25K,35K198110-198410

LUXURY SPEC,DARK BROWN,BROWN

sub73240-90806

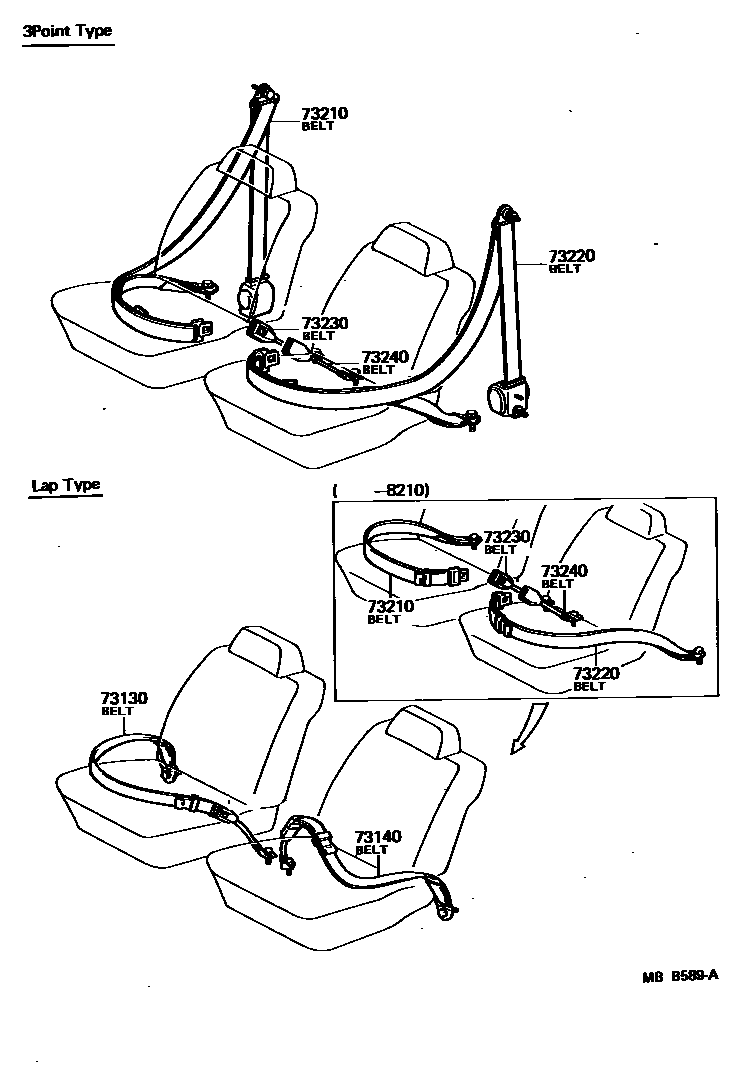

6 parts on this diagram · 1 diagram in section
