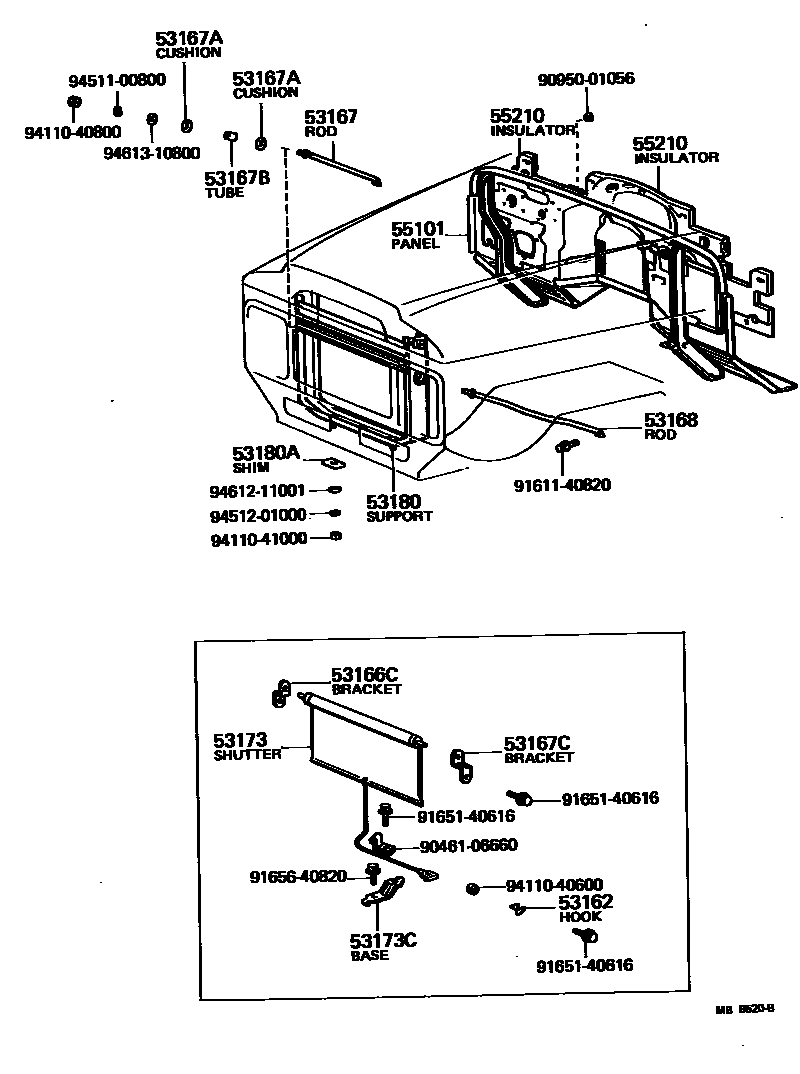

FRONT FENDER APRON & DASH PANEL

53162HOOK, RADIATOR SHUTTER

main53162-90500iBJ4#198008-198410

53166CBRACKET, RADIATOR SHUTTER SUPPORT, RH

main53166-90301iBJ4#198008-198410

53167ROD, RADIATOR BRACE, RH

main53167-60030iBJ4#198008-198410

53167ACUSHION(FOR RADIATOR BRACE ROD)

main90540-10022iBJ4#198008-198410

53167BTUBE(FOR RADIATOR BRACE ROD)

main90440-11043iBJ4#198008-198410

53167CBRACKET, RADIATOR SHUTTER SUPPORT, LH

main53167-90301iBJ4#198008-198410

53168ROD, RADIATOR BRACE, LH

main53169-60020iBJ4#198008-198410

53173SHUTTER SUB-ASSY, RADIATOR WIND

main53180-90300iBJ4#198008-198410

53173CBASE, RADIATOR SHUTTER CONTROL WIRE CLAMP

main53168-90301iBJ4#198008-198410

53180SUPPORT ASSY, RADIATOR

main53201-60011iBJ4#198008-198110

sub53201-60012

main53201-60012iBJ4#198110-198410

53180ASHIM(FOR RADIATOR SUPPORT)

main90950-04010iBJ4#198008-198410

55101PANEL SUB-ASSY, DASH

main55101-90286iBJ4#198008-198110

sub55101-90836

main55101-90836iBJ4#198110-198210

main55101-90865iBJ4#198210-198410

55210INSULATOR ASSY, DASH PANEL

main55210-90801iBJ4#..VKC198110-198410

LH

sub55210-90803

main55220-90801iBJ4#..VKC198110-198410

RH

9046106660

main90461-06660

9095001056

main90950-01056

9161140820

main91611-40820

9165140616

main91651-40616

9165640820

main91656-40820

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9451100800

main94511-00800

9451201000

main94512-01000

9461211001

main94612-11001

9461310800

main94613-10800

25 parts on this diagram · 1 diagram in section
