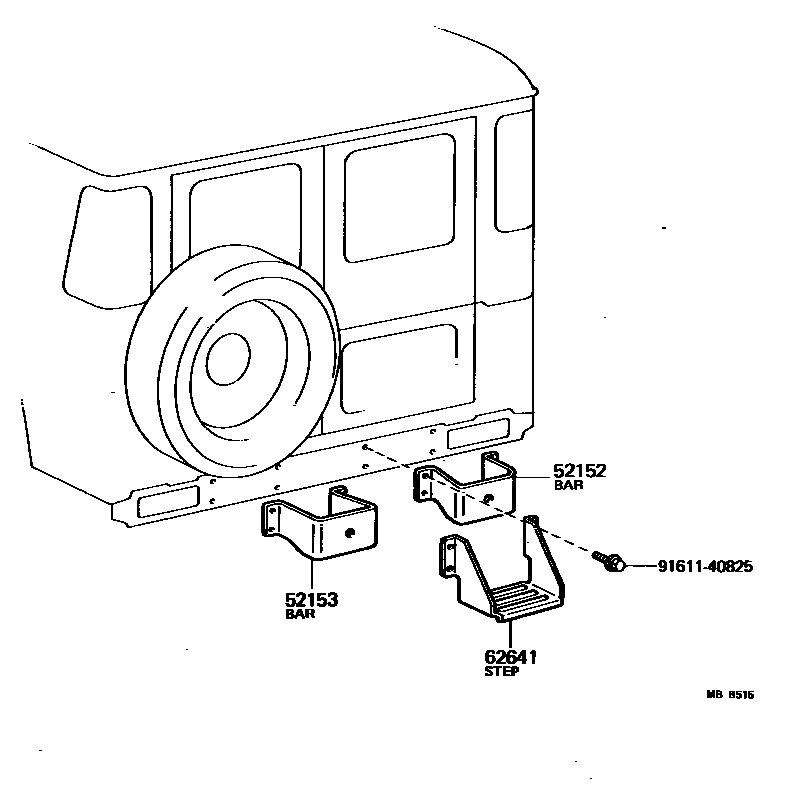

REAR BUMPER & BUMPER STAY
REAR BUMPER & BUMPER STAY
52152
BAR, REAR BUMPER, RH
main
52152-60011
i
BJ4#
198008-198410
main
52152-60040
i
BJ4#
198008-198410
W/CHROME PLATED
52153
BAR, REAR BUMPER, LH
main
52153-60011
i
BJ4#
198008-198410
main
52153-60040
i
BJ4#
198008-198410
W/CHROME PLATED
62641
STEP, REAR
main
62641-90300
i
BJ4#
198008-198410
9161140825
main
91611-40825
4 parts on this diagram · 1 diagram in section
