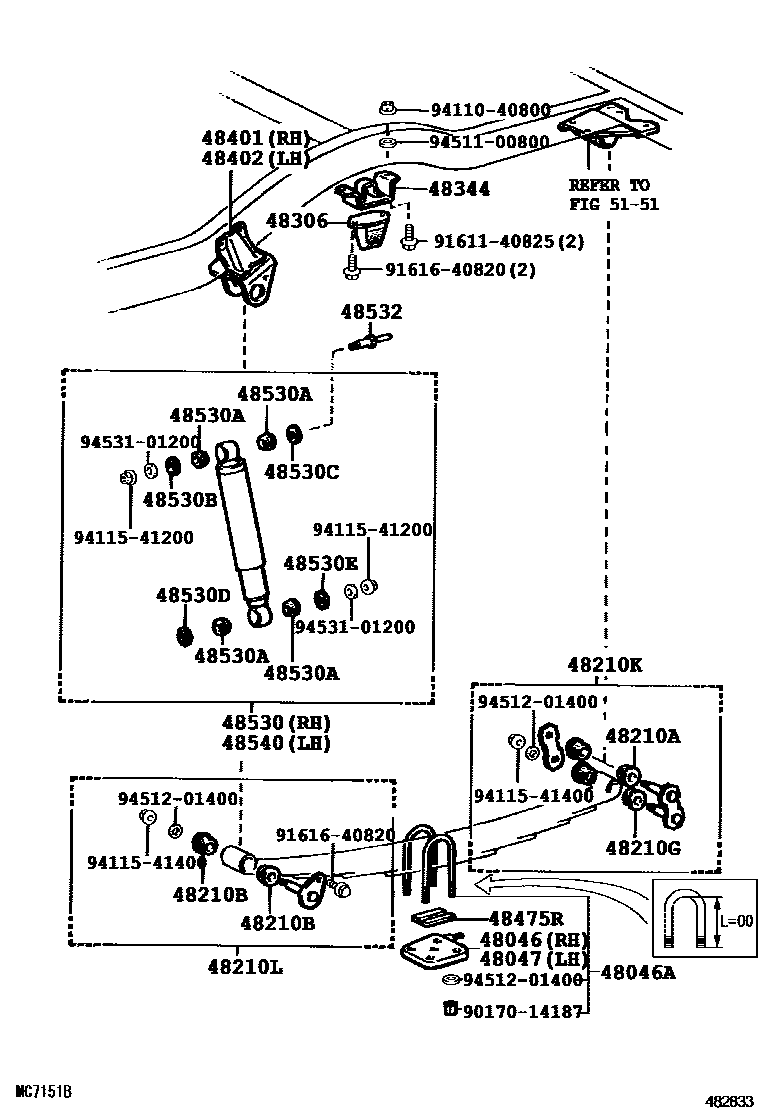

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-60032iBJ4#198008-198410

48046ABOLT, U(FOR REAR SPRING)

main90118-14106×4iBJ41,42..25K198110-198410

L=165,D=14

main90118-14107×2iBJ41,42198008-198410

L=175,D=14,W/DISTANCE PLATE

sub90117-14177

main90118-14108×4iBJ44,46..50K198008-198410

L=185,D=14

main90118-14109×2iBJ44,46..50K198008-198410

L=195,D=14,W/DISTANCE PLATE

sub90117-14179

main90118-14158×4iBJ41,42..40K198008-198410

L=170,D=14

sub90117-14001

main90118-14160×4iBJ44,46..35K198110-198410

L=180,D=14

sub90117-14004

sub90170-14187

sub94512-01400

main90118-14190×2iBJ44,46..35K198110-198410

sub90117-14021

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-60032iBJ4#198008-198410

48210SPRING ASSY, REAR RH

main48210-60101iBJ44,46..50K198008-198410

main48210-60201iBJ41,42..40K198008-198410

main48210-60360iBJ41,42..25K198110-198410

main48210-60370iBJ44,46..35K198110-198410

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90389-18002×4iBJ4#198008-198410

48210BBUSH(FOR REAR SPRING PIN)

main90389-18002×4iBJ4#198008-198410

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90389-18002×4iBJ4#198008-198410

48210KSHACKLE KIT, REAR SPRING

main04481-60020×2iBJ41,42198008-198410

main04483-60050×2iBJ44,46198008-198410

sub04483-60101

48210LPIN KIT, REAR SPRING

main04482-60040×2iBJ4#198008-198410

48306BUMPER SUB-ASSY, REAR SPRING

main48306-60010×2iBJ44,46198008-198410

main48306-60040×2iBJ41,42198008-198410

48344STOPPER, BUMPER, REAR

main48035-60010×2iBJ41,42198008-198410

main48344-60030iBJ44,46198008-198410

RH

main48354-60030iBJ44,46198008-198410

LH

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-60021iBJ4#198008-198410

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48415-60021iBJ4#198008-198410

48475RPLATE, DISTANCE(FOR REAR)

main48475-60020iBJ4#198008-198410

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-69047iBJ41,42..40K198008-198410

sub48531-69049

main48531-69057iBJ44,46..50K198008-198410

sub48531-69059

main48531-69075iBJ4#..25K,35K198110-198410

sub48531-69076

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007×8iBJ4#198008-198410

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003×2iBJ4#198008-198410

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004×2iBJ4#198008-198410

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03003×2iBJ4#198008-198410

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iBJ4#198008-198410

48532PIN, REAR SHOCK ABSORBER PIVOT

main48532-60010×2iBJ4#198008-198410

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-69047iBJ41,42..40K198008-198410

sub48531-69049

main48531-69057iBJ44,46..50K198008-198410

sub48531-69059

main48531-69075iBJ4#..25K,35K198110-198410

sub48531-69076

5151

9017014187

main90170-14187

9161140825

main91611-40825

9161640820

main91616-40820

9411040800

main94110-40800

9411541200

main94115-41200

9411541400

main94115-41400

9451100800

main94511-00800

9451201400

main94512-01400

9453101200

main94531-01200

32 parts on this diagram · 3 diagrams in section
