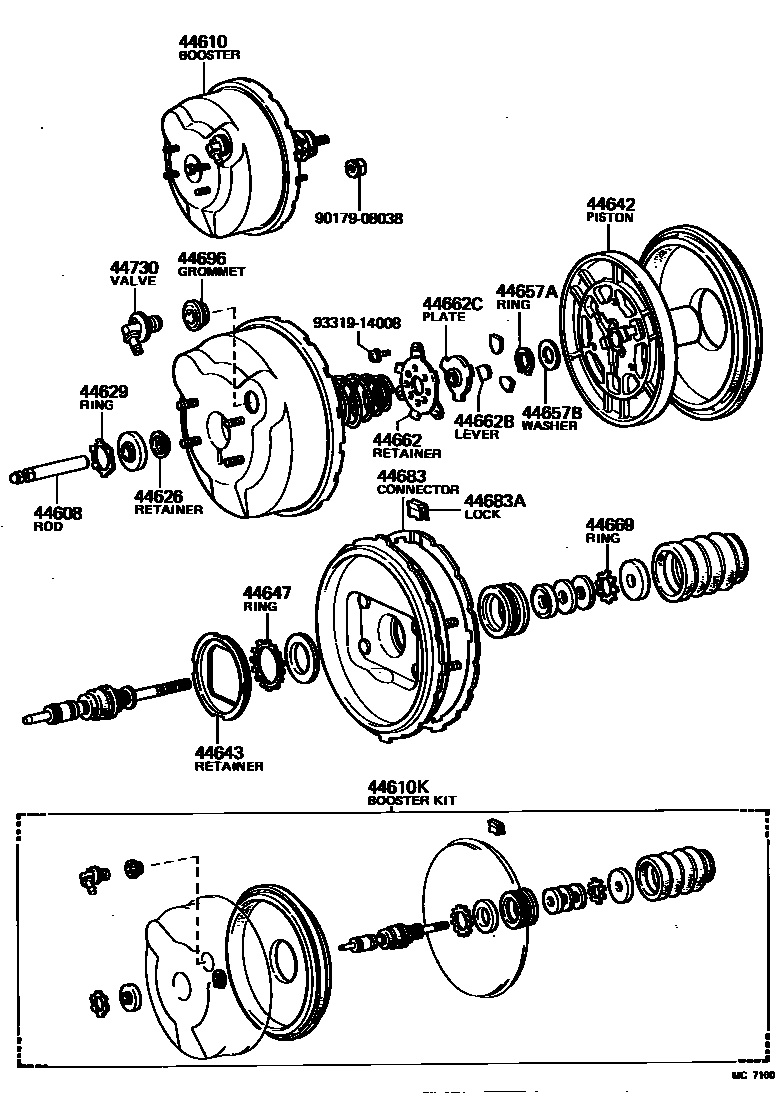

BRAKE BOOSTER & VACUUM TUBE
44608PUSH ROD SUB-ASSY, BOOSTER
44610BOOSTER ASSY, BRAKE
FR DRUM BRAKE
FR DISC BRAKE
44610KBOOSTER KIT, BRAKE
44626RETAINER, BOOSTER ROD CUP
44629RING, CIRCULAR INTERNAL
44642PISTON, BRAKE BOOSTER
44643RETAINER, DIAPHRAGM
44647RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)
44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)
44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)
44662RETAINER, REACTION, NO.1
44662BLEVER, REACTION
44662CPLATE, REACTION, NO.1
FR DISC BRAKE
FR DRUM BRAKE
44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)
44683CONNECTOR, BOOSTER BODY
44683ALOCK, CONNECTOR
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
9017908038
main90179-08038
9331914008
main93319-14008
20 parts on this diagram · 2 diagrams in section
