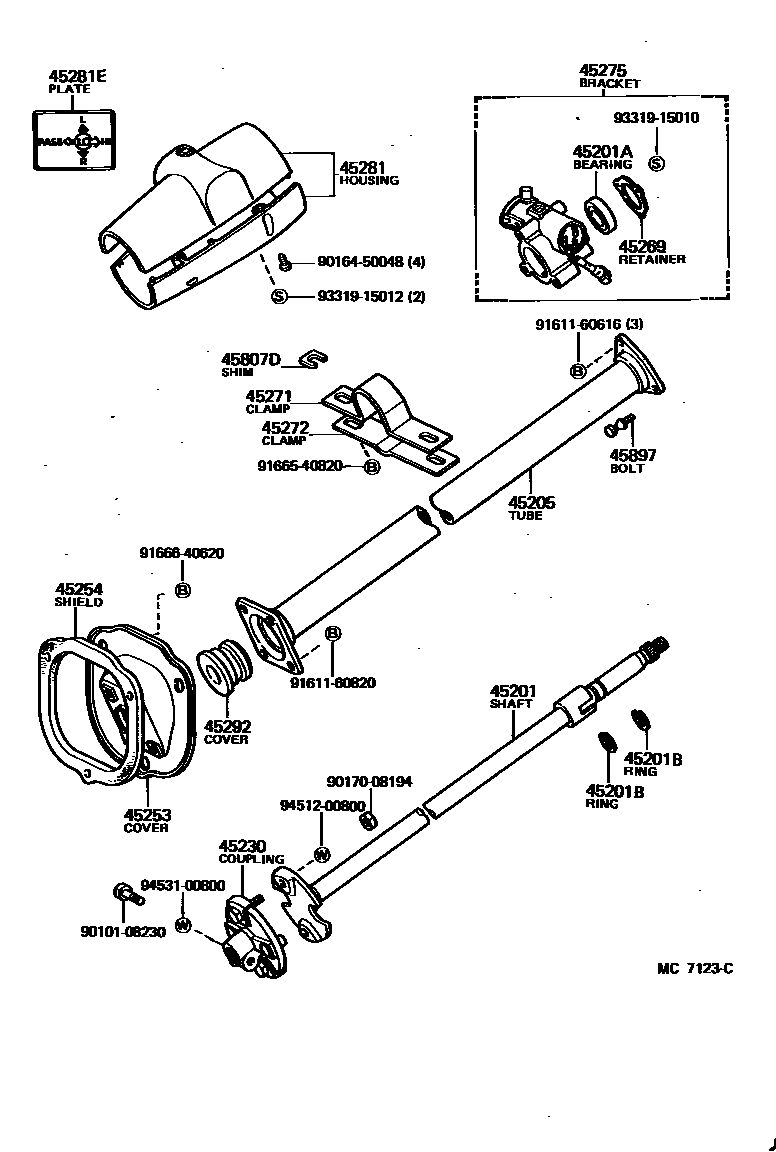

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-60034iBJ4#..40K,50K198008-198410

main45201-60071iBJ4#198110-198410

W/POWER STEERING

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iBJ4#198008-198410

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iBJ4#198008-198410

main90520-17269iBJ4#198008-198410

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-60041iBJ4#198008-198410

45230COUPLING ASSY, FLEXIBLE

main45230-36010iBJ4#198008-198410

45253COVER, STEERING COLUMN HOLE

main45253-60050iBJ4#198008-198410

45254SHIELD, STEERING COLUMN HOLE

main45254-60020iBJ4#198008-198410

45269RETAINER, MAIN SHAFT BEARING

main45269-36010iBJ4#198008-198410

45271CLAMP, STEERING COLUMN, UPPER

main55661-90800iBJ4#198008-198410

UPR

45272CLAMP, STEERING COLUMN, LOWER

main55662-90800iBJ4#198008-198410

LWR

45275BRACKET, STEERING COLUMN, UPPER

main45280-60042iBJ4#198008-198110

sub45280-60043

main45280-60062iBJ4#198110-198209

sub45280-60063

main45280-60063iBJ4#198209-198410

45281HOUSING, STEERING COLUMN

main45286-60908iBJ4#198008-198410

45281EPLATE, SAFETY CAUTION

main45283-22010iBJ4#198008-198410

45292SEAL, MAIN SHAFT LOWER DUST

main45292-60011iBJ4#198008-198410

45807DSHIM, STEERING COLUMN CLAMP

main55614-60010iBJ4#198008-198410

45897BOLT, STEERING LOCK SET

main45897-12030iBJ4#198210-198410

9010108230

main90101-08230

9016450048

main90164-50048

9017008194

main90170-08194

9161160616

main91611-60616

9161160820

main91611-60820

9166540820

main91665-40820

9166640620

main91666-40620

9331915010

main93319-15010

9331915012

main93319-15012

9451200800

main94512-00800

9453100800

main94531-00800

27 parts on this diagram · 4 diagrams in section
