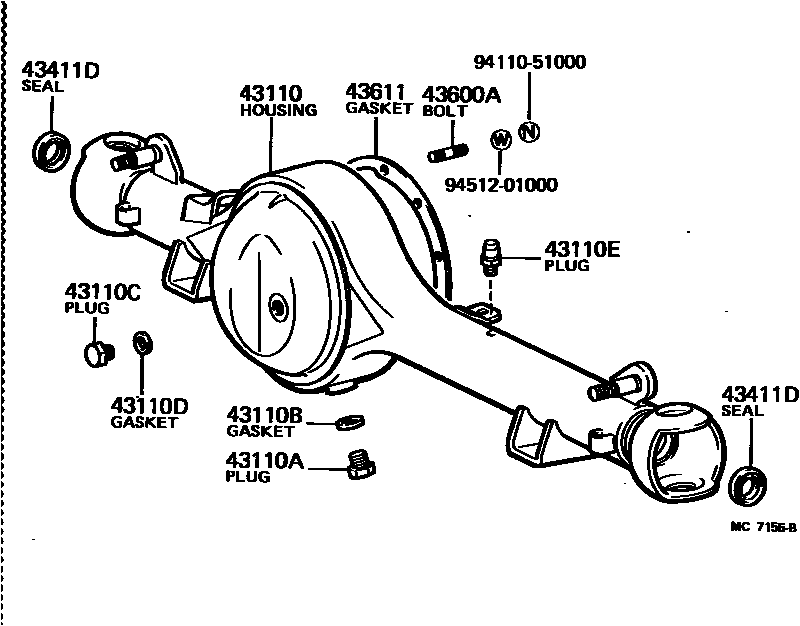

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

43110HOUSING ASSY, FRONT AXLE

main43110-60094iBJ4#198008-198410

43110APLUG SUB-ASSY, DRAIN

main90341-18057iBJ4#198008-198410

43110BGASKET, DRAIN

main12157-10010iBJ4#198008-198410

43110CPLUG (FOR FRONT AXLE HOUSING)

main90341-18049iBJ4#198008-198410

43110DGASKET (FOR FRONT AXLE HOUSING PLUG)

main12157-10010iBJ4#198008-198410

43110EPLUG, BREATHER (FOR FRONT AXLE HOUSING)

main90930-03031iBJ4#198008-198410

43411DSEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT)

main90311-33085iBJ4#198008-198410

43600CARRIER ASSY, FRONT AXLE

main41110-60016iBJ4#198008-198408

*AXC=K082,*FGR=37:9

main41110-60017iBJ4#198408-198410

*AXC=K082,*FGR=37:9

sub41110-60018

43600ABOLT, STUD (FOR FRONT AXLE DIFFERENTIAL CARRIER SETTING)

main90116-10074iBJ4#198212-198410

main90116-10075iBJ4#198212-198410

main90116-10103iBJ4#198008-198212

main90116-10104iBJ4#198008-198212

sub90116-10075

43611GASKET, FRONT AXLE DIFFERENTIAL CARRIER

main42181-36010iBJ4#198008-198410

sub42181-60060

9411051000

main94110-51000

9451201000

main94512-01000

12 parts on this diagram · 2 diagrams in section
