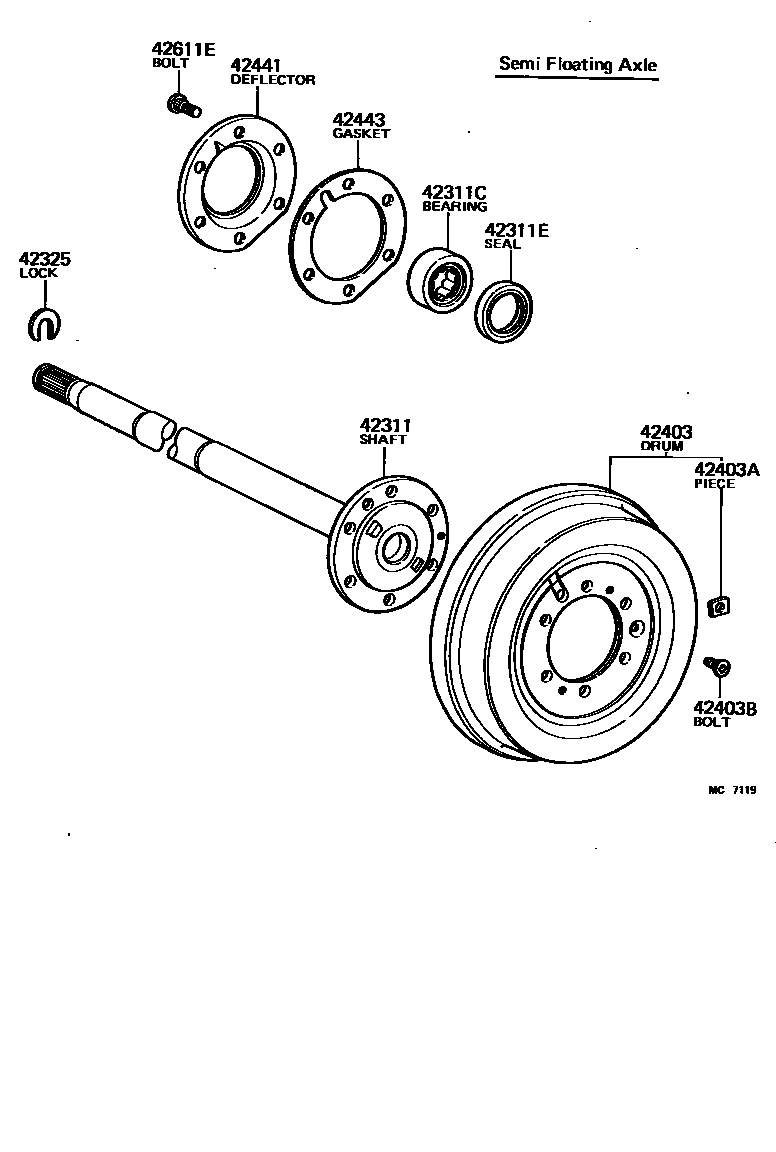

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311SHAFT, REAR AXLE

main42311-60052iBJ4#198201-198410

RH,FULL FLOATING AXLE

sub42311-60053

sub90310-36003

main42311-60060iBJ4#198008-198410

RH,SEMI FLOATING AXLE

sub42311-60061

main42312-60042iBJ4#198201-198410

LH,FULL FLOATING AXLE

sub42312-60043

sub90310-36003

main42312-60070iBJ4#198008-198410

LH,SEMI FLOATING AXLE

42311CBEARING(FOR REAR AXLE SHAFT)

main90365-47013iBJ4#198008-198410

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90310-35001iBJ4#198201-198410

FULL FLOATING AXLE

main90311-47001iBJ4#198008-198410

SEMI FLOATING AXLE

42325LOCK, REAR AXLE SHAFT

main42325-55010iBJ4#198008-198410

42403DRUM SUB-ASSY, REAR BRAKE

main42431-60020iBJ4#198008-198410

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iBJ4#198008-198410

main90937-01118iBJ4#198008-198410

main90937-01119iBJ4#198008-198410

main90937-01120iBJ4#198008-198410

main90937-01121iBJ4#198008-198410

main90937-01122iBJ4#198008-198410

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10003iBJ4#198008-198410

42441DEFLECTOR, BRAKE DRUM OIL

main42441-30010iBJ4#198008-198410

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-55020iBJ4#198008-198410

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02034iBJ4#198008-198410

sub90942-02052

10 parts on this diagram · 2 diagrams in section
