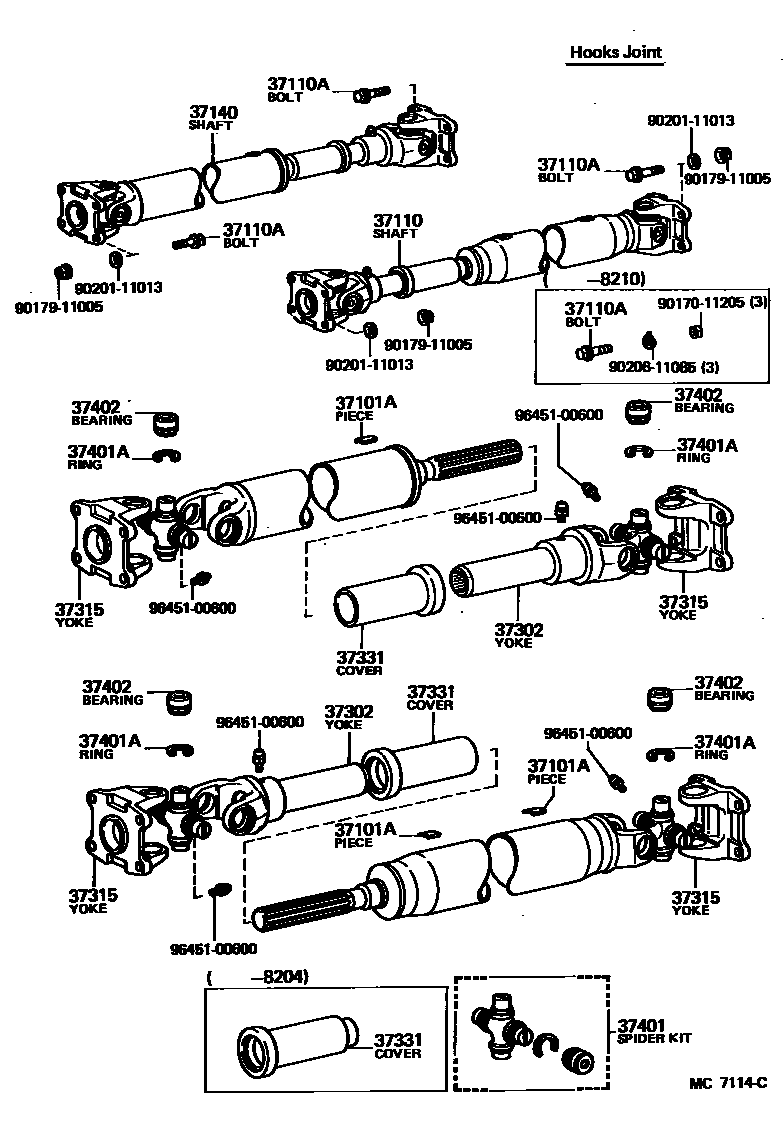

PROPELLER SHAFT & UNIVERSAL JOINT
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
37110SHAFT ASSY, PROPELLER
37140SHAFT ASSY, PROPELLER, FRONT
HOOKS JOINT
CONSTANT VELOCITY JOINT
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
HOOKS JOINT
CONSTANT VELOCITY JOINT
37331COVER, SLIDING SHAFT DUST
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
9017011205
main90170-11205
9017911005
main90179-11005
9020111013
main90201-11013
9020611085
main90206-11085
9645100600
main96451-00600
15 parts on this diagram · 2 diagrams in section
