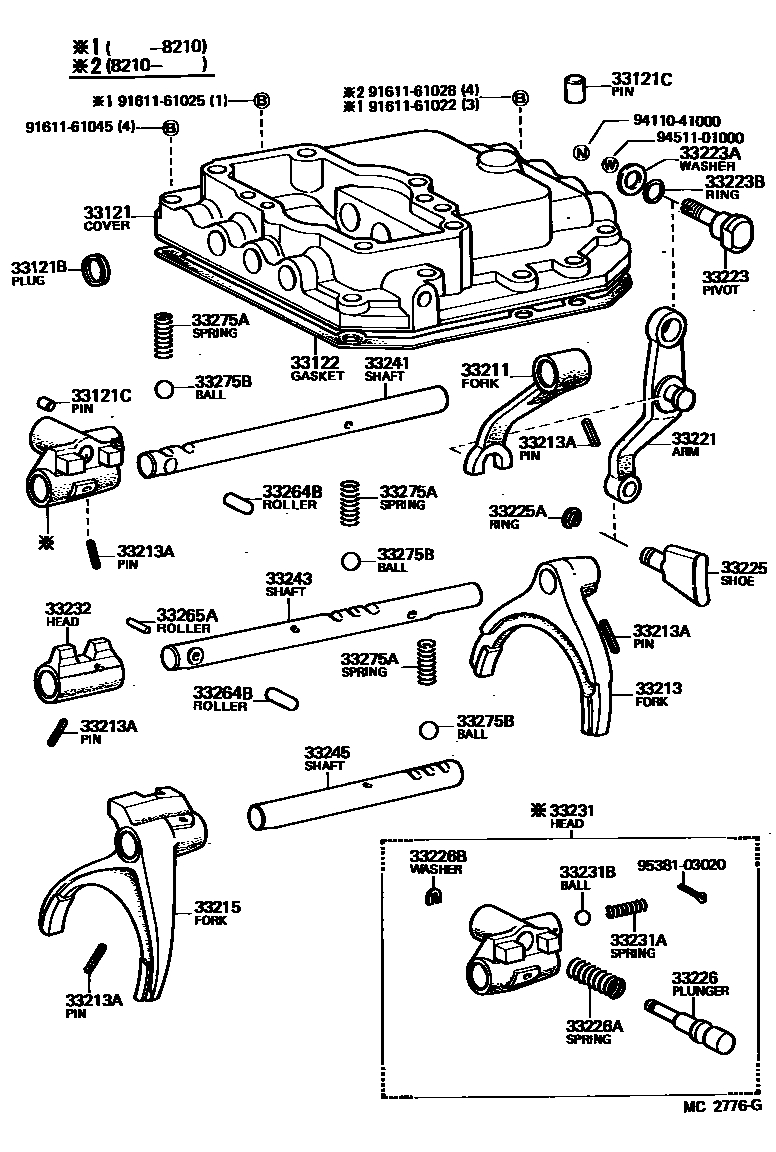

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33121COVER, MANUAL TRANSMISSION CASE
33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)
33121CPIN(FOR TRANSMISSION CASE COVER)
33122GASKET, MANUAL TRANSMISSION CASE COVER
33211FORK, REVERSE SHIFT
33213FORK, 1ST & 2ND SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33221ARM, REVERSE SHIFT
33223BRING, O(FOR SHIFT ARM PIVOT)
33225SHOE, SHIFT ARM
33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)
33226PLUNGER, REVERSE SHIFT RETURN
33226ASPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER)
33226BWASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER)
33231HEAD, REVERSE SHIFT
33231ASPRING, REVERSE SHIFT RESTRICT
33231BBALL, REVERSE SHIFT RESTRICT
33232HEAD, 1ST & 2ND SHIFT
33241SHAFT, REVERSE SHIFT FORK
33243SHAFT, 1ST & 2ND SHIFT FORK
33245SHAFT, 3RD & 4TH SHIFT FORK
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
33265AROLLER, NO.2 (FOR INTERLOCK)
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
33275BBALL, SHAFT DETENT
9161161022
main91611-61022
9161161025
main91611-61025
9161161028
main91611-61028
9161161045
main91611-61045
9411041000
main94110-41000
9451101000
main94511-01000
9538103020
main95381-03020
35 parts on this diagram · 2 diagrams in section
