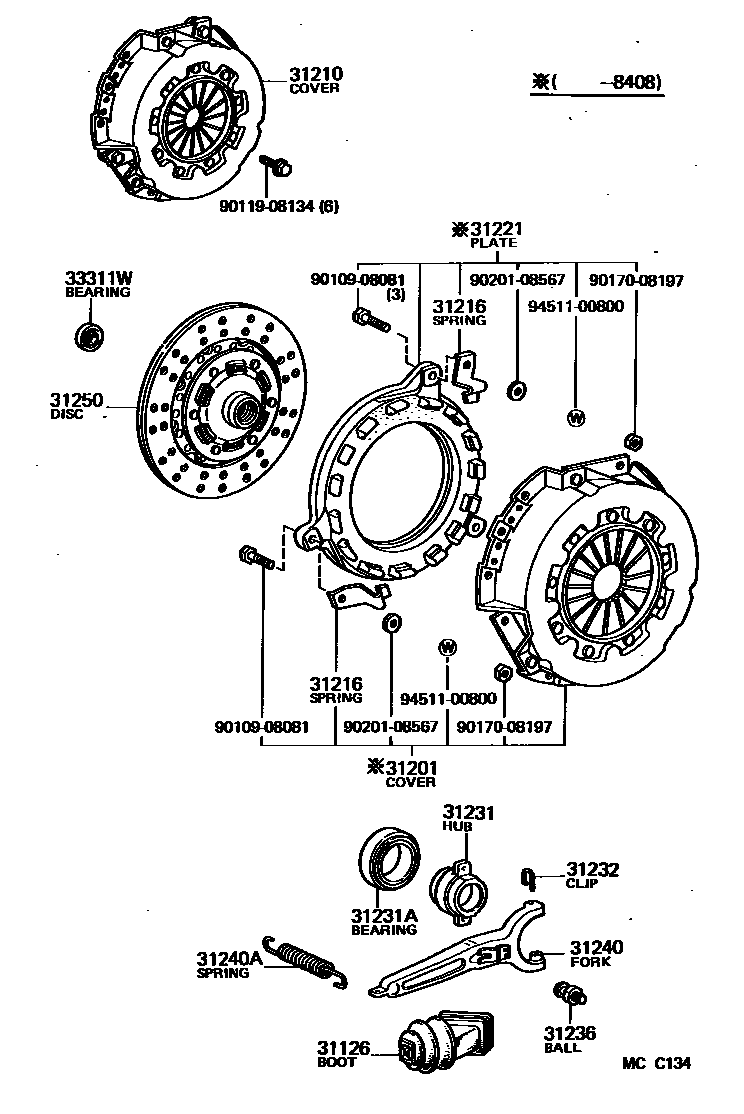

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-36030iBJ4#198008-198410

31201COVER SUB-ASSY, CLUTCH

main31201-39097iBJ4#198008-198408

31210COVER ASSY, CLUTCH

main31210-36072iBJ4#198008-198410

sub31210-36073

31216SPRING, CLUTCH RETRACTING

main31216-36010×3iBJ4#198008-198408

31221PLATE, CLUTCH PRESSURE

main31221-39085iBJ4#198008-198408

sub31221-39145

31231HUB, CLUTCH RELEASE BEARING

main31231-60060iBJ4#198008-198410

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-45001iBJ4#198008-198202

main90363-45002iBJ4#198202-198410

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-60020×2iBJ4#198008-198410

31236BALL, RELEASE FORK

main31236-36010iBJ4#198008-198410

31240FORK ASSY, CLUTCH RELEASE

main31204-60050iBJ4#198008-198410

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-16297iBJ4#198008-198410

31250DISC ASSY, CLUTCH

main31250-36113iBJ4#198110-198405

main31250-60040iBJ4#198008-198110

main31250-60090iBJ4#198405-198410

sub31250-36280

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iBJ4#198008-198410

sub90363-12024

9010908081

main90109-08081

9011908134

main90119-08134

9017008197

main90170-08197

9020108567

main90201-08567

9451100800

main94511-00800

18 parts on this diagram · 1 diagram in section
