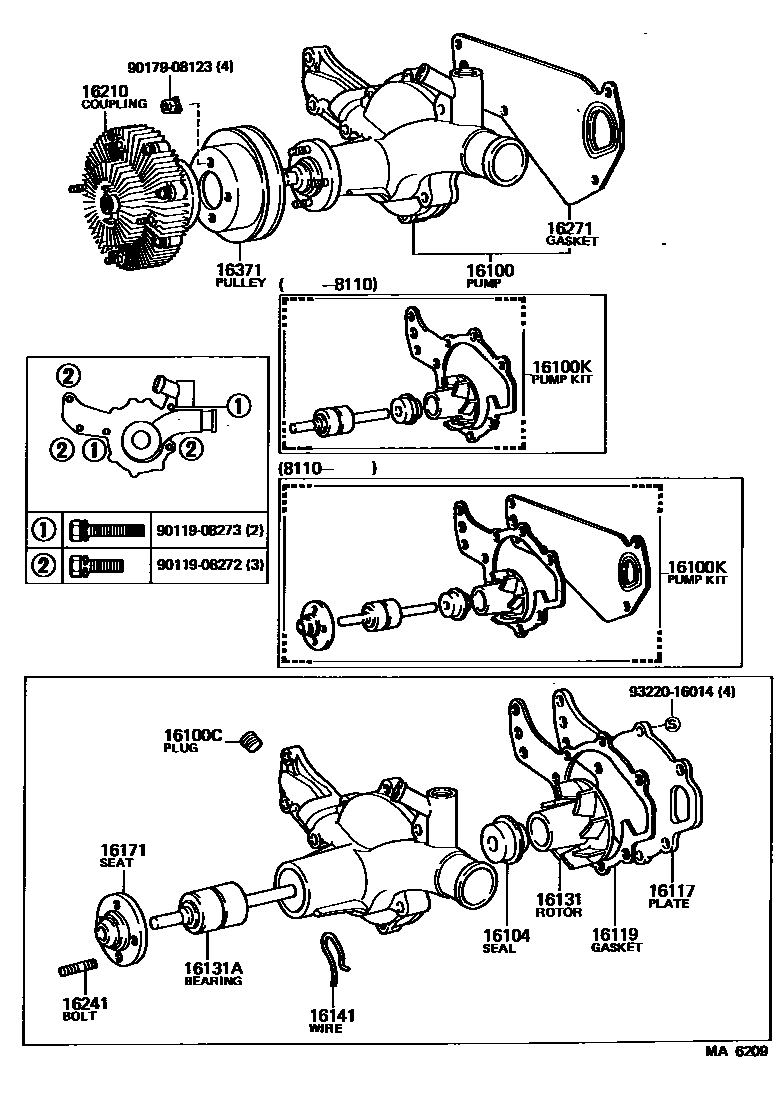

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-59095i2B..BJ4#198008-198110

sub16100-59096

main16100-59105i2B,3B..BJ4#198110-198410

16100CPLUG, W/HEAD TAPER SCREW

main15184-15010i2B,3B..BJ4#198008-198410

16100KPUMP KIT, WATER

main04161-56050i2B..BJ4#198008-198110

sub04161-56051

main04161-56080i2B,3B..BJ4#198110-198410

sub04161-56081

16104SEAL SET, WATER PUMP

main16104-41111i2B..BJ4#198008-198110

main16104-52011i2B,3B..BJ4#198110-198410

sub16104-52012

16117PLATE, WATER PUMP

main16117-56040i2B,3B..BJ4#198008-198410

16119GASKET, WATER PUMP BODY

main16119-56040i2B,3B..BJ4#198008-198410

sub16119-56041

16131ROTOR, WATER PUMP

main16131-56020i2B..BJ4#198008-198110

main16131-56040i2B,3B..BJ4#198110-198410

16131ABEARING, WATER PUMP

main90369-30028i2B..BJ4#198008-198110

main90369-38001i2B,3B..BJ4#198110-198410

16141WIRE, WATER PUMP BEARING RETAINING

main16141-60010i2B..BJ4#198008-198110

main16141-76010i2B,3B..BJ4#198110-198410

16171SEAT, WATER PUMP PULLEY

main16171-38022i2B..BJ4#198008-198110

main16171-61071i2B,3B..BJ4#198110-198410

16210COUPLING ASSY, FLUID

main16210-56020i2B..BJ4#198008-198110

main16210-56040i2B,3B..BJ4#198110-198410

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-33030i2B..BJ4#198008-198110

main16198-41170i2B,3B..BJ4#198110-198410

16271GASKET, WATER PUMP

main16271-56020i2B,3B..BJ4#198008-198410

sub16271-56030

16371PULLEY, FAN

main16371-56030i2B..BJ4#198008-198110

main16371-56040i2B,3B..BJ4#198110-198410

9011908272

main90119-08272

9011908273

main90119-08273

9017908123

main90179-08123

9322016014

main93220-16014

18 parts on this diagram · 1 diagram in section
