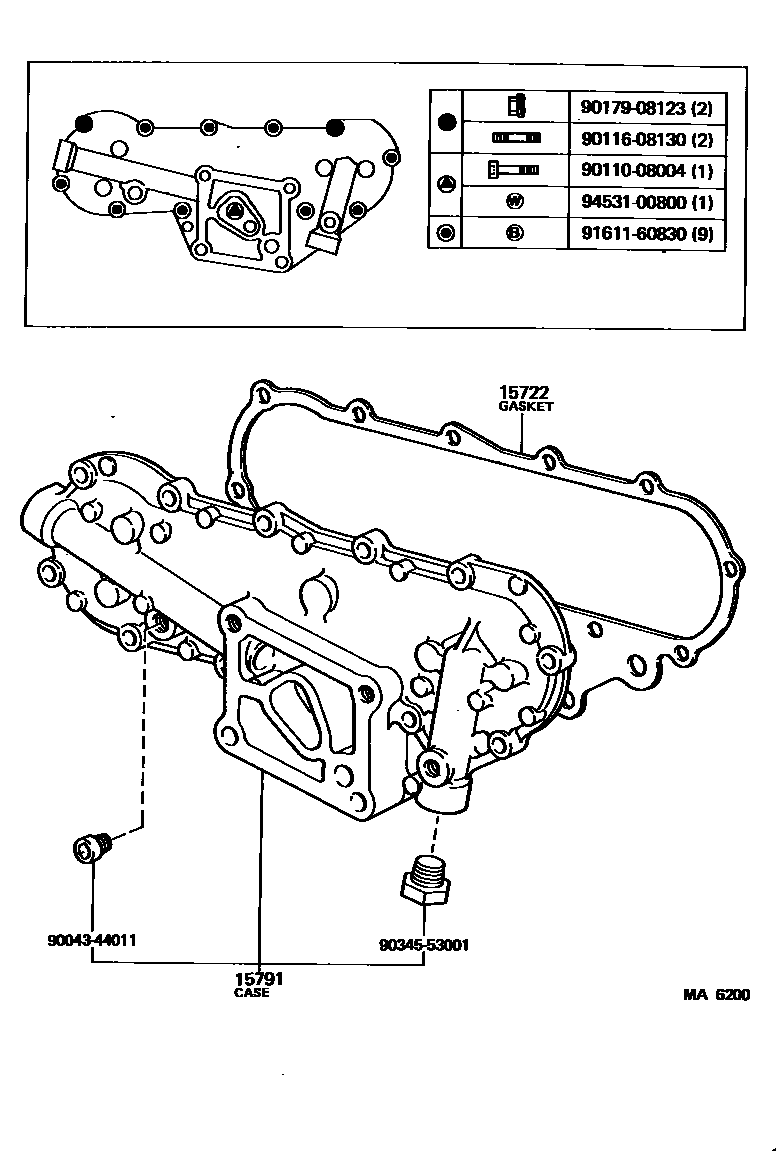

ENGINE OIL COOLER

0001 1 0002 1

15722GASKET, OIL COOLER

main15725-56010i2B,3B..BJ4#198008-198403

sub15725-56011

main15725-56011i3B..BJ4#198403-198410

sub15725-56020

15791CASE, OIL COOLER

main15701-56010i3B..BJ4#198210-198403

sub15701-56011

main15701-56011i3B..BJ4#198403-198410

main15701-56020i2B..BJ4#198008-198210

sub15701-56021

9004344011

main90043-44011

9011008004

main90110-08004

9011608130

main90116-08130

9017908123

main90179-08123

9034553001

main90345-53001

9161160830

main91611-60830

9453100800

main94531-00800

9 parts on this diagram · 2 diagrams in section
