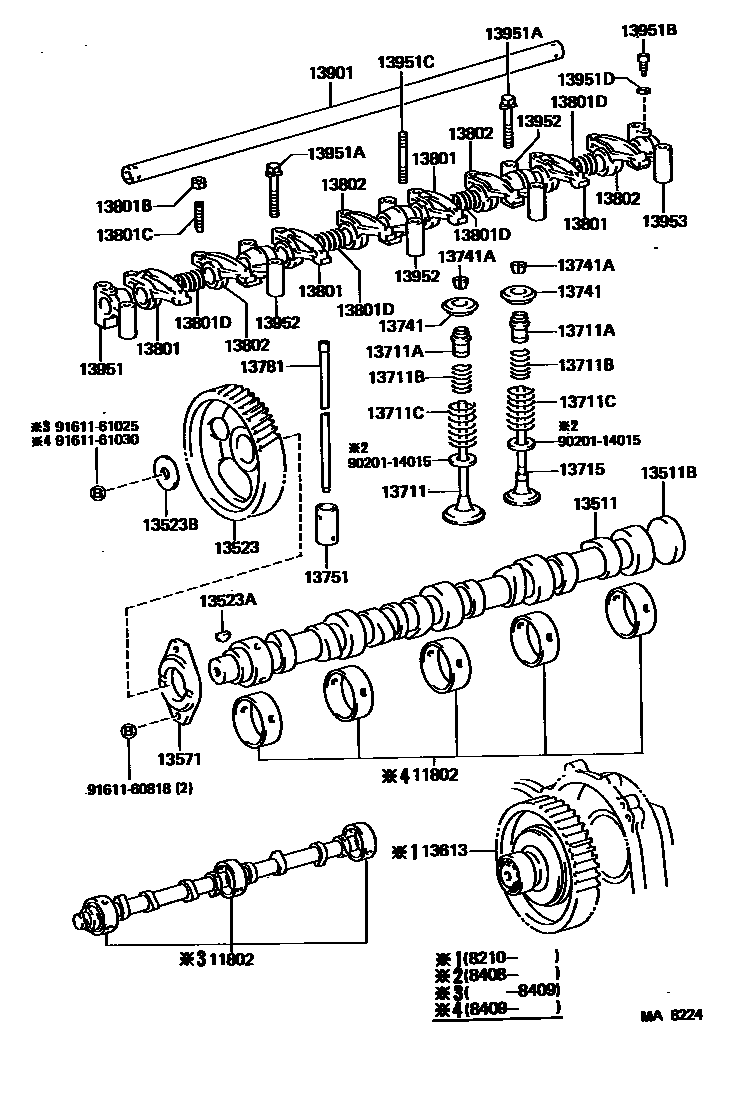

CAMSHAFT & VALVE

11802BEARING SET, CAMSHAFT

main11802-56011i2B,3B..BJ4#198008-198408

STD

main11802-56020i3B..BJ4#198408-198410

13511CAMSHAFT

main13511-56010i2B,3B..BJ4#198008-198408

main13511-56030i3B..BJ4#198408-198410

13511BPLUG, EXPANSION(FOR CAMSHAFT)

main90331-51032i2B,3B..BJ4#198008-198408

OD=51

main90331-56001i3B..BJ4#198408-198410

OD=56

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-56030i2B,3B..BJ4#198008-198408

N=44

main13523-56040i3B..BJ4#198408-198410

sub13523-58010

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main95161-10519i2B,3B..BJ4#198008-198410

13523BWASHER, PLATE(FOR TIMING GEAR)

main90201-10227i2B,3B..BJ4#198008-198410

13571PLATE, CAMSHAFT THRUST

main13571-56010i2B,3B..BJ4#198008-198408

main13571-56020i3B..BJ4#198408-198410

sub13571-56030

13613GEAR, INJECTION PUMP DRIVE

main22407-56010i3B..BJ4#198210-198408

main22407-56020i3B..BJ4#198408-198410

sub22407-56021

13711VALVE, INTAKE

main13711-56030i2B..BJ4#198008-198210

main13711-58010i3B..BJ4#198210-198410

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02051i2B,3B..BJ4#198008-198410

13711BSPRING, COMPRESSION(FOR INNER)

main90501-23018i2B,3B..BJ4#198008-198410

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-47003i2B,3B..BJ4#198008-198410

13715VALVE, EXHAUST

main13715-56030i2B..BJ4#198008-198210

sub13715-56031

main13715-58010i3B..BJ4#198210-198410

sub13715-58011

13741RETAINER, VALVE SPRING

main13741-56020i2B,3B..BJ4#198008-198408

main13741-56021i3B..BJ4#198408-198410

13741ALOCK, VALVE SPRING RETAINER

main90913-03019i2B,3B..BJ4#198008-198410

13751LIFTER, VALVE

main13751-56011i2B,3B..BJ4#198008-198305

sub13751-56012

main13751-56012i3B..BJ4#198305-198408

main13751-56020i3B..BJ4#198408-198410

13781ROD, VALVE PUSH

main13781-31011i2B,3B..BJ4#198008-198408

main13781-56010i3B..BJ4#198408-198410

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13811-56020i2B,3B..BJ4#198008-198408

main13811-56030i3B..BJ4#198408-198410

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90041-70001i3B..BJ4#198408-198410

main90170-10074i2B,3B..BJ4#198008-198408

13801CSCREW, VALVE ADJUSTING

main90913-05007i2B,3B..BJ4#198008-198408

main90913-05021i3B..BJ4#198408-198410

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-16163i2B,3B..BJ4#198008-198410

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13812-56020i2B,3B..BJ4#198008-198408

main13812-56030i3B..BJ4#198408-198410

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-56020i2B,3B..BJ4#198008-198410

sub13901-56030

13951SUPPORT, VALVE ROCKER, NO.1

main13951-56010i2B,3B..BJ4#198008-198410

sub13951-56011

13951ABOLT(FOR ROCKER SUPPORT SET)

main91611-60855i2B,3B..BJ4#198008-198410

*8-1.25PX55-30

main91611-60865i2B,3B..BJ4#198008-198410

*8-1.25PX65-30

13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)

main13958-56010i3B..BJ4#198408-198410

main90149-60001i2B,3B..BJ4#198008-198408

sub90109-06014

13951CBOLT, STUD(FOR ROCKER SUPPORT)

main90116-08123i2B,3B..BJ4#198008-198410

L=84,S=9&29

13951DWASHER, SEAL(FOR HEAD COVER SET)

main90201-06177i2B,3B..BJ4#198008-198410

13952SUPPORT, VALVE ROCKER, NO.2

main13952-56010i2B,3B..BJ4#198008-198410

sub13952-56011

13953SUPPORT, VALVE ROCKER, NO.3

main13953-56010i2B,3B..BJ4#198008-198410

sub13953-56011

9020114015

main90201-14015

9161160818

main91611-60818

9161161025

main91611-61025

9161161030

main91611-61030

34 parts on this diagram · 1 diagram in section
