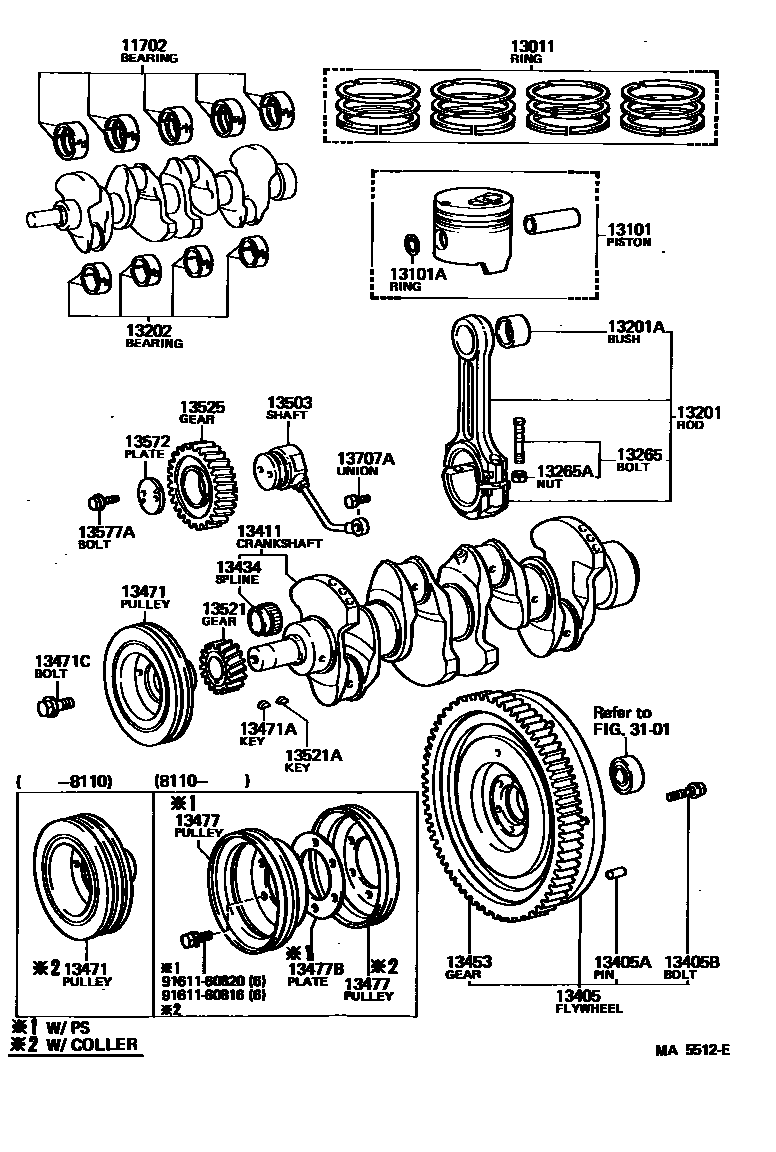

CRANKSHAFT & PISTON

0001 1 0002 1

11702BEARING SET, CRANKSHAFT

main11702-56010i2B,3B..BJ4#198008-198408

main11704-56010i3B..BJ4#198408-198410

main11705-56010i2B,3B..BJ4#198008-198408

main11707-56010i3B..BJ4#198408-198410

13011RING SET, PISTON

main13011-57010i2B..BJ4#198008-198210

STD

main13011-58010i3B..BJ4#198210-198408

main13011-58011i3B..BJ4#198408-198410

13101PISTON SUB-ASSY, W/PIN

main13101-57020×4i2B..BJ4#198008-198210

STD

main13101-58011×4i3B..BJ4#198210-198408

main13101-58012×4i3B..BJ4#198408-198410

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-33130×8i2B..BJ4#198008-198210

main90521-34002×8i3B..BJ4#198408-198410

main90521-36003×8i3B..BJ4#198210-198408

13201ROD SUB-ASSY, CONNECTING

main13201-56020×4i2B..BJ4#198008-198210

sub13201-59045

main13201-58010×4i3B..BJ4#198210-198410

sub13201-59035

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73065×4i2B..BJ4#198008-198210

sub90999-73121

main90999-73088×4i3B..BJ4#198210-198410

13202BEARING SET, CONNECTING ROD

main13202-56010i2B..BJ4#198008-198210

STD

main13202-58010i3B..BJ4#198210-198408

main13204-56010i2B..BJ4#198008-198210

U/S 0.25

main13204-58010i3B..BJ4#198210-198408

main13204-58011i3B..BJ4#198408-198410

main13205-56010i2B..BJ4#198008-198210

U/S 0.50

main13205-58010i3B..BJ4#198210-198410

main13207-56010i2B..BJ4#198008-198210

U/S 1.00

main13207-58010i3B..BJ4#198210-198408

main13207-58011i3B..BJ4#198408-198410

13265BOLT, CONNECTING ROD

main13265-58010×8i3B..BJ4#198210-198410

main13265-59015×8i2B..BJ4#198008-198210

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-11112×8i2B..BJ4#198008-198210

sub90170-11008

main90170-12010×8i3B..BJ4#198210-198402

main90179-12044×8i3B..BJ4#198402-198410

13405FLYWHEEL SUB-ASSY

main13405-56031i3B..BJ4#198406-198410

main13405-59055i2B,3B..BJ4#198008-198406

sub90105-13004

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-10192×3i2B,3B..BJ4#198008-198410

13405BBOLT, FLYWHEEL SETTING

main90105-13002×6i2B,3B..BJ4#198008-198410

13411CRANKSHAFT

main13401-56020i2B..BJ4#198008-198210

sub13401-56021

sub90561-50001

main13401-58010i3B..BJ4#198210-198408

main13401-58020i3B..BJ4#198408-198410

sub13401-58021

sub90561-50001

13434SPLINE, OIL PUMP DRIVE

main13519-56010i2B,3B..BJ4#198008-198410

13453GEAR, FLYWHEEL RING

main13453-56020i2B,3B..BJ4#198008-198410

N=110

sub13453-56021

13471PULLEY, CRANKSHAFT

main13470-56100i2B..BJ4#198008-198110

main13470-56101i2B,3B..BJ4#198110-198408

main13470-56140i2B..BJ4#..V198008-198110

W/COOLER

sub91611-60816

main13470-56170i3B..BJ4#198408-198410

sub13470-56171

sub90105-16037

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main95161-10416i2B,3B..BJ4#198008-198410

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16003i2B,3B..BJ4#198008-198410

13477PULLEY, CRANKSHAFT, NO.2

main13477-60030i2B..BJ4#198110-198210

W/PS

main88451-60020i2B,3B..BJ4#198110-198410

W/COOLER

13477BPLATE, CRANKSHAFT PULLEY, NO.2

main13478-60010i3B..BJ4#198210-198410

W/PS

13503SHAFT SUB-ASSY, IDLE GEAR

main13504-56020i2B..BJ4#198008-198210

sub13504-58010

main13581-56040i3B..BJ4#198210-198408

main13581-56060i3B..BJ4#198408-198410

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-56020i2B,3B..BJ4#198008-198408

N=22

main13521-56030i3B..BJ4#198408-198410

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-10519i2B,3B..BJ4#198008-198410

13525GEAR, IDLE, NO.1

main13508-56010i3B..BJ4#198408-198410

main13525-56010i2B,3B..BJ4#198008-198408

13572PLATE, IDLE GEAR THRUST

main13572-56010i2B,3B..BJ4#198008-198408

main13572-56020i3B..BJ4#198408-198410

13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)

main90119-10208×2i2B,3B..BJ4#198008-198410

13707AUNION(FOR OIL PIPE, NO.1)

main90044-01010i2B..BJ4#198008-198210

3101

9161160816

main91611-60816

9161160820

main91611-60820

30 parts on this diagram · 2 diagrams in section
