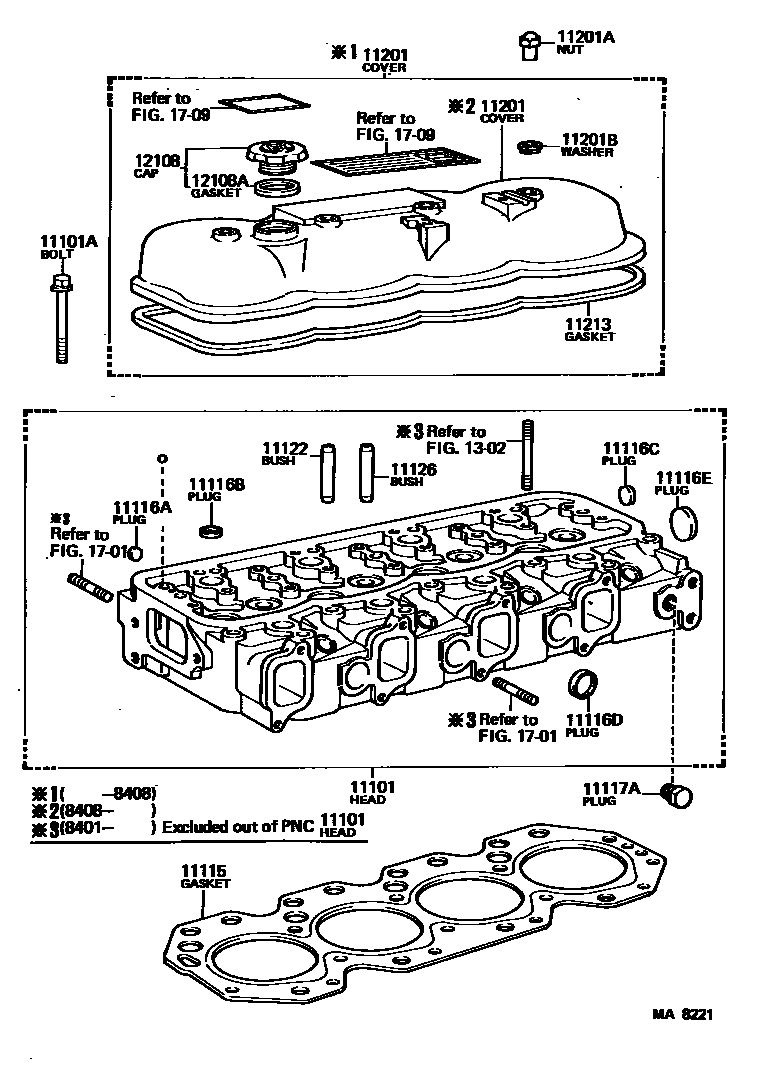

CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-58012i3B..BJ4#198401-198406

main11101-58013i3B..BJ4#198406-198410

main11101-59096i3B..BJ4#198210-198401

sub11101-58012

sub90116-08123

sub90116-10048

sub90345-54005

sub92132-60822

sub94184-61000

main11101-59105i2B..BJ4#198008-198110

sub11101-59106

main11101-59106i2B..BJ4#198110-198210

sub11101-56032

sub90116-08123

sub90116-10048

sub90345-54005

sub92132-60822

sub94184-61000

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02046i2B,3B..BJ4#198008-198410

*12-1.25PX119-25

11115GASKET, CYLINDER HEAD

main11115-56020i2B..BJ4#198008-198210

sub11115-56021

main11115-58010i3B..BJ4#198210-198308

sub11115-58011

main11115-58011i3B..BJ4#198308-198310

sub11115-58012

main11115-58012i3B..BJ4#198310-198408

sub11115-58040

main11115-58040i3B..BJ4#198408-198410

sub11115-58110

11116APLUG, TIGHT, NO.1

main96411-11200i2B,3B..BJ4#198008-198410

OD=12

sub96411-41200

11116BPLUG, TIGHT, NO.2

main96411-12500i2B,3B..BJ4#198008-198410

OD=25

sub96411-42500

11116CPLUG, TIGHT, NO.3

main90331-21001i2B,3B..BJ4#198008-198410

OD=21

11116DPLUG, TIGHT, NO.4

main96411-12800i2B,3B..BJ4#198008-198410

OD=28

sub96411-42800

11116EPLUG, TIGHT, NO.5

main90331-40024i2B,3B..BJ4#198008-198410

OD=40

sub96411-44000

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90345-54005i2B,3B..BJ4#198008-198410

11122BUSH, INTAKE VALVE GUIDE

main11122-56020i2B,3B..BJ4#198008-198308

sub11122-56021

main11122-56021i3B..BJ4#198308-198410

sub11122-56030

11126BUSH, EXHAUST VALVE GUIDE

main11122-56020i2B,3B..BJ4#198008-198308

sub11122-56021

main11122-56021i3B..BJ4#198308-198410

sub11122-56030

11201COVER SUB-ASSY, CYLINDER HEAD

main11211-56031i3B..BJ4#198408-198410

main11211-59045i2B,3B..BJ4#198008-198408

sub11211-56031

sub11213-56012

sub11278-77010

sub11293-56012

sub11293-56040

sub11293-57010

sub11293-57030

sub11293-58010

sub12180-70010

sub90210-12001

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main11295-46010i2B,3B..BJ4#198008-198410

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-12001i2B,3B..BJ4#198008-198410

11213GASKET, CYLINDER HEAD COVER

main11213-56011i2B,3B..BJ4#198008-198408

sub11213-56012

main11213-56012i3B..BJ4#198408-198410

12108CAP SUB-ASSY, OIL FILLER

main12180-13010i2B,3B..BJ4#198008-198301

main12180-70010i3B..BJ4#198301-198410

sub12108-78010

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i2B,3B..BJ4#198008-198410

1302

1701

1709

20 parts on this diagram · 1 diagram in section
