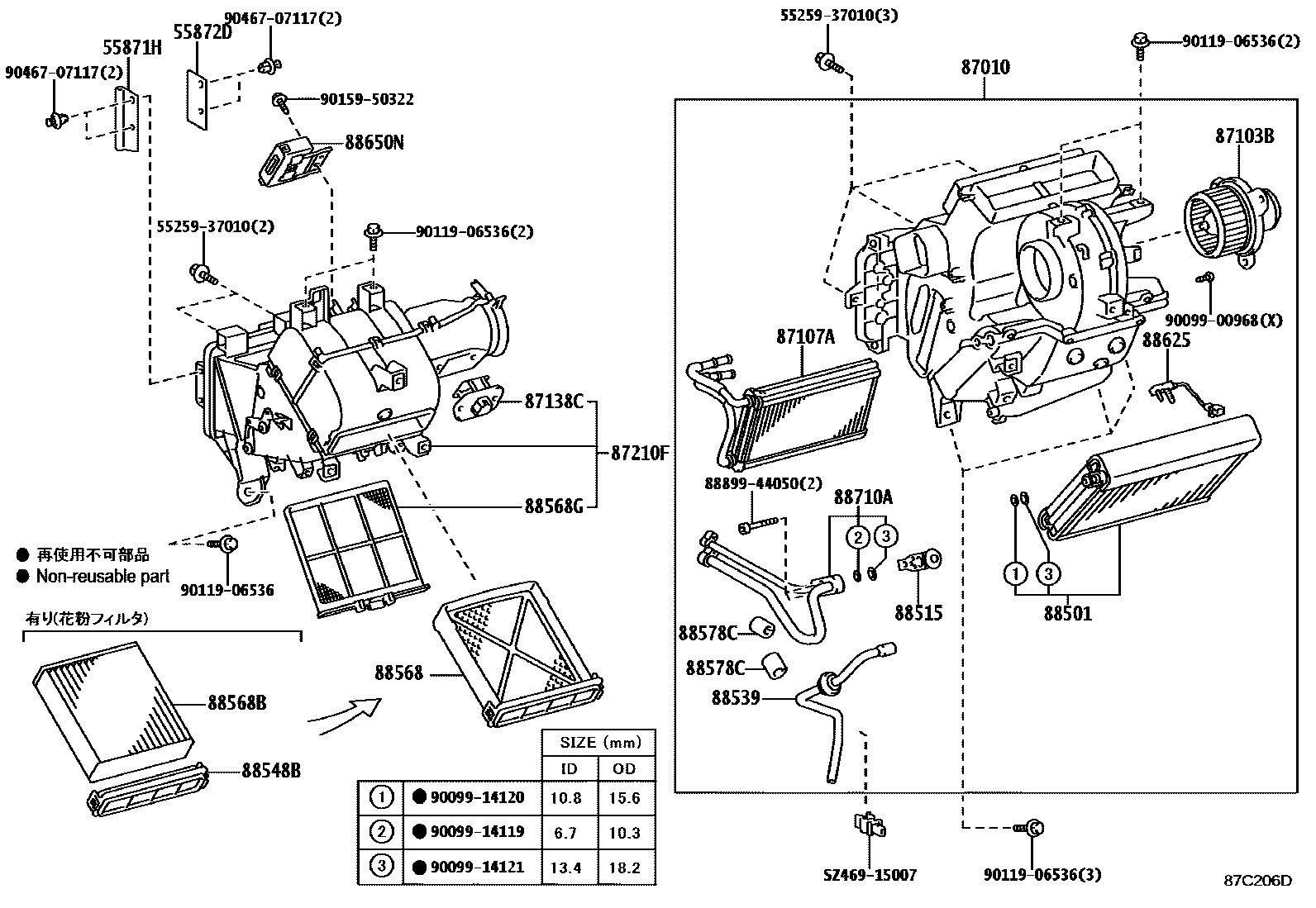

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

55871HSEAL, AIR DUCT, NO.1

main55871-37180iXKU700,710,720201107-201302

55872DSEAL, AIR DUCT, NO.2

main55872-37010iXKU700,710,720201107-201302

87010UNIT ASSY, AIR CONDITIONER

main87010-37030iXKU700,710,720201107-202404

sub87010-37031

subSZ010-44221

main87010-37031iXKU702,71#,72#..DCWDO202404

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-37020iXKU700,710,720201107-201905

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-37080iXKU700,710,720201107-201905

87138CRESISTOR, BLOWER

main87138-37230iXKU700,710,720201107-201905

87210FCASE ASSY, AIR DAMPER

main87210-37040iXKU700,710,720201107-201905

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-37110iXKU700,710,720201107-201905

88515VALVE, COOLER EXPANSION

main88515-12130iXKU700,710,720201107-201707

main88515-37030iXKU700,710,720..5F201708-201905

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-37090iXKU700,710,720201107-201905

88548BCASE, AIR FILTER

main88548-37010iXKU700,710,720201107-201905

main88548-37010iXKU702,71#,72#..DCRWD201905

88568FILTER, COOLER UNIT COVER

main88568-37010iXKU700,710,720201107-201905

88568BFILTER, AIR

main88568-37020iXKU700,710,720201107-201905

main88568-37020iXKU702,71#,72#..DCRWD201905

88568GFILTER, AIR

main88568-37030iXKU700,710,720201107-201905

88578CPACKING, COOLING UNIT, NO.2

main88578-37180iXKU700,710,720201107-201905

88625THERMISTOR, COOLER, NO.1

main88625-26090iXKU700,710,720201107-201905

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-37300iXKU700,710,720201107-201905

88710ATUBE ASSY, AIR CONDITIONER

main88710-37710iXKU700,710,720201107-201905

5525937010

main55259-37010

8889944050COVER, EVAPORATOR

main88899-44050

9009900968

main90099-00968

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906536

main90119-06536

9015950322

main90159-50322

9046707117

main90467-07117

SZ46915007

mainSZ469-15007

28 parts on this diagram · 2 diagrams in section
