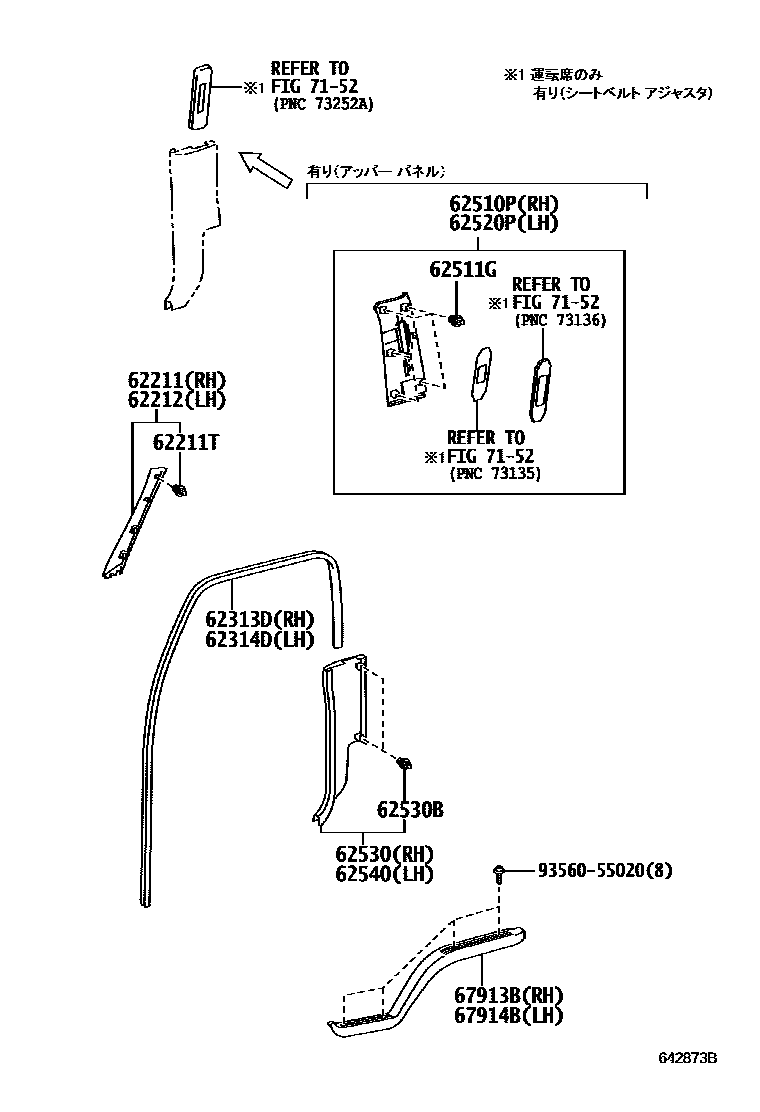

INSIDE TRIM BOARD

0001 1 0002 1�������� ���

62211GARNISH, FRONT PILLAR, RH

main62210-37030-B0iXKU702,71#,72#..6F201107-201905

GRAY,TRIM1#

main62210-37060-B0iXKU700,710,720201107-201705

main62210-37060-B0iXKU700,710,720201107-201705

main62210-37060-B0iXKU700,710,720..5F201705-201905

main62210-37060-B0iXKU700,710,720..5F201705-201905

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-13010iXKU700,710,720201107-201905

62212GARNISH, FRONT PILLAR, LH

main62220-37030-B0iXKU700,710,720201107-201905

GRAY,TRIM1#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-37070-B0iXKU700,710,720201107-201905

GRAY,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62314-37030-B0iXKU700,710,720201107-201905

GRAY,TRIM1#

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-37040-B0iXKU702,71#,72#..DCRWD201107-201905

62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-10167iXKU700,710,720201107-201905

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-37010-B0iXKU700,710,720201107-201905

62530PANEL ASSY, QUARTER TRIM, LOWER RH

main62530-37010-B0iXKU700,710,720201107-201905

GRAY,TRIM1#

62530BCLIP, QUARTER TRIM NO.1

main90467-10161iXKU700,710,720201107-201905

62540PANEL ASSY, QUARTER TRIM, LOWER LH

main62540-37010-B0iXKU700,710,720201107-201905

GRAY,TRIM1#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-37030-B0iXKU700,710,720201107-201905

GRAY,TRIM1#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-37040-B0iXKU700,710,720201107-201905

GRAY,TRIM1#

7152

9356055020

main93560-55020

15 parts on this diagram · 2 diagrams in section
