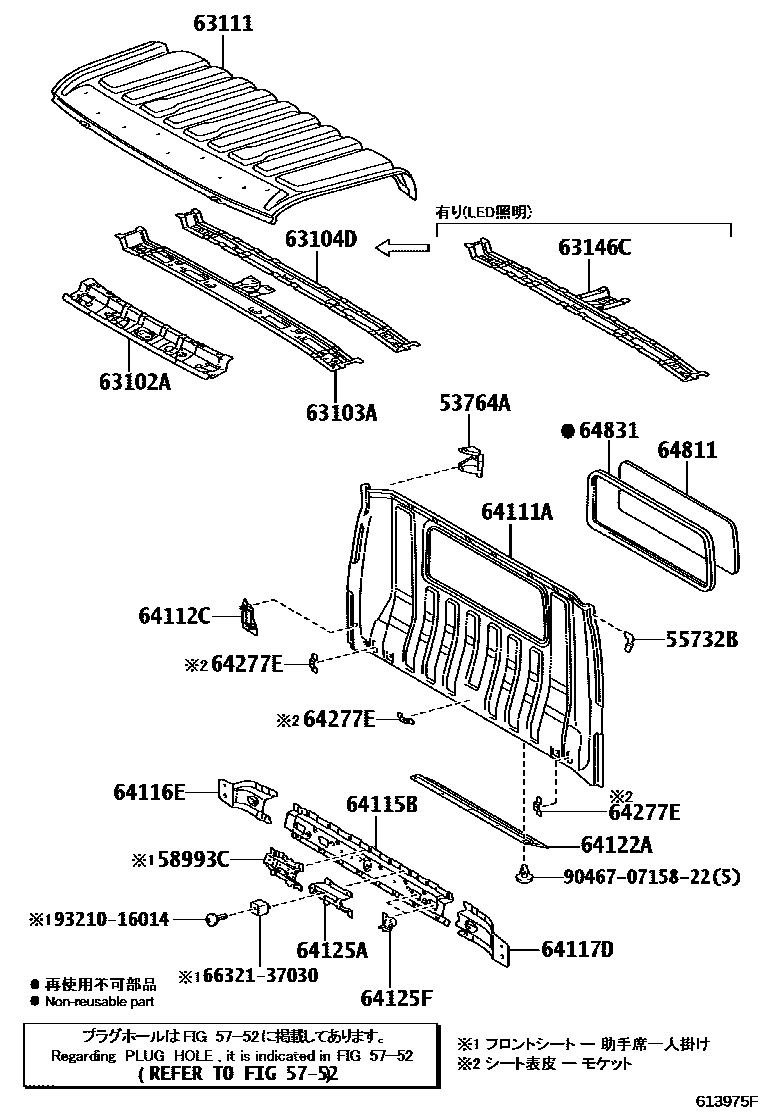

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1������ 0004 1�����������

53764ABRACKET, AIR CLEANER INLET, NO.1

main53764-37100iXKU700,710,720201107-201604

sub53764-37120

main53764-37120iXKU702,71#,72#..DCWDO201605-201905

55732BBRACKET, FRONT PANEL, NO.2

main55732-37060iXKU700,710,720..5F201107-201905

5752

58993CBRACKET, CONSOLE BOX MOUNTING, REAR

main58993-37060iXKU700,710,720201107-201705

main58993-37060iXKU700,710,720..5F201705-201905

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-37080iXKU700,710,720..5F201107-201905

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-37070iXKU700,710,720..5F201107-201905

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-37060iXKU700,710,720201107-201905

63111PANEL, ROOF

main63111-37260iXKU702,71#,72#..DCRWD201107-201905

main63111-37270iXKU700,710,720..5F..IV3201705-201905

main63111-37270iXKU700,710,720..5F..IV3201107-201905

main63111-37270iXKU700,710,720..5F..IV3201107-201905

main63111-37270iXKU700,710,720..5F..IV3201705-201905

main63111-37270iXKU702,71#,72#..DCRWD..IV3201905

main63111-37270iXKU702,71#,72#..DCWDO..IV3201209-201705

main63111-37270iXKU700,710,720..IV3201209-201705

63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63108-37010iXKU702,71#,72#..6F..IV3201107-201905

main63108-37010iXKU700,710,720..IV3201107-201905

main63108-37010iXKU700,710,720..IV3201209-201705

main63108-37010iXKU700,710,720..5F..IV3201705-201905

64111APANEL, BACK

main64111-37570iXKU700,710,720201107-201905

64112CPANEL, UPPER BACK, INNER

main64112-37030iXKU700,710,720201107-201111

sub64112-37031

main64112-37031iXKU700,710,720201112-201604

sub64112-37040

main64112-37040iXKU700,710,720201605-201905

main64112-37040iXKU702,71#,72#..DCRWD201905

main64112-37040iXKU702,71#,72#..DCRWD201905

64115BREINFORCEMENT, BACK PANEL

main64115-37210iXKU700,710,720201107-201905

64116EREINFORCEMENT, UPPER BACK, RH

main64116-37040iXKU700,710,720201107-201905

64117DREINFORCEMENT, UPPER BACK, LH

main64117-37070iXKU700,710,720201107-201905

64122ABAFFLE, DUST REAR BODY

main64122-37200iXKU700,710,720201107-201905

64125ABRACKET, UPPER BACK PANEL, RH

main64125-37060iXKU700,710,720201107-201905

64125FBRACKET, UPPER BACK PANEL

main64125-37030iXKU700,710,720201107-201905

64277EBRACKET, BACK PANEL TRIM, LOWER

main64277-37010iXKU702,71#,72#..DCWDO201107-201905

64811GLASS, BACK WINDOW

main64811-37180iXKU71#..DCRWD..CBU201905-202310

main64811-37180iXKU700,710,720201107-201705

main64811-37180iXKU700,710,720..5F201705-201905

main64811-37230iXKU71#..DCRWD..CBU201905

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37070iXKU702,71#,72#..6F201107-201912

main64831-37070iXKU702,71#,72#..DCRWD..IV3201912-202001

6632137030BUMPER, GATE RUBBER

main66321-37030

904670715822

main90467-0715822

9321016014

main93210-16014

23 parts on this diagram · 4 diagrams in section
