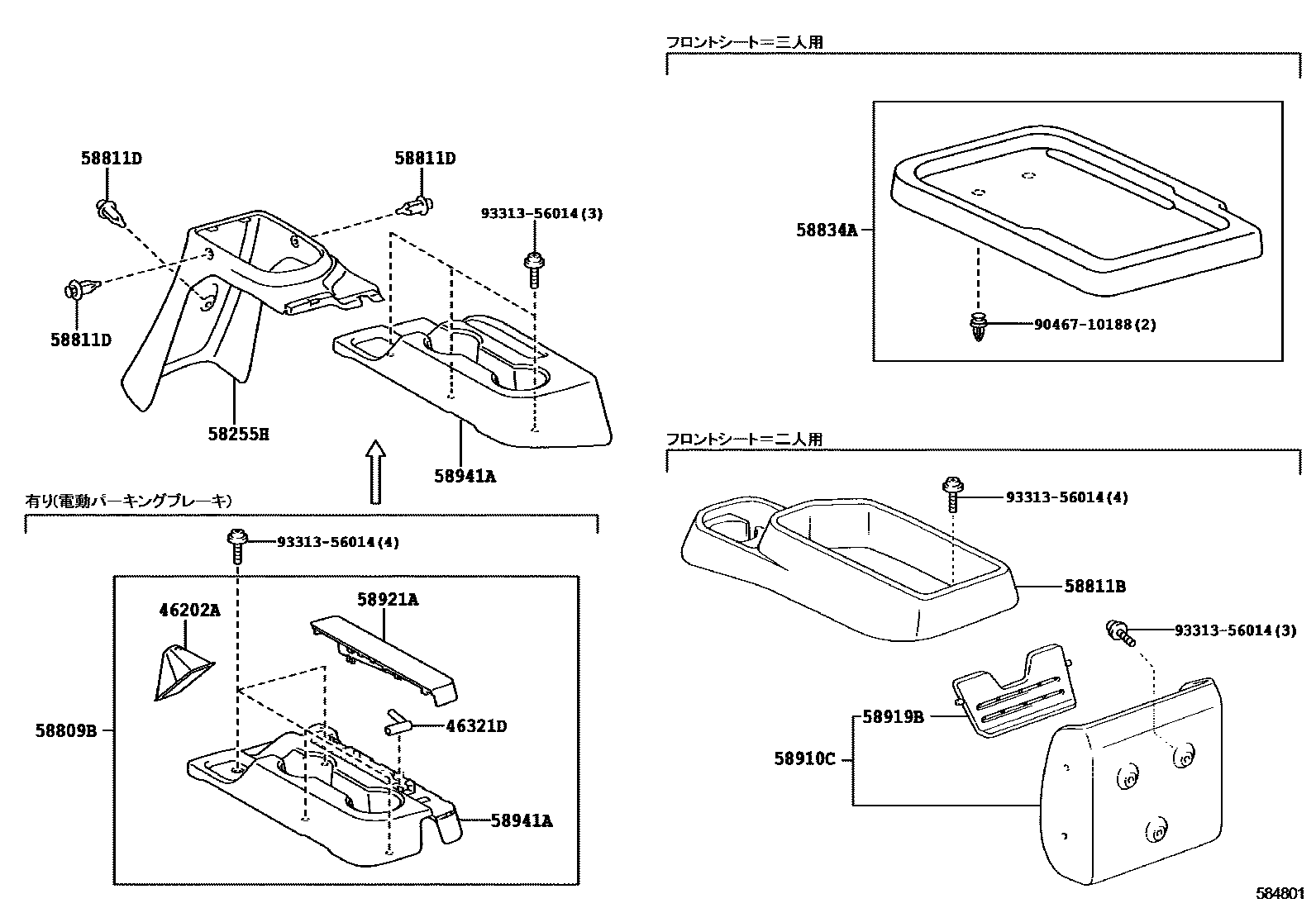

CONSOLE BOX & BRACKET

46202ABOOT SUB-ASSY, PARKING BRAKE LEVER

main46202-37010-C0iXKU700,710,720..5F201705-201905

main46202-37010-C0iXKU702,71#,72#201905-202103

main46202-37010-C0iXKU700,710,720201305-201705

main46202-37010-C0iXKU702,71#,72#..DCRWD201905

BLACK,TRIM1#

46321DLEVER, PARKING BRAKE, CENTER

main46321-37030iXKU700,710,720201305-201705

main46321-37030iXKU700,710,720..5F201705-201905

main46321-37030iXKU702,71#,72#201905-202103

main46321-37030iXKU702,71#,72#..DCRWD201905

58255HCOVER, SHIFT LEVER BOOT

main58255-37090-B0iXKU700,710,720201107-201905

GRAY,TRIM1#

58809BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58809-37020-B0iXKU700,710,720201305-201705

main58809-37020-B0iXKU700,710,720..5F201705-201905

main58809-37020-B0iXKU702,71#,72#..DCRWD201905

GRAY,TRIM1#

58811BBOX, CONSOLE

main58811-37041-B1iXKU700,710,720201107-201212

sub58811-37042

main58811-37042-B1iXKU702,71#,72#..DCRWD201705-201905

main58811-37042-B1iXKU700,710,720201301-201705

58811DCLIP(FOR CONSOLE BOX)

main90467-07191-C1iXKU700,710,720..5F201107-201905

BLACK,TRIM1#

sub90467-07191

58834ACOVER, CONSOLE, LOWER

main58834-37040-B0iXKU700,710,720201107-201905

GRAY,TRIM1#

58910CBOX ASSY, CONSOLE, REAR

main58910-37010-B2iXKU700,710,720201107-201705

main58910-37010-B2iXKU700,710,720..5F201705-201905

58919BPLATE, CONSOLE BOX

main58919-37030-B2iXKU702,71#,72#..6F201705-201905

main58919-37030-B2iXKU700,710,720201107-201705

58921APANEL, REAR CONSOLE, UPPER

main58921-37040-B0iXKU700,710,720..5F201705-201905

main58921-37040-B0iXKU700,710,720201305-201705

main58921-37040-B0iXKU702,71#,72#..DCRWD201905

GRAY,TRIM1#

58941ACOVER, PARKING BRAKE HOLE

main58941-37080-B0iXKU700,710,720..5F201107-201905

GRAY,TRIM1#

main58941-37080-B0iXKU702,71#,72#..DCRWD201905

main58941-37130-B0iXKU702,71#,72#..6F201705-201905

main58941-37130-B0iXKU702,71#,72#..DCWDO201905

GRAY,TRIM1#

main58941-37130-B0iXKU700,710,720201305-201705

9046710188

main90467-10188

9331356014

main93313-56014

13 parts on this diagram · 1 diagram in section
