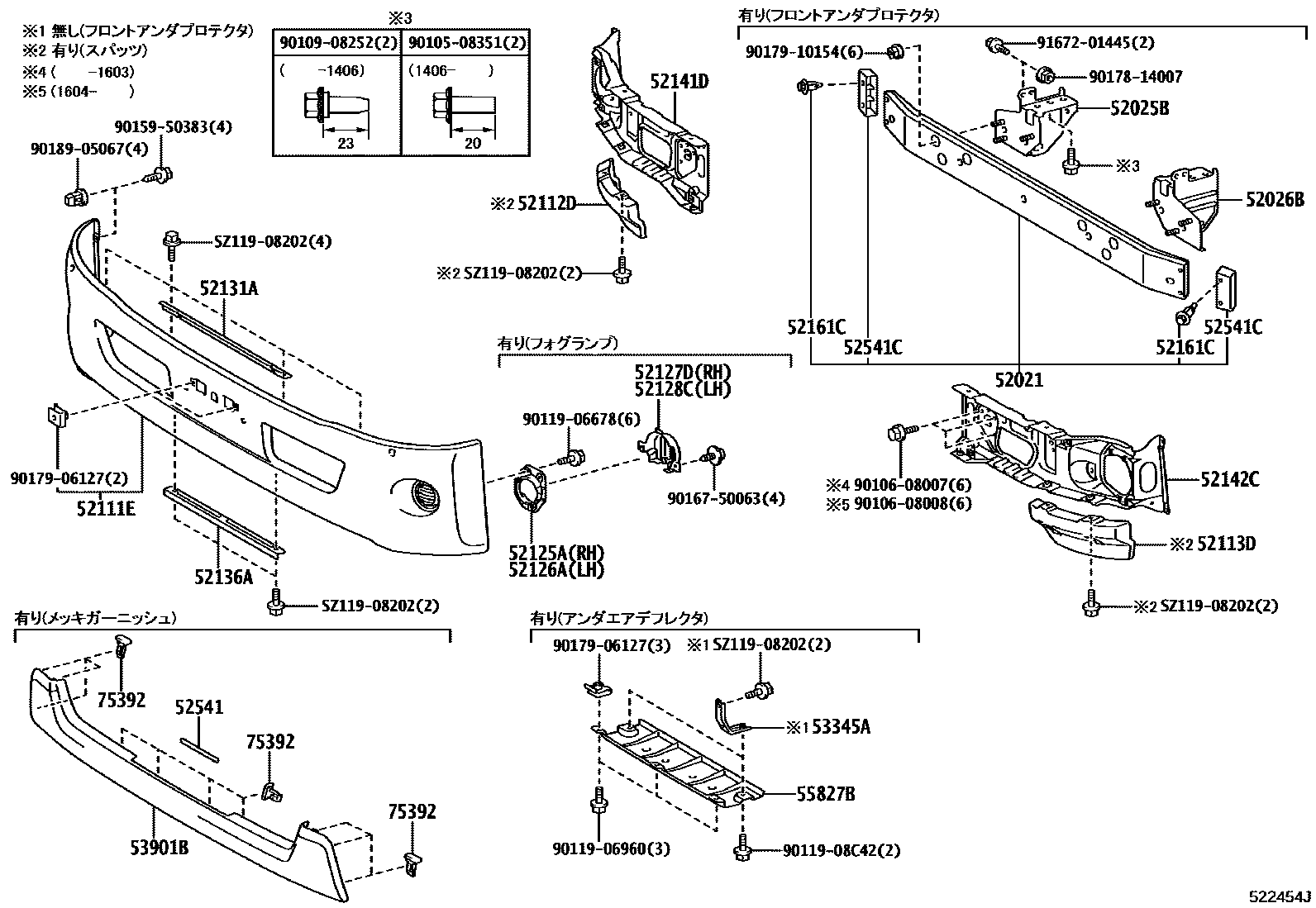

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1��������������(DOP) 0005 1��������������(DOP)

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-37020iXKU700,710,720..30T,35T,40T201107-201405

sub52021-37022

main52021-37022iXKU700,710,720..30T,35T,40T201405-201705

sub52021-37023

main52021-37023iXKU700,710,720..30T,35T,40T201705-201806

sub52021-37080

sub90179-10154

main52021-37080iXKU702,712,722..DCRWD201905

main52021-37080iXKU702,712,722..DCWDO201905

main52021-37080iXKU702,712,722..DCWDO202103

main52021-37080iXKU702,712,722201806-201905

52025BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-37010iXKU700,710,720..30T,35T,40T201107-201406

main52025-37011iXKU702,712,722..DCWDO202103

main52025-37011iXKU702,712,722..DCWDO201905

main52025-37011iXKU702,712,722..DCRWD201905

main52025-37011iXKU702,712,722201406-201905

52026BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-37010iXKU700,710,720..30T,35T,40T201107-201406

sub52026-37011

sub90105-08351

main52026-37011iXKU702,712,722..DCWDO202103

main52026-37011iXKU702,712,722..DCWDO201905

main52026-37011iXKU702,712,722..DCWDO201905

main52026-37011iXKU700,710,720..30T,35T,40T201406-201905

52111EBAR, FRONT BUMPER

main52110-37B80iXKU702,71#,72#..DCWDO202103

main52110-37B80iXKU702,71#,72#201905-202005

main52110-37B80iXKU702,71#,72#..DCRWD202005

main52110-37B90iXKU702,71#,72#201905-202005

main52110-37B90iXKU702,71#,72#..DCWDO202103

main52110-37B90iXKU702,71#,72#..DCRWD202005

main52110-37U10-A0iXKU702,71#,72#..DCWDO202103

main52110-37U10-A0iXKU702,71#,72#..DCRWD202005

main52110-37U10-B1iXKU702,71#,72#..DCWDO202103

main52110-37U10-B1iXKU702,71#,72#..DCRWD202005

main52110-37U10-F0iXKU71#..T4..(20T,30T)..DCRWD..IV3202005

main52110-37U10-F0iXKU71#..T4..(20T,30T)..DCWDO..IV3202103

main52110-37U10-H0iXKU702,71#,72#..DCRWD202005

main52110-37U10-H0iXKU702,71#,72#..DCWDO202103

main52110-37U10-J0iXKU702,71#,72#..DCWDO202103

main52110-37U10-J0iXKU702,71#,72#..DCRWD202005

main52110-37U20-A0iXKU702,71#,72#..DCWDO202103

main52110-37U20-A0iXKU702,71#,72#..DCRWD202005

main52110-37U20-B1iXKU702,71#,72#..DCWDO202103

main52110-37U20-B1iXKU702,71#,72#..DCRWD202005

main52110-37U20-F0iXKU71#..T4..(20T,30T)..DCRWD..IV3202005

main52110-37U20-F0iXKU71#..T4..(20T,30T)..DCWDO..IV3202103

main52110-37U20-H0iXKU702,71#,72#..DCWDO202103

main52110-37U20-H0iXKU702,71#,72#..DCRWD202005

main52110-37U20-J0iXKU702,71#,72#..DCWDO202103

main52110-37U20-J0iXKU702,71#,72#..DCRWD202005

main52110-37U30-A0iXKU702,71#,72#..DCWDO202103

main52110-37U30-A0iXKU702,71#,72#..DCRWD202005

main52110-37U30-B1iXKU702,71#,72#..DCRWD202005

main52110-37U30-B1iXKU702,71#,72#..DCWDO202103

main52110-37U30-F0iXKU71#..T4..(20T,30T)..DCWDO..IV3202103

main52110-37U30-F0iXKU71#..T4..(20T,30T)..DCRWD..IV3202005

main52110-37U30-H0iXKU702,71#,72#..DCRWD202005

main52110-37U30-H0iXKU702,71#,72#..DCWDO202103

main52110-37U30-J0iXKU702,71#,72#..DCRWD202005

main52110-37U30-J0iXKU702,71#,72#..DCWDO202103

main52110-37V00-A0iXKU702,71#,72#..DCWDO202103

main52110-37V00-A0iXKU702,71#,72#..DCRWD202005

main52110-37V00-B1iXKU702,71#,72#..DCRWD202005

main52110-37V00-B1iXKU702,71#,72#..DCWDO202103

main52110-37V00-F0iXKU71#..T4..(20T,30T)..DCRWD..IV3202005

main52110-37V00-F0iXKU71#..T4..(20T,30T)..DCWDO..IV3202103

main52110-37V00-H0iXKU702,71#,72#..DCWDO202103

main52110-37V00-H0iXKU702,71#,72#..DCRWD202005

main52110-37V00-J0iXKU702,71#,72#..DCRWD202005

main52110-37V00-J0iXKU702,71#,72#..DCWDO202103

main52110-37V10-A0iXKU702,71#,72#..DCRWD202005

main52110-37V10-A0iXKU702,71#,72#..DCWDO202103

main52110-37V10-B1iXKU702,71#,72#..DCRWD202005

main52110-37V10-B1iXKU702,71#,72#..DCWDO202103

main52110-37V10-F0iXKU71#..T4..(20T,30T)..DCWDO..IV3202103

main52110-37V10-F0iXKU71#..T4..(20T,30T)..DCRWD..IV3202005

main52110-37V10-H0iXKU702,71#,72#..DCRWD202005

main52110-37V10-H0iXKU702,71#,72#..DCWDO202103

main52110-37V10-J0iXKU702,71#,72#..DCWDO202103

main52110-37V10-J0iXKU702,71#,72#..DCRWD202005

main52110-37V20-A0iXKU702,71#,72#..DCWDO202103

main52110-37V20-A0iXKU702,71#,72#..DCRWD202005

main52110-37V20-B1iXKU702,71#,72#..DCRWD202005

main52110-37V20-B1iXKU702,71#,72#..DCWDO202103

main52110-37V20-F0iXKU71#..T4..(20T,30T)..DCRWD..IV3202005

main52110-37V20-F0iXKU71#..T4..(20T,30T)..DCWDO..IV3202103

main52110-37V20-H0iXKU702,71#,72#..DCWDO202103

main52110-37V20-H0iXKU702,71#,72#..DCRWD202005

main52110-37V20-J0iXKU702,71#,72#..DCRWD202005

main52110-37V20-J0iXKU702,71#,72#..DCWDO202103

main52110-37V30-A0iXKU702,71#,72#..DCWDO202103

main52110-37V30-A0iXKU702,71#,72#..DCRWD202005

main52110-37V30-B1iXKU702,71#,72#..DCWDO202103

main52110-37V30-B1iXKU702,71#,72#..DCRWD202005

main52110-37V30-F0iXKU71#..T4..(20T,30T)..DCWDO..IV3202103

main52110-37V30-F0iXKU71#..T4..(20T,30T)..DCRWD..IV3202005

main52110-37V30-H0iXKU702,71#,72#..DCWDO202103

main52110-37V30-H0iXKU702,71#,72#..DCRWD202005

main52110-37V30-J0iXKU702,71#,72#..DCWDO202103

main52110-37V30-J0iXKU702,71#,72#..DCRWD202005

main52110-37V40-A0iXKU702,71#,72#..DCWDO202103

main52110-37V40-A0iXKU702,71#,72#..DCRWD202005

main52110-37V40-B1iXKU702,71#,72#..DCWDO202103

main52110-37V40-B1iXKU702,71#,72#..DCRWD202005

main52110-37V40-F0iXKU71#..T4..(20T,30T)..DCRWD..IV3202005

main52110-37V40-F0iXKU71#..T4..(20T,30T)..DCWDO..IV3202103

main52110-37V40-H0iXKU702,71#,72#..DCWDO202103

main52110-37V40-H0iXKU702,71#,72#..DCRWD202005

main52110-37V40-J0iXKU702,71#,72#..DCWDO202103

main52110-37V40-J0iXKU702,71#,72#..DCRWD202005

main52110-3VM00iXKU702,71#,72#201905-202005

main52110-3VM00iXKU702,71#,72#..DCWDO202103

main52110-3VM00iXKU702,71#,72#..DCRWD202005

main52110-3VM10iXKU702,71#,72#..DCRWD202005

main52110-3VM10iXKU702,71#,72#201905-202005

main52110-3VM10iXKU702,71#,72#..DCWDO202103

main52110-3VM20-A0iXKU702,71#,72#..DCWDO201905

WHITE,058

main52110-3VM20-B1iXKU702,71#,72#..DCWDO201905

SILVER ME.,199

main52110-3VM20-F0iXKU71#..T4..(20T,30T)..DCWDO..IV3201905

SEINO YELLOW,9E2

main52110-3VM20-H0iXKU702,71#,72#..DCRWD201905

TURQUOISE,766

main52110-3VM20-J0iXKU702,71#,72#..DCWDO201905

BLUE,8P0

main52110-3VM30-A0iXKU702,71#,72#..DCWDO201905

main52110-3VM30-B1iXKU702,71#,72#..DCRWD201905

main52110-3VM30-F0iXKU71#..T4..(20T,30T)..DCWDO..IV3201905

main52110-3VM30-H0iXKU702,71#,72#..DCWDO201905

main52110-3VM30-J0iXKU702,71#,72#..DCWDO201905

main52110-3VM40-A0iXKU702,71#,72#..DCWDO201905

main52110-3VM40-B1iXKU702,71#,72#..DCRWD201905

main52110-3VM40-F0iXKU71#..T4..(20T,30T)..DCWDO..IV3201905

main52110-3VM40-H0iXKU702,71#,72#..DCRWD201905

main52110-3VM40-J0iXKU702,71#,72#..DCWDO201905

main52110-3VM50-A0iXKU702,71#,72#..DCWDO201905

main52110-3VM50-B1iXKU702,71#,72#..DCWDO201905

main52110-3VM50-F0iXKU71#..T4..(20T,30T)..DCRWD..IV3201905

main52110-3VM50-H0iXKU702,71#,72#..DCRWD201905

main52110-3VM50-J0iXKU702,71#,72#..DCRWD201905

main52110-3VM60-A0iXKU702,71#,72#..DCRWD201905

main52110-3VM60-B1iXKU702,71#,72#..DCWDO201905

main52110-3VM60-F0iXKU71#..T4..(20T,30T)..DCWDO..IV3201905

main52110-3VM60-H0iXKU702,71#,72#..DCWDO201905

main52110-3VM60-J0iXKU702,71#,72#..DCRWD201905

main52110-3VM70-A0iXKU702,71#,72#..DCRWD201905

main52110-3VM70-B1iXKU702,71#,72#..DCWDO201905

main52110-3VM70-F0iXKU71#..T4..(20T,30T)..DCRWD..IV3201905

main52110-3VM70-H0iXKU702,71#,72#..DCWDO201905

main52110-3VM70-J0iXKU702,71#,72#..DCWDO201905

main52110-3VM80-A0iXKU702,71#,72#..DCRWD201905

main52110-3VM80-B1iXKU702,71#,72#..DCRWD201905

main52110-3VM80-F0iXKU71#..T4..(20T,30T)..DCWDO..IV3201905

main52110-3VM80-H0iXKU702,71#,72#..DCRWD201905

main52110-3VM80-J0iXKU702,71#,72#..DCRWD201905

main52110-3VM90-A0iXKU702,71#,72#..DCWDO201905

main52110-3VM90-B1iXKU702,71#,72#..DCWDO201905

main52110-3VM90-F0iXKU71#..T4..(20T,30T)..DCRWD..IV3201905

main52110-3VM90-H0iXKU702,71#,72#..DCWDO201905

main52110-3VM90-J0iXKU702,71#,72#..DCRWD201905

main52111-37360iXKU702,712,722201705-201905

main52111-37360iXKU700,710,720201107-201705

main52111-37360iXKU702,71#,72#..6F201705-201905

main52111-37380iXKU700,710,720..5F201705-201905

main52111-37380iXKU702,71#,72#..6F201705-201905

main52111-37380iXKU700,710,720201107-201705

main52111-37390-A0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37390-A0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37390-A0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37390-A0iXKU700,710,720..5F201705-201905

main52111-37390-A0iXKU700,710,720..5F201705-201905

main52111-37390-B0iXKU710..T4..30T..IV3201107-201705

main52111-37390-B0iXKU712..T4..30T..IV3201705-201905

main52111-37390-B0iXKU710..T4..(20T,30T)..IV3201107-201705

main52111-37390-B0iXKU710..T4..(20T,30T)..IV3201107-201705

main52111-37390-B0iXKU710..T4..(20T,30T)..IV3201705-201710

main52111-37390-B1iXKU700,710,720201107-201705

main52111-37390-B1iXKU700,710,720..5F201705-201905

main52111-37390-B1iXKU700,710,720..5F201705-201905

main52111-37390-B1iXKU700,710,720..30T,35T,40T201107-201705

main52111-37390-B1iXKU700,710,720201107-201705

main52111-37390-F0iXKU710..30T..IV3201705-201905

main52111-37390-F0iXKU710..5F..(20T,30T)..IV3201705-201905

main52111-37390-F0iXKU710..(20T,30T)..IV3201107-201705

main52111-37390-F0iXKU710..(20T,30T)..IV3201107-201705

main52111-37390-F0iXKU710..(20T,30T)..IV3201107-201705

main52111-37390-H0iXKU702,712,722201705-201905

main52111-37390-H0iXKU702,71#,72#..6F201705-201905

main52111-37390-H0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37390-H0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37390-H0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37390-J0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37390-J0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37390-J0iXKU700,710,720201107-201705

main52111-37390-J0iXKU702,71#,72#..6F201705-201905

main52111-37390-J0iXKU702,71#,72#..6F201705-201905

main52111-37400-A0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37400-A0iXKU700,710,720201107-201705

main52111-37400-A0iXKU700,710,720201107-201705

main52111-37400-A0iXKU700,710,720..5F201705-201905

main52111-37400-A0iXKU700,710,720..30T,35T,40T201705-201905

main52111-37400-B0iXKU710..T4..(20T,30T)..IV3201107-201705

main52111-37400-B0iXKU710..T4..(20T,30T)..IV3201107-201705

main52111-37400-B0iXKU710..T4..(20T,30T)..IV3201107-201705

main52111-37400-B0iXKU712..T4..30T..IV3201705-201905

main52111-37400-B0iXKU710..T4..(20T,30T)..IV3201705-201710

main52111-37400-B1iXKU700,710,720..30T,35T,40T201107-201705

main52111-37400-B1iXKU700,710,720..30T,35T,40T201107-201705

main52111-37400-B1iXKU700,710,720..30T,35T,40T201107-201705

main52111-37400-B1iXKU702,712,722201705-201905

main52111-37400-B1iXKU702,712,722201705-201905

main52111-37400-F0iXKU71#..6F..(20T,30T)..IV3201705-201905

main52111-37400-F0iXKU71#..6F..(20T,30T)..IV3201705-201905

main52111-37400-F0iXKU710..(20T,30T)..IV3201107-201705

main52111-37400-F0iXKU710..30T..IV3201107-201705

main52111-37400-F0iXKU710..30T..IV3201107-201705

main52111-37400-H0iXKU700,710,720201107-201705

main52111-37400-H0iXKU700,710,720..5F201705-201905

main52111-37400-H0iXKU700,710,720..30T,35T,40T201705-201905

main52111-37400-H0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37400-H0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37400-J0iXKU702,712,722201705-201905

main52111-37400-J0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37400-J0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37400-J0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37400-J0iXKU700,710,720..30T,35T,40T201705-201905

main52111-37410-A0iXKU700,710,720201107-201705

main52111-37410-A0iXKU700,710,720201107-201705

main52111-37410-A0iXKU700,710,720201107-201705

main52111-37410-A0iXKU702,71#,72#..6F201705-201905

main52111-37410-A0iXKU702,71#,72#..6F201705-201905

main52111-37410-B0iXKU710..T4..30T..IV3201107-201705

main52111-37410-B0iXKU710..T4..30T..IV3201107-201705

main52111-37410-B0iXKU710..T4..30T..IV3201107-201705

main52111-37410-B0iXKU710..T4..30T..IV3201705-201905

main52111-37410-B0iXKU710..T4..(20T,30T)..IV3201705-201710

main52111-37410-B1iXKU700,710,720..30T,35T,40T201705-201905

main52111-37410-B1iXKU700,710,720..30T,35T,40T201705-201905

main52111-37410-B1iXKU700,710,720201107-201705

main52111-37410-B1iXKU700,710,720201107-201705

main52111-37410-B1iXKU700,710,720201107-201705

main52111-37410-F0iXKU710..30T..IV3201107-201705

main52111-37410-F0iXKU710..30T..IV3201107-201705

main52111-37410-F0iXKU710..(20T,30T)..IV3201107-201705

main52111-37410-F0iXKU710..30T..IV3201705-201905

main52111-37410-F0iXKU710..30T..IV3201705-201905

main52111-37410-H0iXKU700,710,720..5F201705-201905

main52111-37410-H0iXKU700,710,720..5F201705-201905

main52111-37410-H0iXKU700,710,720201107-201705

main52111-37410-H0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37410-H0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37410-J0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37410-J0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37410-J0iXKU702,712,722201705-201905

main52111-37410-J0iXKU702,712,722201705-201905

main52111-37410-J0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37420-A0iXKU700,710,720201107-201705

main52111-37420-A0iXKU700,710,720..5F201705-201905

main52111-37420-A0iXKU700,710,720..30T,35T,40T201705-201905

main52111-37420-A0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37420-A0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37420-B0iXKU710..T4..(20T,30T)..IV3201107-201705

main52111-37420-B0iXKU710..T4..30T..IV3201107-201705

main52111-37420-B0iXKU710..T4..30T..IV3201107-201705

main52111-37420-B0iXKU712..T4..30T..IV3201705-201905

main52111-37420-B0iXKU710..T4..(20T,30T)..IV3201705-201710

main52111-37420-B1iXKU702,71#,72#..6F201705-201905

main52111-37420-B1iXKU702,71#,72#..6F201705-201905

main52111-37420-B1iXKU700,710,720201107-201705

main52111-37420-B1iXKU700,710,720201107-201705

main52111-37420-B1iXKU700,710,720201107-201705

main52111-37420-F0iXKU710..30T..IV3201705-201905

main52111-37420-F0iXKU710..(20T,30T)..IV3201107-201705

main52111-37420-F0iXKU710..(20T,30T)..IV3201107-201705

main52111-37420-F0iXKU710..(20T,30T)..IV3201107-201705

main52111-37420-F0iXKU710..30T..IV3201705-201905

main52111-37420-H0iXKU700,710,720..30T,35T,40T201705-201905

main52111-37420-H0iXKU700,710,720..5F201705-201905

main52111-37420-H0iXKU700,710,720201107-201705

main52111-37420-H0iXKU700,710,720201107-201705

main52111-37420-H0iXKU700,710,720201107-201705

main52111-37420-J0iXKU700,710,720201107-201705

main52111-37420-J0iXKU700,710,720201107-201705

main52111-37420-J0iXKU700,710,720..30T,35T,40T201107-201705

main52111-37420-J0iXKU700,710,720..30T,35T,40T201705-201905

main52111-37420-J0iXKU700,710,720..30T,35T,40T201705-201905

main52111-37570iXKU700,710,720..5F201705-201905

main52111-37580iXKU702,712,722201705-201905

main52111-37580iXKU702,71#,72#..6F201705-201905

main52111-37590-A0iXKU702,712,722201705-201905

main52111-37590-A0iXKU702,712,722201705-201905

main52111-37590-B0iXKU712..T4..30T..IV3201705-201905

main52111-37590-B0iXKU710..T4..(20T,30T)..IV3201705-201710

main52111-37590-B1iXKU700,710,720..5F201705-201905

main52111-37590-B1iXKU700,710,720..5F201705-201905

main52111-37590-F0iXKU712..30T..IV3201705-201905

main52111-37590-F0iXKU710..30T..IV3201705-201905

main52111-37590-H0iXKU702,71#,72#..6F201705-201905

main52111-37590-H0iXKU702,71#,72#..6F201705-201905

main52111-37590-J0iXKU700,710,720..5F201705-201905

main52111-37590-J0iXKU702,712,722201705-201905

main52111-37600-A0iXKU702,71#,72#..6F201705-201905

main52111-37600-A0iXKU702,712,722201705-201905

main52111-37600-B0iXKU710..T4..30T..IV3201705-201905

main52111-37600-B0iXKU710..T4..(20T,30T)..IV3201705-201710

main52111-37600-B1iXKU702,712,722201705-201905

main52111-37600-B1iXKU702,712,722201705-201905

main52111-37600-F0iXKU712..30T..IV3201705-201905

main52111-37600-F0iXKU71#..6F..(20T,30T)..IV3201705-201905

main52111-37600-H0iXKU702,712,722201705-201905

main52111-37600-H0iXKU700,710,720..30T,35T,40T201705-201905

main52111-37600-J0iXKU702,712,722201705-201905

main52111-37600-J0iXKU702,712,722201705-201905

main52111-37610-A0iXKU700,710,720..30T,35T,40T201705-201905

main52111-37610-A0iXKU702,71#,72#..6F201705-201905

main52111-37610-B0iXKU712..T4..30T..IV3201705-201905

main52111-37610-B0iXKU710..T4..(20T,30T)..IV3201705-201710

main52111-37610-B1iXKU700,710,720..30T,35T,40T201705-201905

main52111-37610-B1iXKU700,710,720..5F201705-201905

main52111-37610-F0iXKU710..30T..IV3201705-201905

main52111-37610-F0iXKU71#..6F..(20T,30T)..IV3201705-201905

main52111-37610-H0iXKU700,710,720..30T,35T,40T201705-201905

main52111-37610-H0iXKU702,712,722201705-201905

main52111-37610-J0iXKU700,710,720..30T,35T,40T201705-201905

main52111-37610-J0iXKU702,71#,72#..6F201705-201905

main52111-37620-A0iXKU702,712,722201705-201905

main52111-37620-A0iXKU700,710,720..30T,35T,40T201705-201905

main52111-37620-B0iXKU710..T4..(20T,30T)..IV3201705-201710

main52111-37620-B0iXKU710..T4..30T..IV3201705-201905

main52111-37620-B1iXKU700,710,720..5F201705-201905

main52111-37620-B1iXKU702,71#,72#..6F201705-201905

main52111-37620-F0iXKU712..30T..IV3201705-201905

main52111-37620-F0iXKU71#..6F..(20T,30T)..IV3201705-201905

main52111-37620-H0iXKU700,710,720..5F201705-201905

main52111-37620-H0iXKU700,710,720..5F201705-201905

main52111-37620-J0iXKU702,712,722201705-201905

main52111-37620-J0iXKU700,710,720..30T,35T,40T201705-201905

52112DEXTENSION, FRONT BUMPER, RH

main52112-37130iXKU702,71#,72#..6F201107-201905

52113DEXTENSION, FRONT BUMPER, LH

main52113-37050iXKU700,710,720..5F201107-201905

52125ABRACKET, FOG LAMP MOUNTING, RH

main52125-37020iXKU700,710,720201107-201705

52126ABRACKET, FOG LAMP MOUNTING, LH

main52126-37020iXKU700,710,720201107-201705

52127DCOVER, FRONT BUMPER HOLE, RH

main81610-37180iXKU700,710,720201107-201705

52128CCOVER, FRONT BUMPER HOLE, LH

main81620-37180iXKU700,710,720201107-201705

52131AREINFORCEMENT, FRONT BUMPER

main52131-37110iXKU700,710,720201107-201704

sub52131-37111

main52131-37111iXKU700,710,720..5F201705-201905

52136AREINFORCEMENT, FRONT BUMPER

main52136-37010iXKU700,710,720201107-201803

sub52136-37011

main52136-37011iXKU700,710,720..5F201804-201905

52141DSTAY, FRONT BUMPER, RH

main52141-37220iXKU700,710,720201107-201111

sub52141-37221

main52141-37221iXKU702,71#,72#..6F201112-201811

sub52141-37222

main52141-37222iXKU702,71#,72#..DCWDO201812-201905

52142CSTAY, FRONT BUMPER, LH

main52142-37200iXKU700,710,720201107-201111

sub52142-37201

main52142-37201iXKU700,710,720..5F201112-201811

sub52142-37202

main52142-37202iXKU702,71#,72#..6F201812-201905

52161CPIECE, FRONT BUMPER

main52161-16010iXKU702,712,722..DCWDO202103

main52161-16010iXKU702,712,722..DCWDO201905

main52161-16010iXKU702,712,722..DCWDO201905

main52161-16010iXKU702,712,722201107-201905

52541PROTECTOR, FRONT BUMPER

main52541-35030iXKU702,712,722..DCWDO201905

main52541-35030iXKU702,712,722..DCWDO201705-201905

main52541-35030iXKU702,712,722..DCWDO201905

main52541-35030iXKU702,712,722..DCWDO201905

main52541-35030iXKU702,712,722..DCWDO201705-201905

main52541-35030iXKU702,712,722..DCWDO201107-201905

main52541-35030iXKU702,712,722..DCWDO201905

main52541-35030iXKU702,712,722..DCWDO201107-201905

main52541-35030iXKU702,71#,72#..6F201705-201905

main52541-35030iXKU702,71#,72#..6F201705-201905

main52541-35030iXKU702,71#,72#..6F201705-201905

main52541-35030iXKU702,71#,72#..6F201705-201905

main52541-35030iXKU700,710,720..30T,35T,40T201107-201705

main52541-35030iXKU700,710,720..30T,35T,40T201107-201705

main52541-35030iXKU700,710,720..30T,35T,40T201107-201705

main52541-35030iXKU700,710,720..30T,35T,40T201107-201705

52541CPROTECTOR, FRONT BUMPER, NO.1

main52541-37010iXKU702,712,722..DCWDO201905

main52541-37010iXKU702,712,722..DCWDO201905

main52541-37010iXKU702,712,722..DCWDO202103

main52541-37010iXKU702,712,722201107-201905

53345ABRACKET, AIR DEFLECTOR, NO.2 RH

main53345-37040iXKU700,710,720201107-201905

53901BPANEL SUB-ASSY, FRONT VALANCE

main53901-37010iXKU700,710,720..5F201107-201905

main53901-37010iXKU700,710,720..5F201107-201905

main53901-37010iXKU700,710,720..30T,35T,40T201705-201905

main53901-37010iXKU700,710,720..30T,35T,40T201705-201905

main53901-37010iXKU700,710,720..30T,35T,40T201705-201905

main53901-37010iXKU700,710,720..30T,35T,40T201705-201905

main53901-37010iXKU700,710,720..30T,35T,40T201705-201905

main53901-37010iXKU700,710,720..30T,35T,40T201705-201905

main53901-37010iXKU702,712,722..DCRWD201905

main53901-37010iXKU702,712,722..DCRWD201905

main53901-37010iXKU702,712,722..DCRWD201905

main53901-37010iXKU702,712,722..DCRWD201905

main53901-37010iXKU702,712,722..DCWDO202103

main53901-37010iXKU702,712,722..DCWDO202103

main53901-37010iXKU702,712,722..DCWDO202103

main53901-37010iXKU702,712,722..DCWDO202103

main53901-37010iXKU702,712,722..DCWDO202103

main53901-37010iXKU702,712,722..DCWDO202103

main53901-37010iXKU702,712,722..DCWDO202103

main53901-37010iXKU702,712,722..DCWDO202103

main53901-37010iXKU700,710,720..30T,35T,40T201107-201705

main53901-37010iXKU700,710,720..30T,35T,40T201107-201705

main53901-37010iXKU700,710,720..30T,35T,40T201107-201705

main53901-37010iXKU700,710,720..30T,35T,40T201107-201705

55827BDUCT, VENTILATOR AIR GUIDE

main55827-37070iXKU702,71#,72#..DCWDO201107-201905

75392RETAINER, OUTSIDE MOULDING

main75392-35220iXKU702,71#,72#..DCWDO201107-201905

main75392-35220iXKU702,71#,72#..DCWDO201905

main75392-35220iXKU702,71#,72#..DCWDO201905

main75392-35220iXKU702,71#,72#..DCWDO201107-201905

main75392-35220iXKU702,712,722..DCRWD201905

main75392-35220iXKU702,71#,72#..DCWDO201705-201905

main75392-35220iXKU702,71#,72#..DCWDO201905

main75392-35220iXKU702,71#,72#..DCWDO201705-201905

main75392-35220iXKU700,710,720..30T,35T,40T201107-201705

main75392-35220iXKU700,710,720..30T,35T,40T201107-201705

main75392-35220iXKU700,710,720..30T,35T,40T201107-201705

main75392-35220iXKU700,710,720..30T,35T,40T201107-201705

main75392-35220iXKU700,710,720..5F201705-201905

main75392-35220iXKU700,710,720..5F201705-201905

main75392-35220iXKU700,710,720..5F201705-201905

main75392-35220iXKU700,710,720..5F201705-201905

9010508351

main90105-08351

9010608007

main90106-08007

9010608008

main90106-08008

9010908252

main90109-08252

9011906678

main90119-06678

9011906960

main90119-06960

9011908C42

main90119-08C42

9015950383

main90159-50383

9016750063

main90167-50063

9017814007

main90178-14007

9017906127

main90179-06127

9017910154

main90179-10154

9018905067

main90189-05067

9167201445

main91672-01445

SZ11908202

mainSZ119-08202

36 parts on this diagram · 5 diagrams in section
