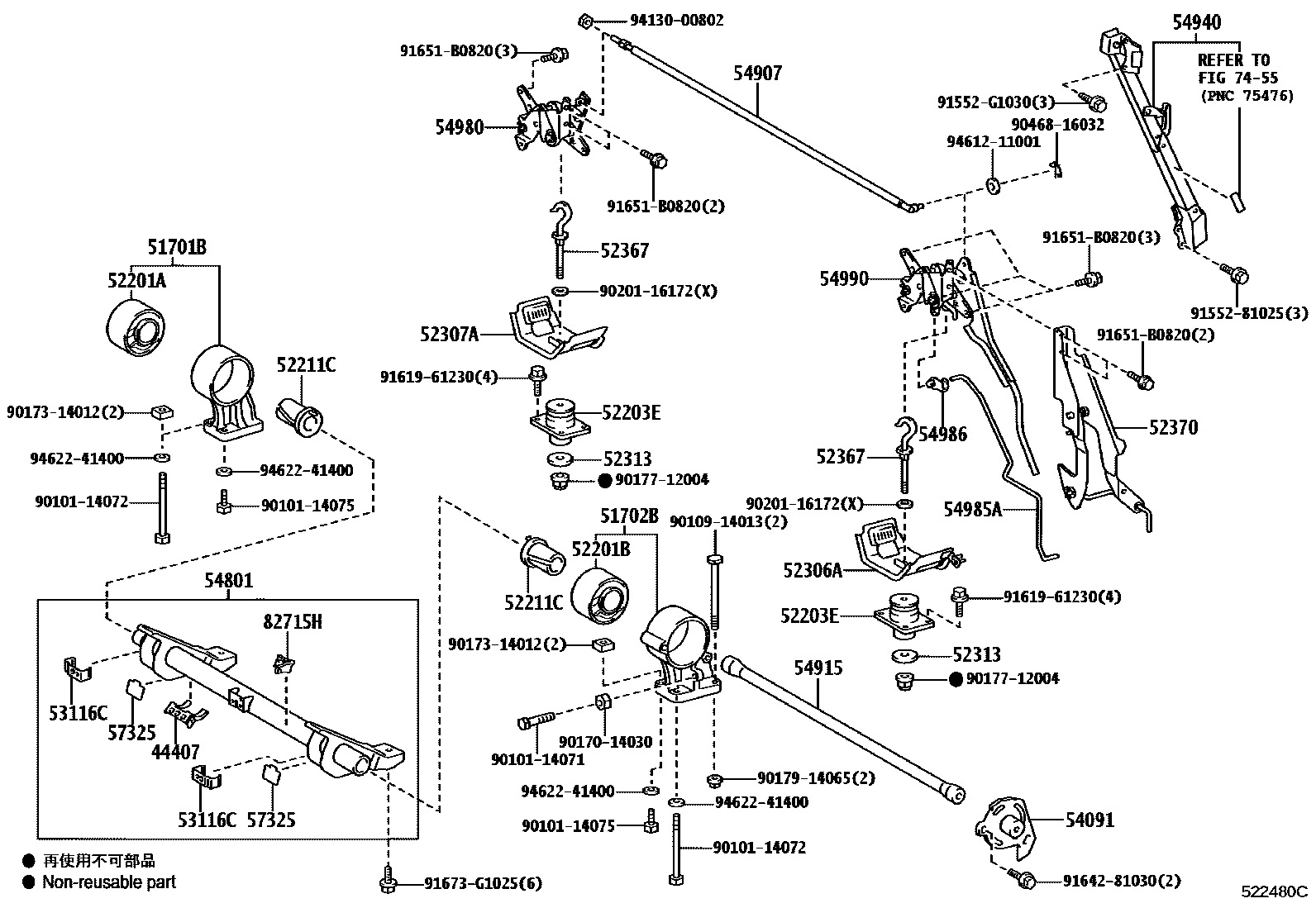

CAB MOUNTING & BODY MOUNTING

44407BRACKET SUB-ASSY, PRESSURE TUBE SUPPORT

main44407-37010iXKU700,710,720201107-201905

51701BBRACKET SUB-ASSY, CAB FRONT MOUNTING, RH

main51701-37380iXKU700,710,720201107-201905

51702BBRACKET SUB-ASSY, CAB FRONT MOUNTING, LH

main51702-37080iXKU700,710,720201107-201905

52201ACUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-37110iXKU700,710,720..5F201705-201905

52201BCUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-37110iXKU700,710,720..5F201705-201905

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-37080iXKU700,710,720201107-201905

52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)

main52211-37030iXKU700,710,720201107-201905

52306ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1

main52306-37090iXKU700,710,720201107-201905

52307ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2

main52307-37030iXKU700,710,720201107-201905

52313STOPPER, CAB REAR MOUNTING REBOUND

main52313-37040iXKU700,710,720201107-201905

52367HOOK, CAB REAR MOUNTING

main52367-37060iXKU700,710,720201107-201905

52370LATCH ASSY, CAB MOUNTING SAFETY

main52370-37010iXKU700,710,720201107-201302

sub52370-37011

main52370-37011iXKU700,710,720201303-201905

53116CBRACKET, RADIATOR GRILLE, NO.2

main53116-37030iXKU700,710,720201107-201905

54091ARM SUB-ASSY, TILT CAB SPRING SUPPORT, NO.1

main54091-37050iXKU700,710,720201107-201112

sub54091-37051

main54091-37051iXKU700,710,720201201-201905

54801TUBE SUB-ASSY, TILT CAB, NO.1

main54801-37230iXKU700,710,720201107-201905

54907PIPE SUB-ASSY, TILT CAB LOCK CONNECTING

main54907-37040iXKU700,710,720201107-201905

54915SPRING, TILT CAB, NO.1

main54915-37200iXKU700,710,720201107-201904

sub54915-37240

main54915-37240iXKU702,71#,72#..DCRWD201905

54940STAY ASSY, TILT CAB

main54940-37271iXKU700,710,720201107-201702

sub54940-37272

main54940-37272iXKU700,710,720201703-201910

sub54940-37273

main54940-37273iXKU702,71#,72#..DCRWD201911

54980LOCK ASSY, TILT CAB MOUNTING, RH

main54980-37040iXKU700,710,720201107-201905

54985AROD, TILT CAB LOCK HANDLE

main54985-37060iXKU700,710,720201107-201905

54986SUPPORT, TILT CAB LOCK

main54986-37030iXKU700,710,720201107-201905

54990LOCK ASSY, TILT CAB MOUNTING, LH

main54990-37080iXKU700,710,720201107-201310

sub54990-37081

main54990-37081iXKU700,710,720201311-201905

57325REINFORCEMENT, FRONT MOUNTING

main57325-37010iXKU700,710,720201107-201905

7455

82715HBRACKET, WIRING HARNESS CLAMP

main82715-3VD00iXKU700,710,720201107-201905

9010114071

main90101-14071

9010114072

main90101-14072

9010114075

main90101-14075

9010914013

main90109-14013

9017014030

main90170-14030

9017314012

main90173-14012

9017712004

main90177-12004

9017914065

main90179-14065

9020116172

main90201-16172

9046816032

main90468-16032

9155281025

main91552-81025

91552G1030

main91552-G1030

9161961230

main91619-61230

9164281030

main91642-81030

91651B0820

main91651-B0820

91673G1025

main91673-G1025

9413000802

main94130-00802

9461211001

main94612-11001

9462241400

main94622-41400

44 parts on this diagram · 1 diagram in section
